61 31 080 Removing and installing / replacing switch from hazard warning lights

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out panel and lift off.

Press down switch and remove from bottom of oddments tray. Pull off connectors.

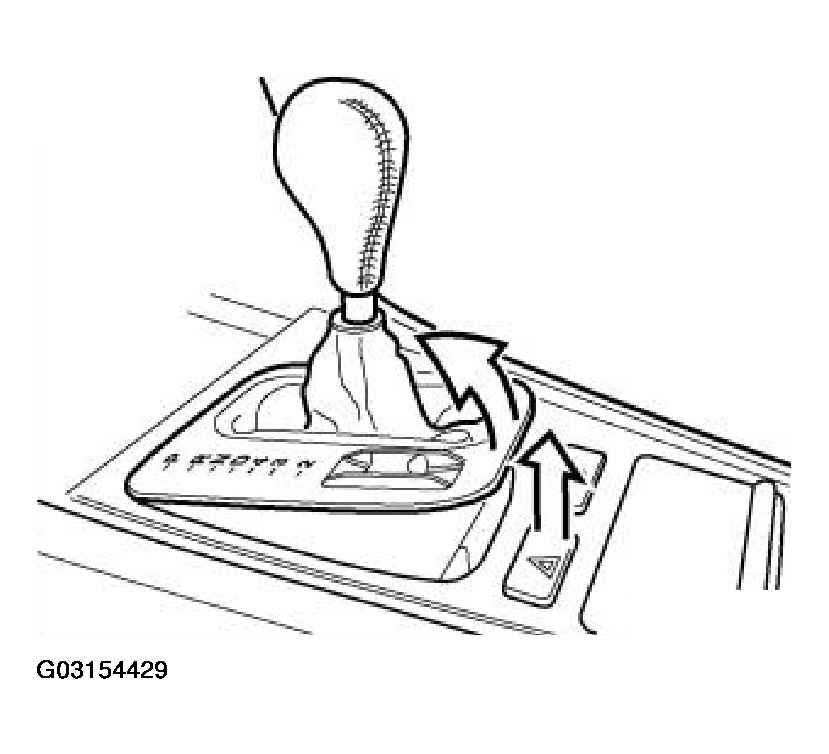

Fig 1: Removing And Installing / Replacing Switch From Hazard Warning Lights

Courtesy of BMW OF NORTH AMERICA, INC.
