61 31 070 Removing and installing/replacing switch for foglights and rear foglights

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove frame from instrument carrier, refer to INSTRUMENT CARRIER.. .

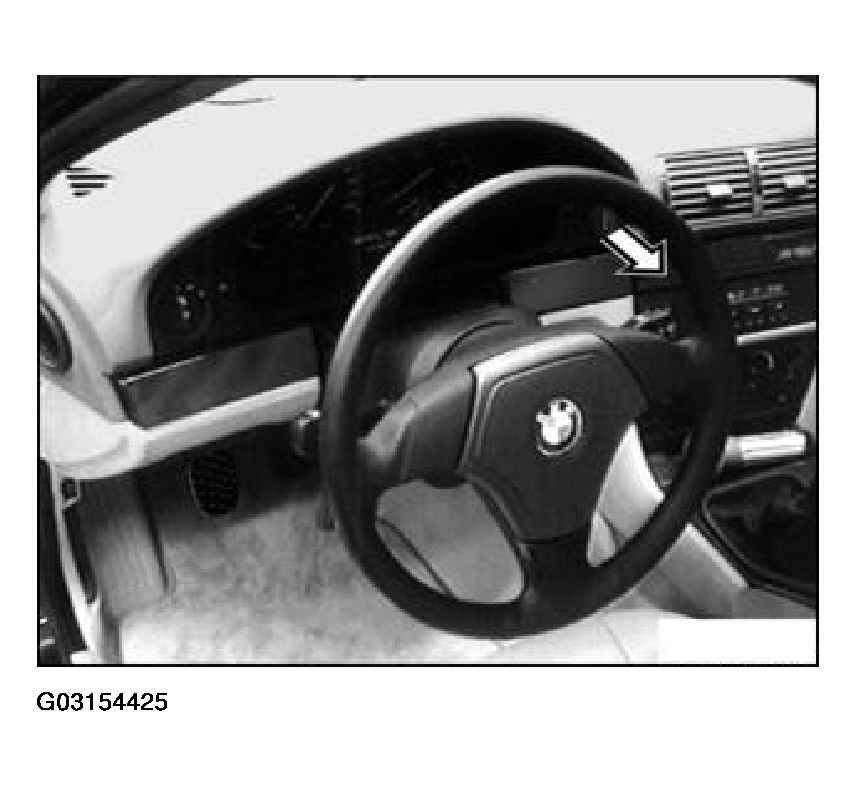

Remove button from foglight switch.

Fig 1: Removing Button From Foglight Switch

Courtesy of BMW OF NORTH AMERICA, INC.

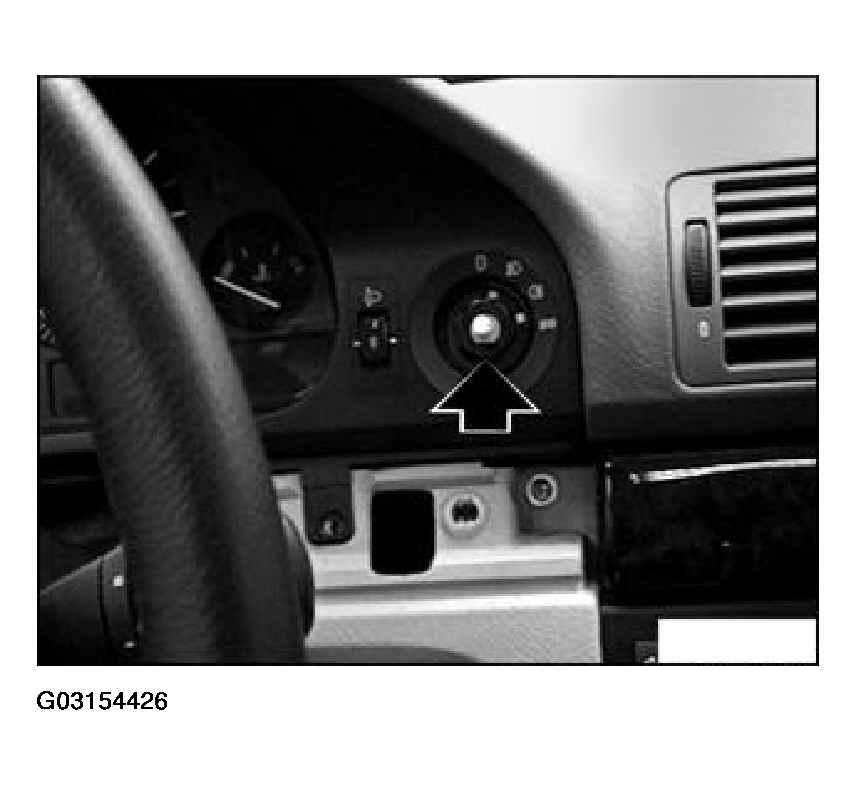

Remove nuts.

Fig 2: Removing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

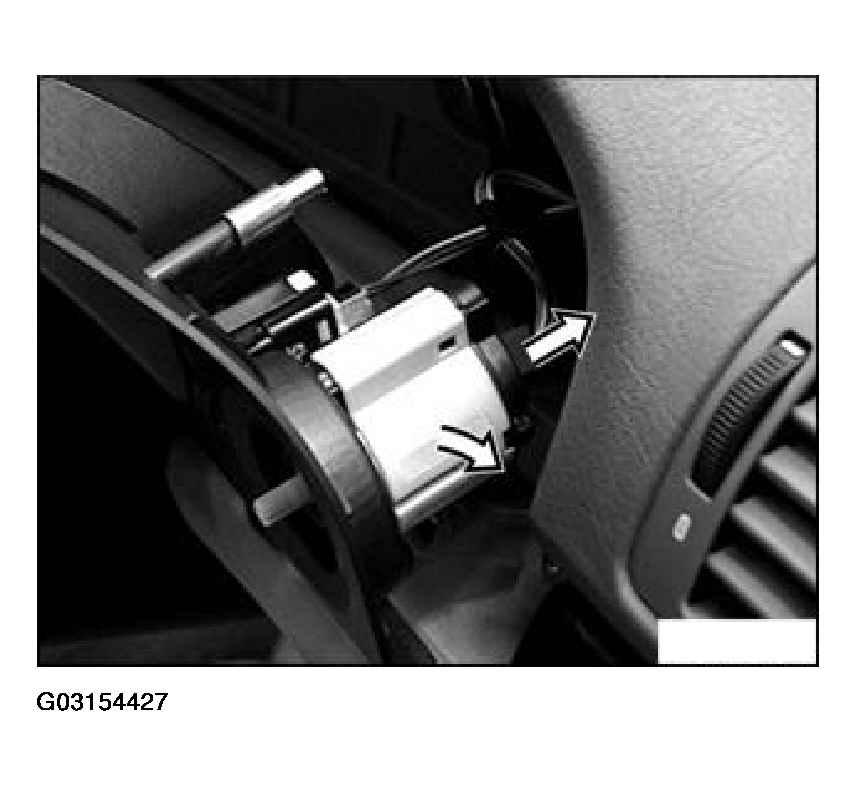

Remove connector and press foglight switch backwards to remove.

Fig 3: Removing Foglight Switch And Connector

Courtesy of BMW OF NORTH AMERICA, INC.
