61 31 047 Removing and installing/replacing dimmer switch for instrument panel lighting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing frame for instrument carrier, refer to INSTRUMENT CARRIER.. .

Remove connector and press dimmer switch forwards to remove.

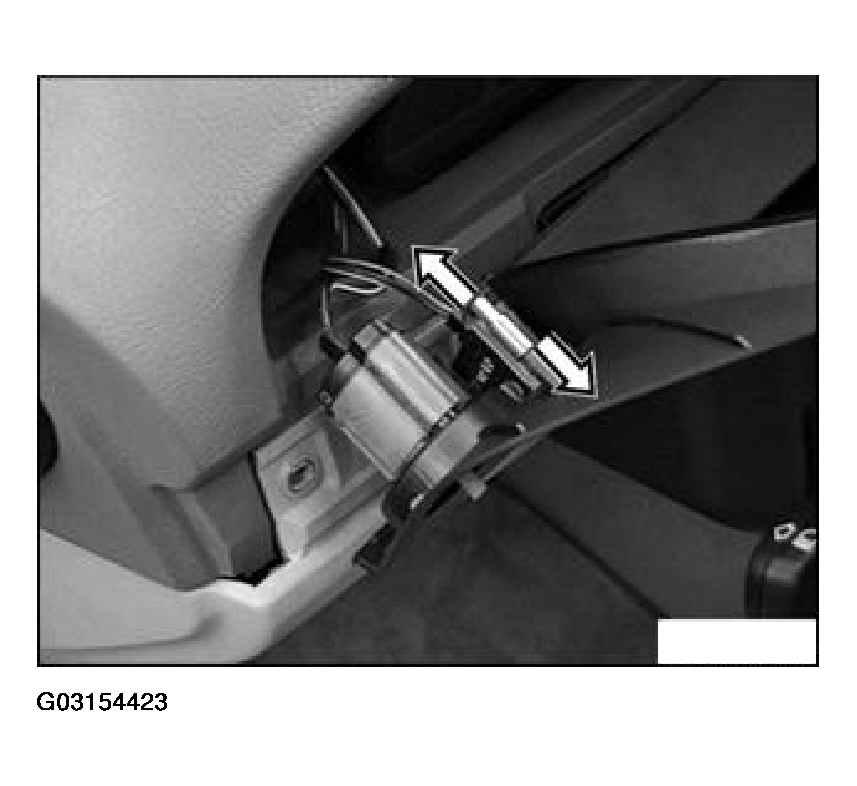

Fig 1: Removing And Installing/Replacing Dimmer Switch For Instrument Panel Lighting

Courtesy of BMW OF NORTH AMERICA, INC.
