61 31 035 Removing and installing/replacing steering column adjustment lever
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Version up to 09/98:
Extend steering column up to stop and move downwards. Open steering column casing at bottom, refer to STEERING COLUMNS .
Open steering column casing at top, refer to STEERING COLUMNS .

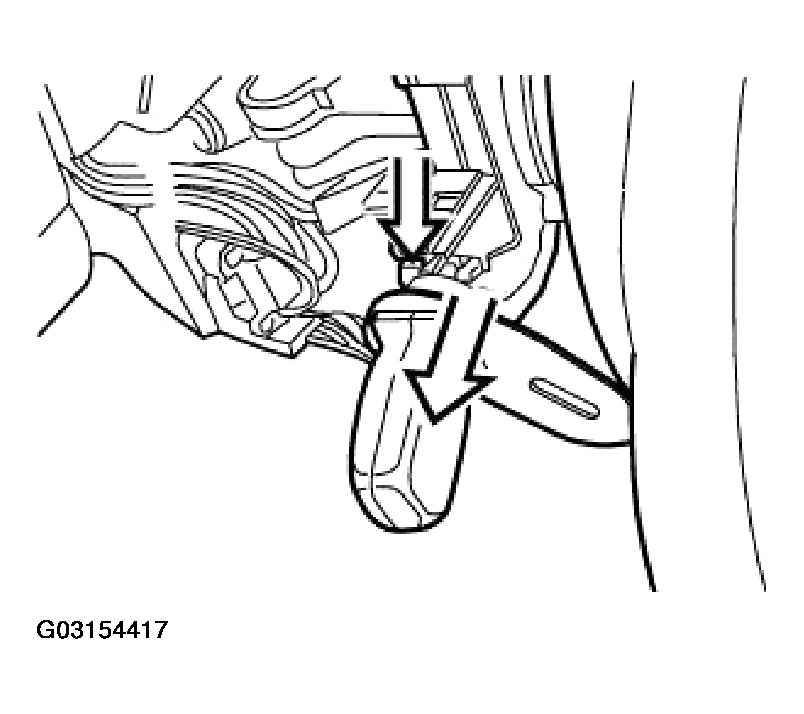

Press down clips and remove switch.

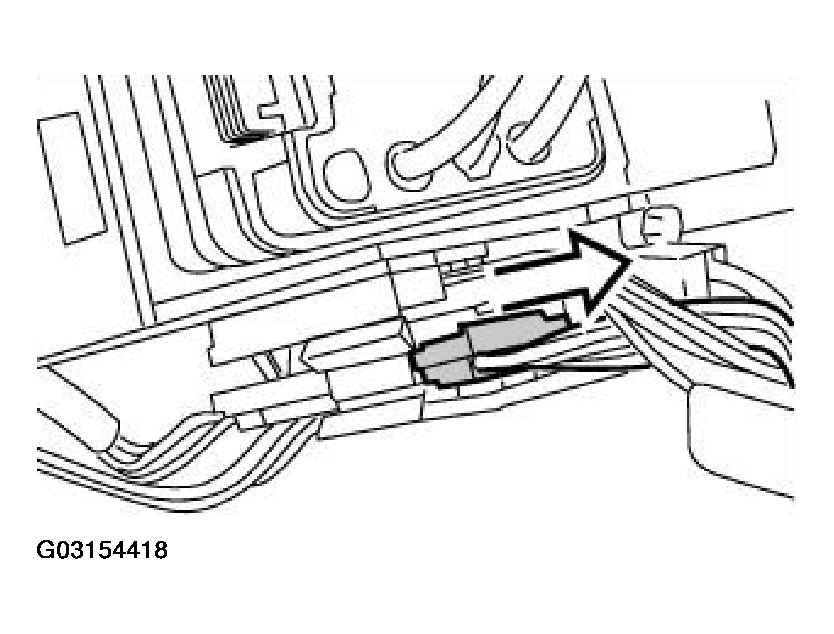

Pull off connectors.
Version from 09/98:
Remove lower section of steering column casing, refer to STEERING COLUMNS .

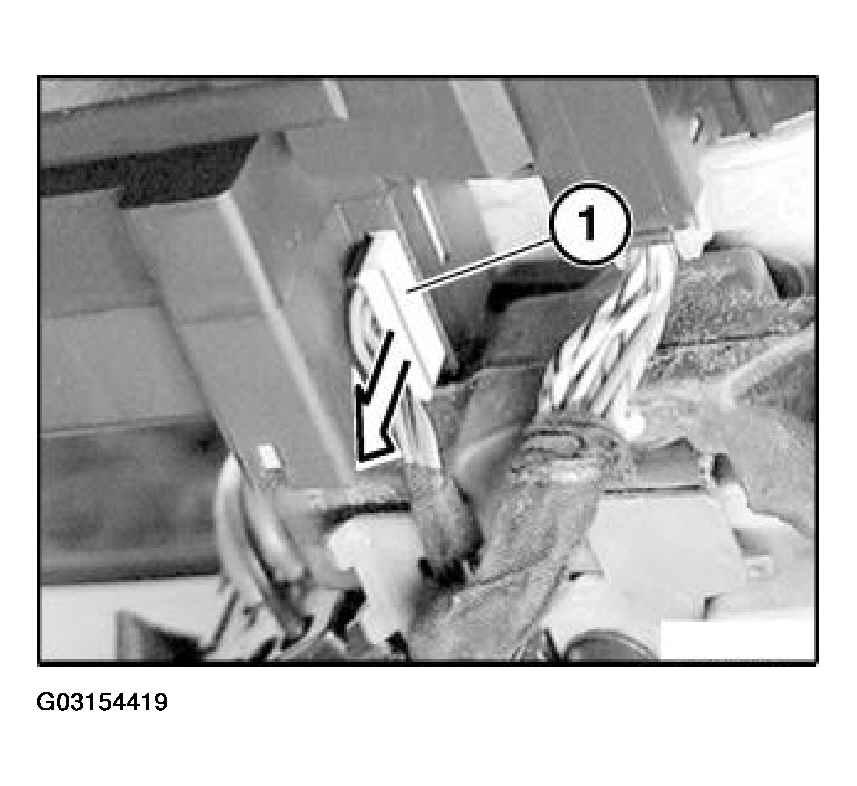

Disconnect plug connection (1) in direction of arrow.

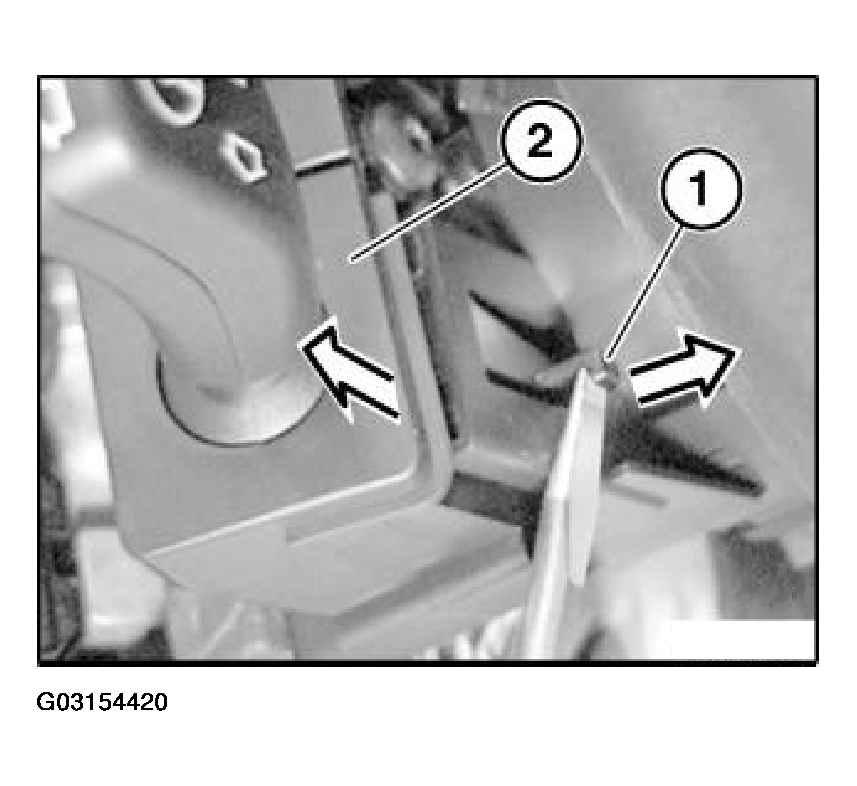

Raise lock (1) with a screwdriver in direction of arrow and pull out switch for steering column adjustment (2) in direction of arrow.
