61 31 028 Removing and installing/replacing light switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing frame for instrument carrier, refer to INSTRUMENT CARRIER..INSTRUMENT CARRIER .

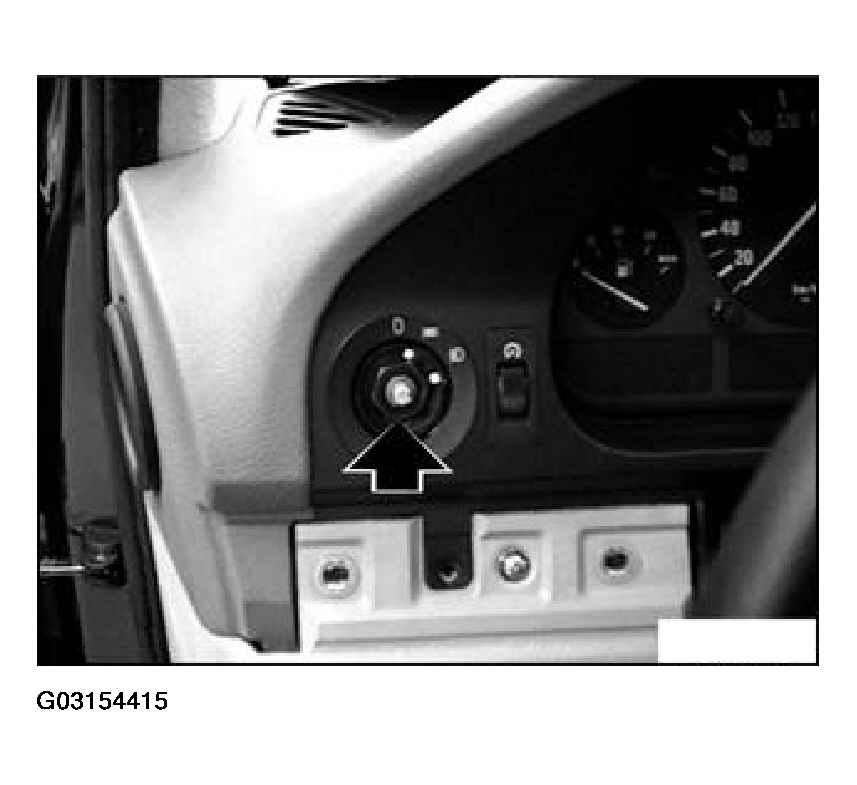

Remove button from light switch.

Fig 1: Removing Button From Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove nuts.

Fig 2: Removing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

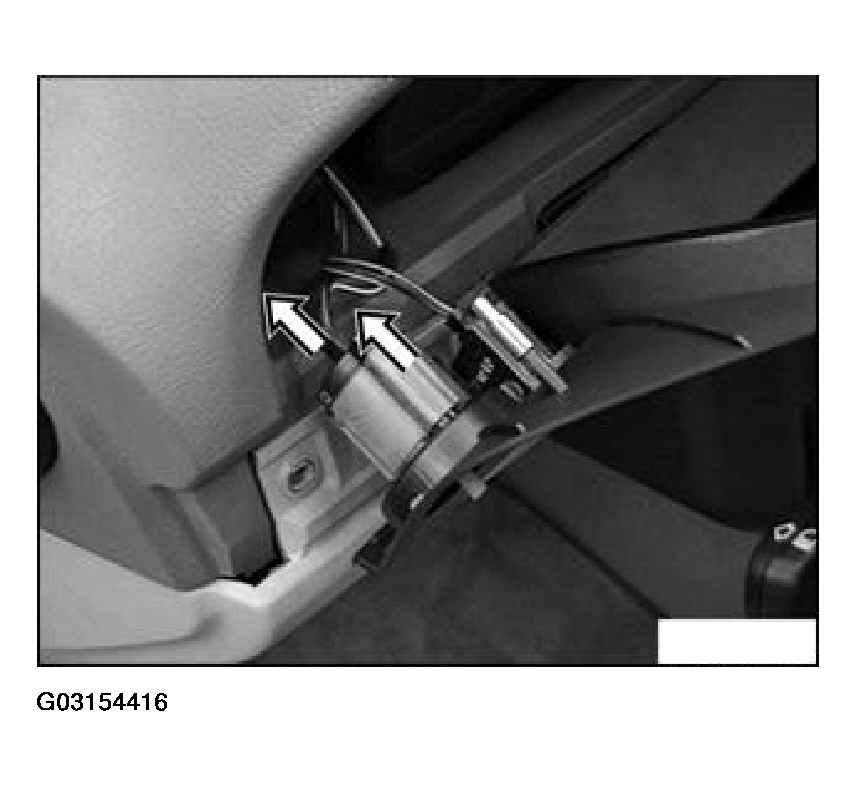

Remove connector and press light switch backwards to remove.

Fig 3: Removing Light Switch And Connector

Courtesy of BMW OF NORTH AMERICA, INC.
