61 31 020 Removing and installing the ignition switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bottom section of the steering column panelling, refer to STEERING COLUMNS .

Unlock connector from ignition starter switch and remove.

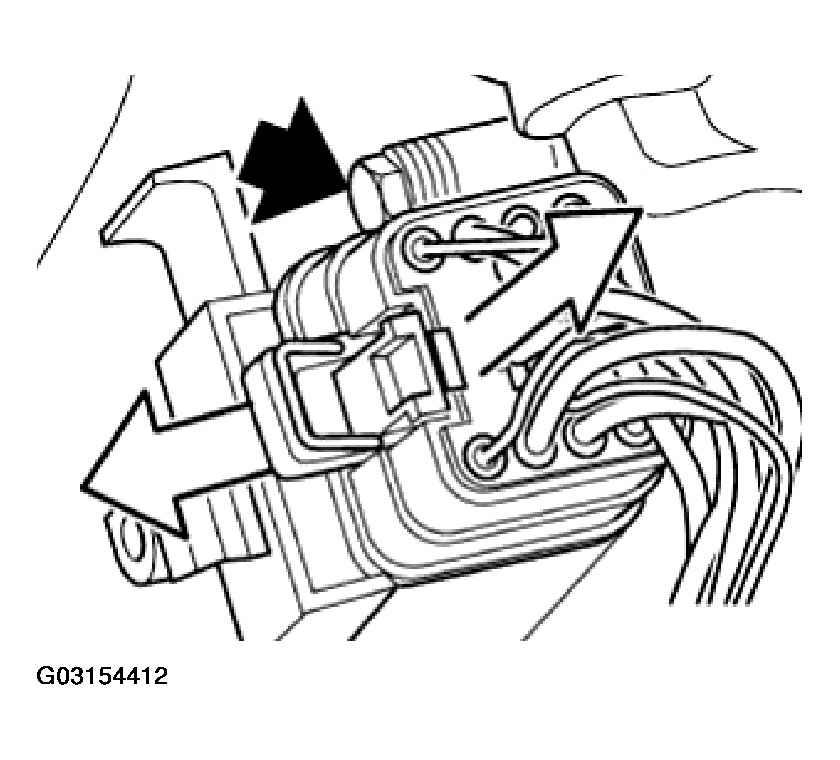

Fig 1: Unlocking Connector From Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective paint and unfasten grub screws. Remove ignition starter switch.

Installation note.

Secure headless screws with varnish.

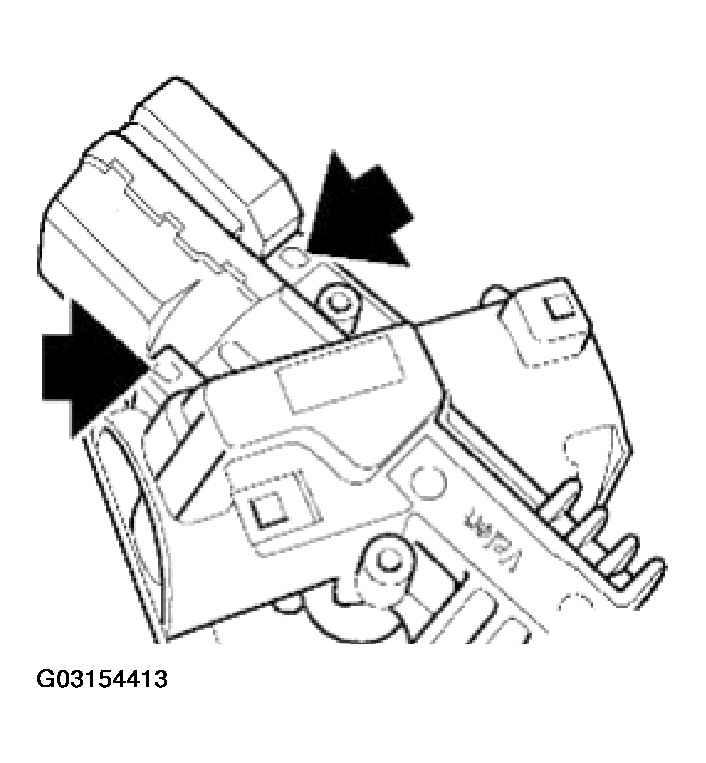

Fig 2: Removing Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.
