Cutting Optical Fibre To Length

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

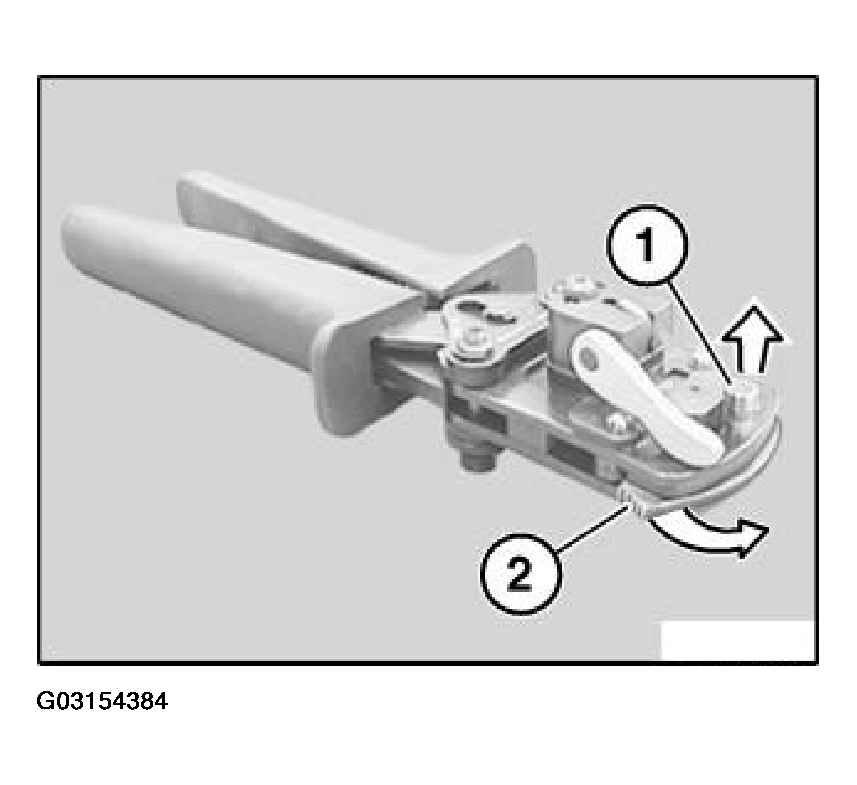

Fig 1: Identifying Direction For Folding Blade Retaining Link
G03154384Courtesy of BMW OF NORTH AMERICA, INC.
WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

Installation:

Make sure blade (1) is correctly seated on locating points (2).

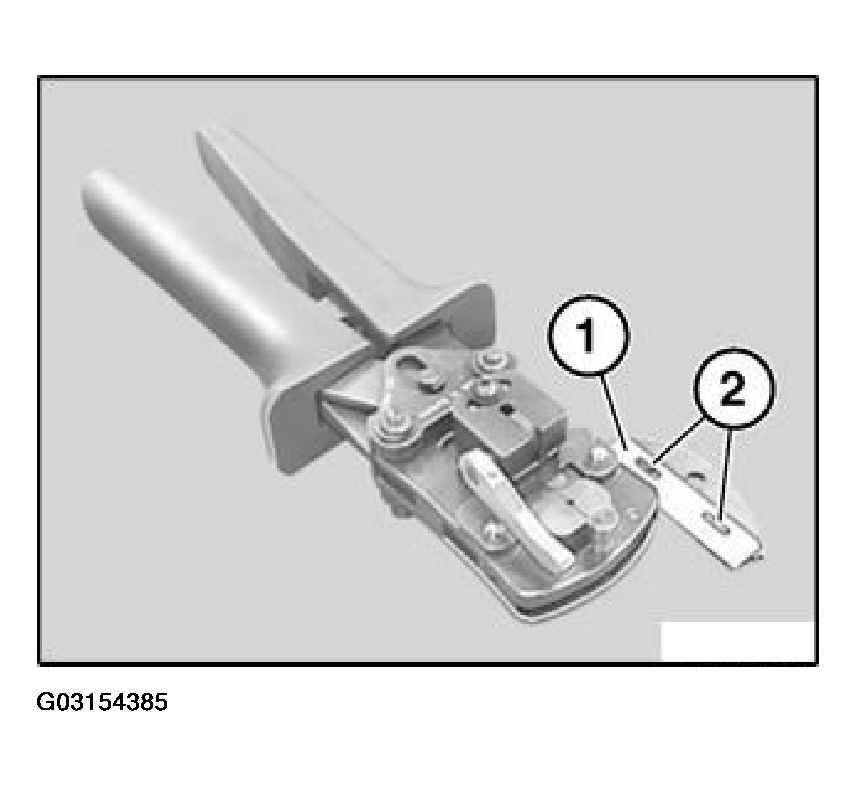

Fig 2: Identifying Correct Seating Of Blade
G03154385Courtesy of BMW OF NORTH AMERICA, INC.

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).

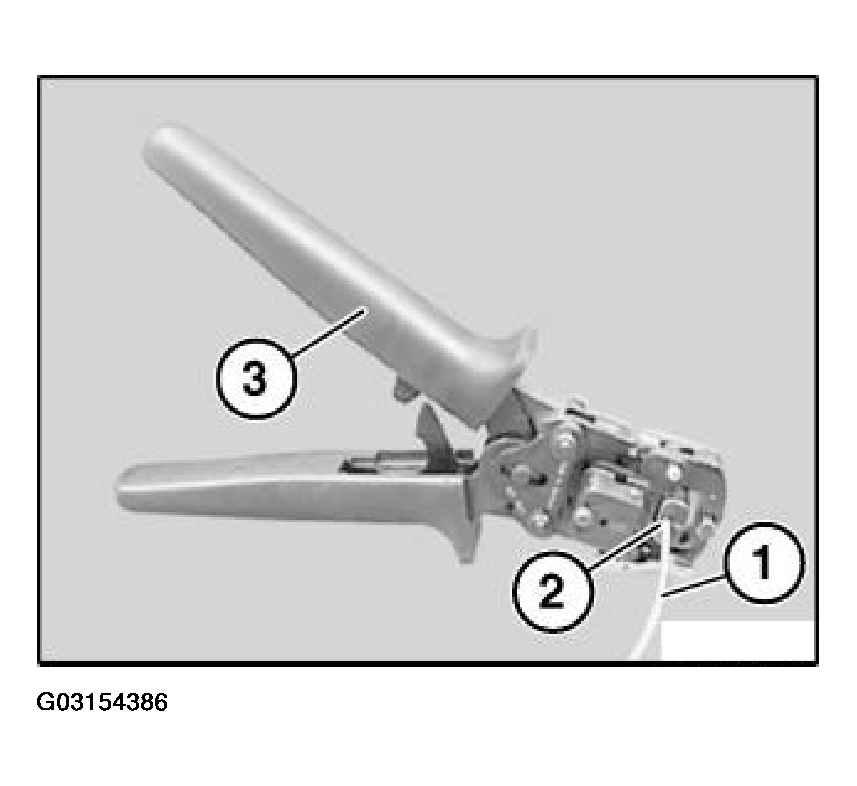

Fig 3: Cutting Optical Fibre
G03154386Courtesy of BMW OF NORTH AMERICA, INC.
