61 67 010 Removing and installing/replacing washer pump of headlight cleaning system
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove wheel arch cover at front right top.
Drain fluid tank for windshield washer system.
NOTE:
When removing, carefully pull out washer pump for headlight cleaning system so that strainer is not pulled off and thus does not fall into fluid tank for windshield washer system. If this does happen, the fluid tank for the windshield washer system must be removed so that the strainer can be taken out.

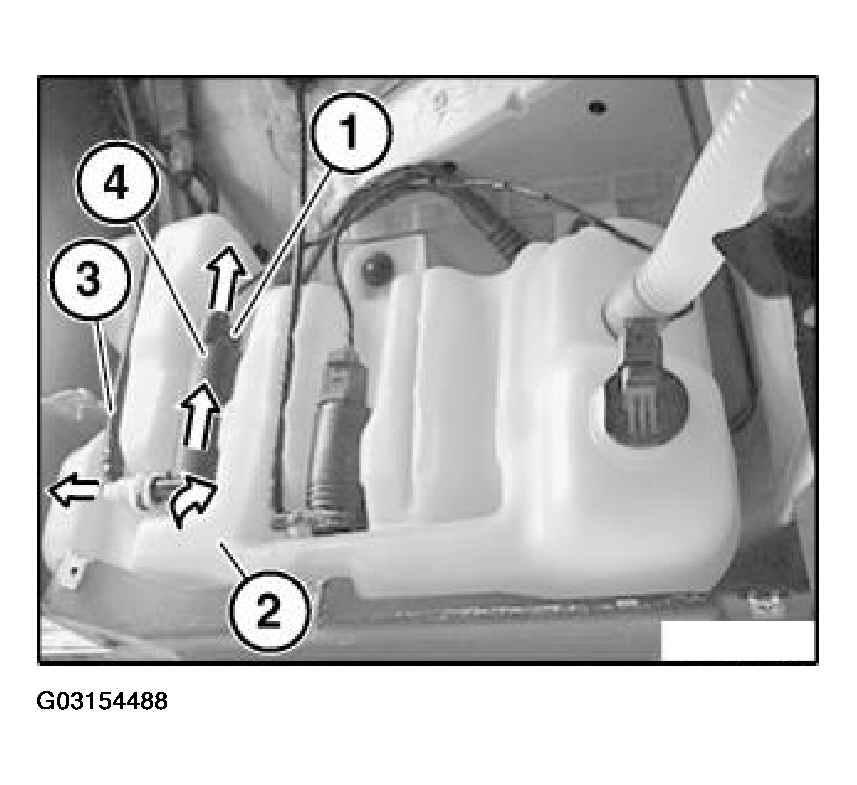

Disconnect plug connection (1) in direction of arrow.
Unlock hose (3) and detach in direction of arrow from washer pump of headlight cleaning system (4).
Turn washer pump of headlight cleaning system (4) in direction of arrow and pull upwards out of fluid tank for windshield washer system (2).
Installation:
Make sure hose (3) is laid without kinks.
Replace seal and strainer for washer pump of headlight cleaning system (4).
Coat seal with antiseize agent.
