54 12 496 Removing and installing or replacing wind deflector: Installation:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

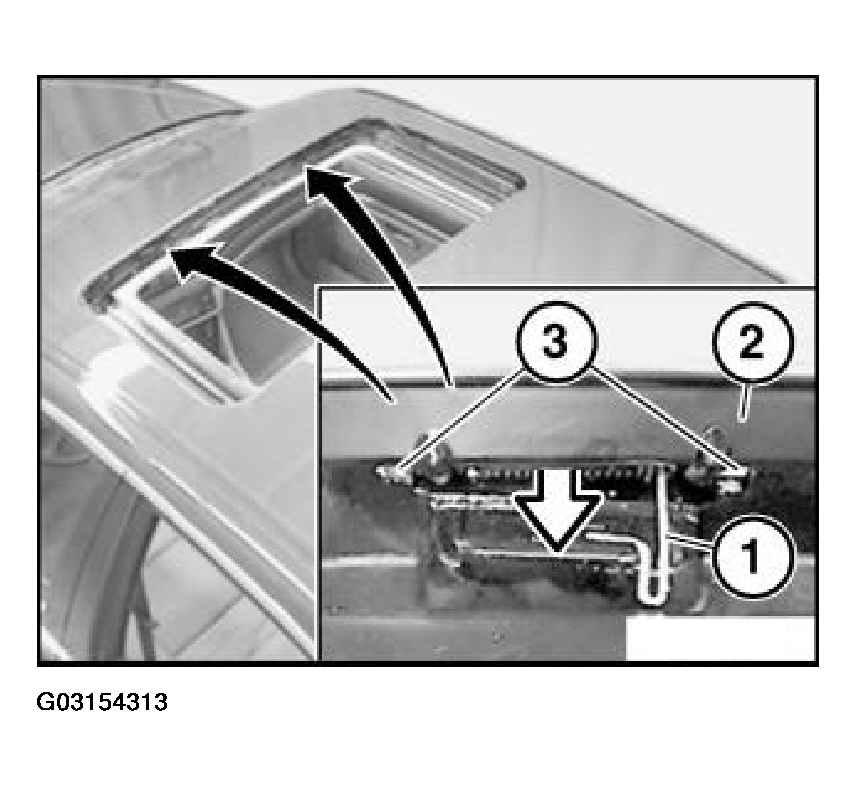

Install spring (1) correctly.

Fig 1: Installing Spring

Courtesy of BMW OF NORTH AMERICA, INC.

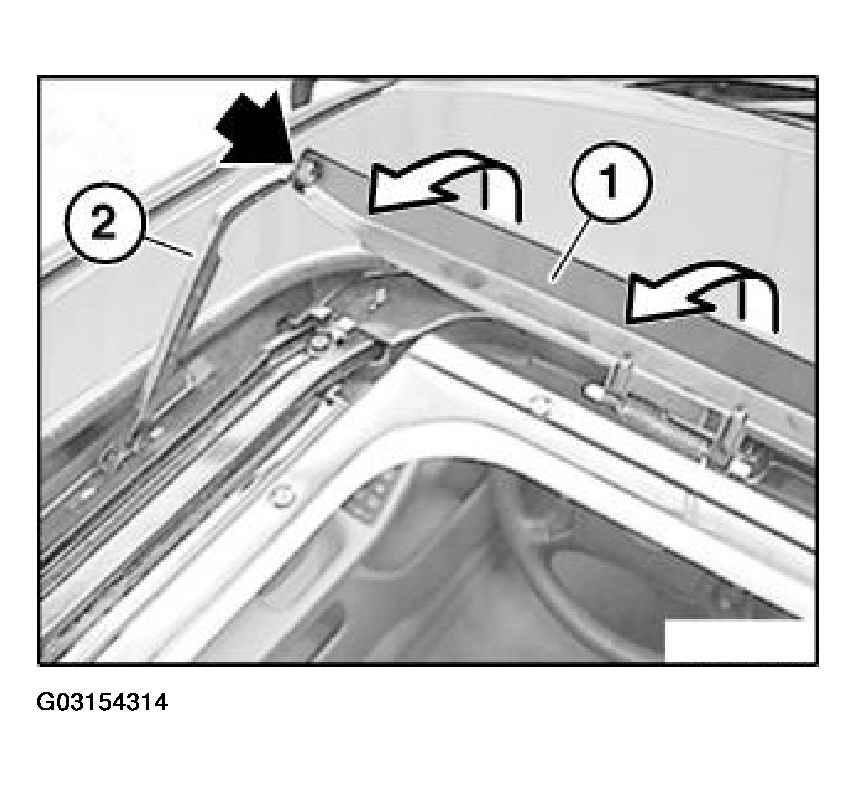

Raise wind deflector (1) slightly, turn and pull off left/right lever (2).

Fig 2: Raising Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

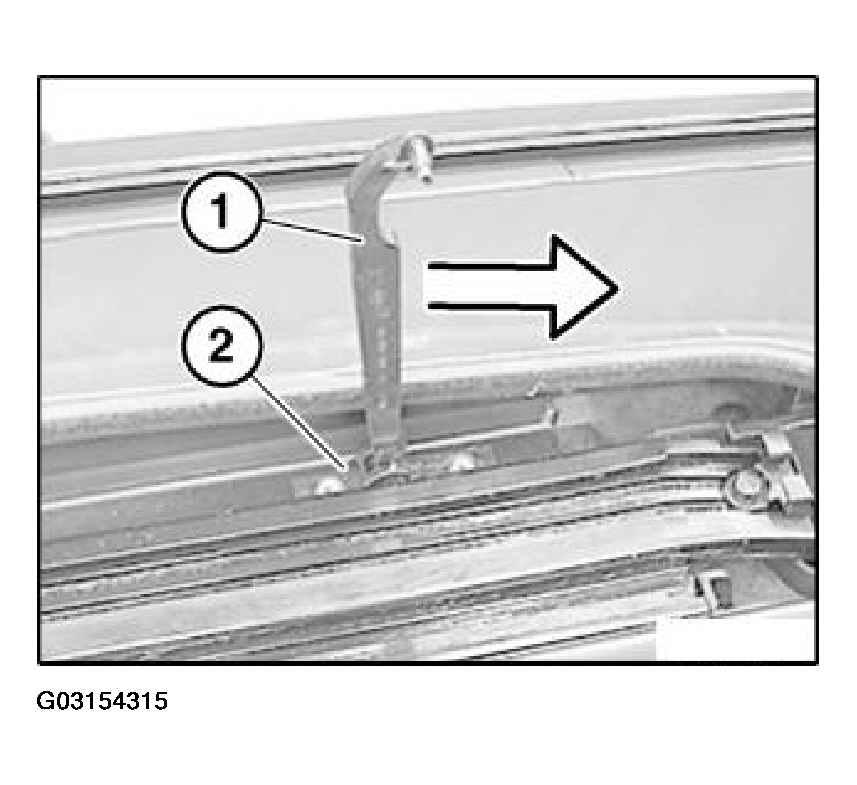

Move left/right lever (1) into vertical position and pull forwards off mount (2).

Check function.

Fig 3: Moving Lever Into Vertical Position

Courtesy of BMW OF NORTH AMERICA, INC.
