54 12 210 Removing and installing complete slide/tilt sunroof (frame): Installation:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Fold up back of frame until rear clips can be unfastened.

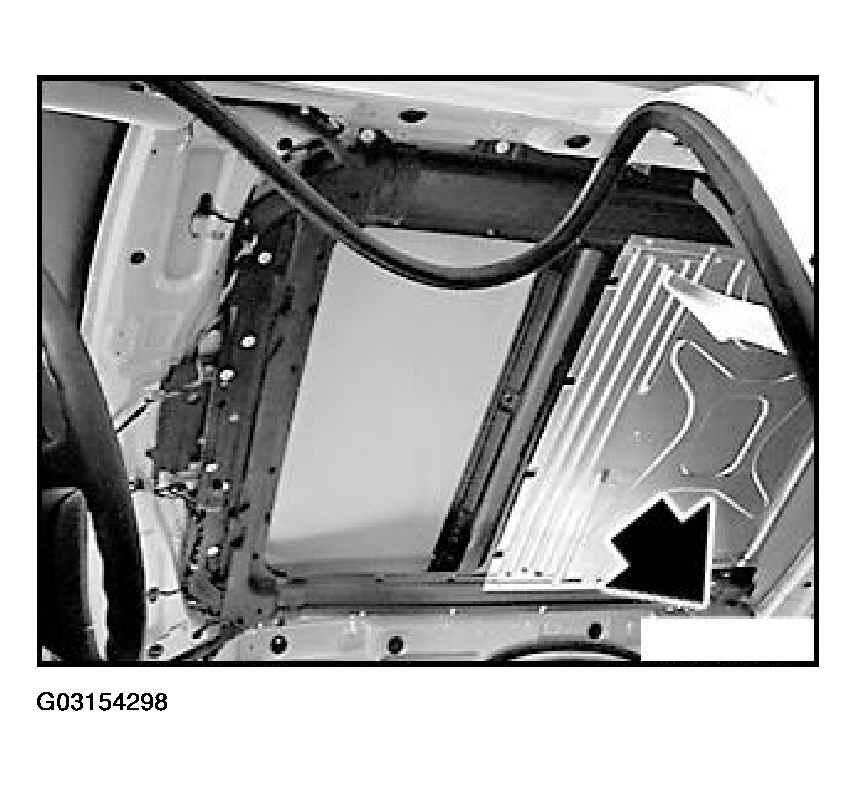

Fig 1: Unhooking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Slide slide/tilt sunroof frame backwards and lift out through right rear door.

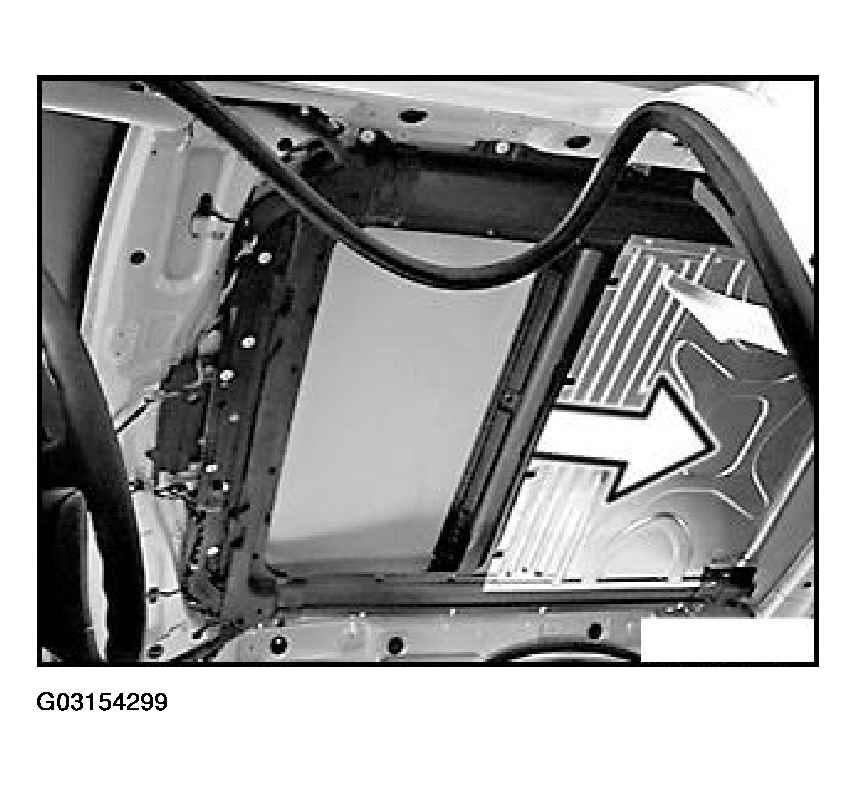

Fig 2: Sliding Slide/Tilt Sunroof Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Insert slide/tilt sunroof frame in sheet metal slot at front.

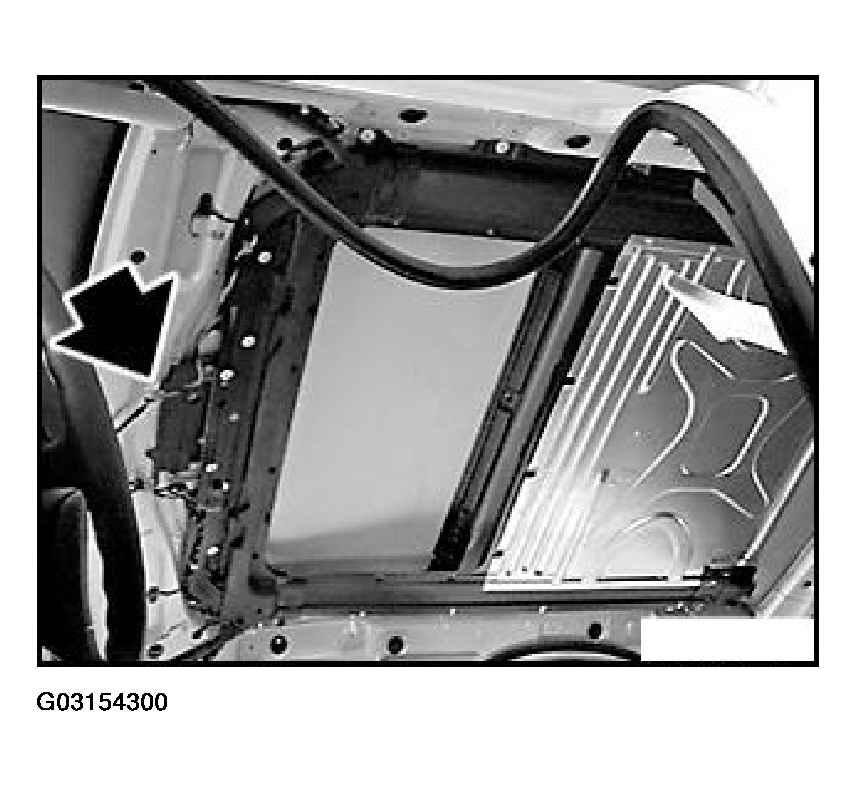

Fig 3: Inserting Slide/Tilt Sunroof Frame In Sheet Metal Slot

Courtesy of BMW OF NORTH AMERICA, INC.
