54 12 138 Removing and installing / replacing water channel for glass sliding/tilting sunroof: Installation:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Make sure that the fork at the rear is engaged and the water channel on left/right is correctly snapped into place.

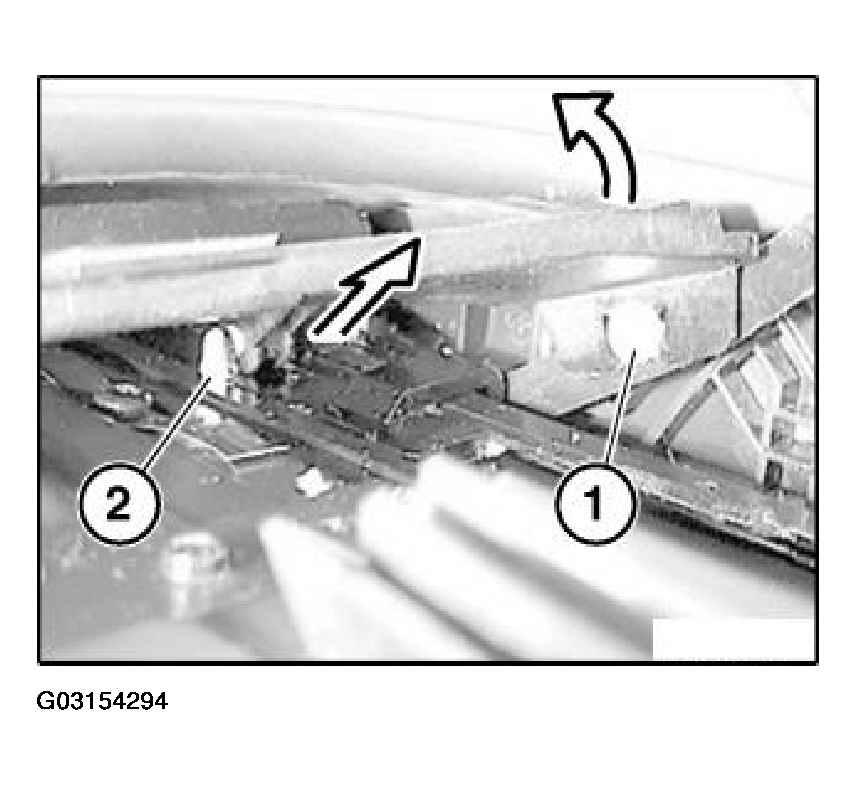

Fig 1: Uncliping Water Channel From Setting Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Catch (1) and support (2) on left/right must not be damaged.

Check function.

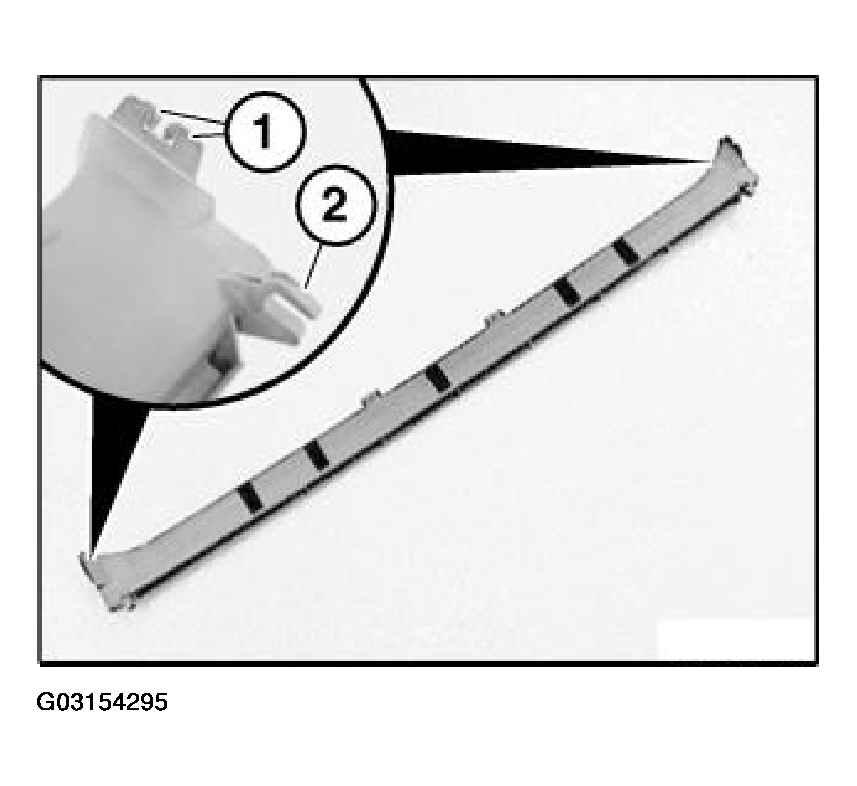

Fig 2: Installing Catch And Support

Courtesy of BMW OF NORTH AMERICA, INC.
