54 12 136 Removing and installing / replacing headliner for glass slide/tilt sunroof cover: Installation:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.

Removing left and right rubber gaiter for glass slide/tilt sunroof cover, refer to 54 12 015 REPLACING LEFT OR RIGHT RUBBER GAITERS FOR GLASS SLIDE/TILT SUNROOF .

Move mechanism into zero setting.

Slowly pull headliner forwards as far as it will go.

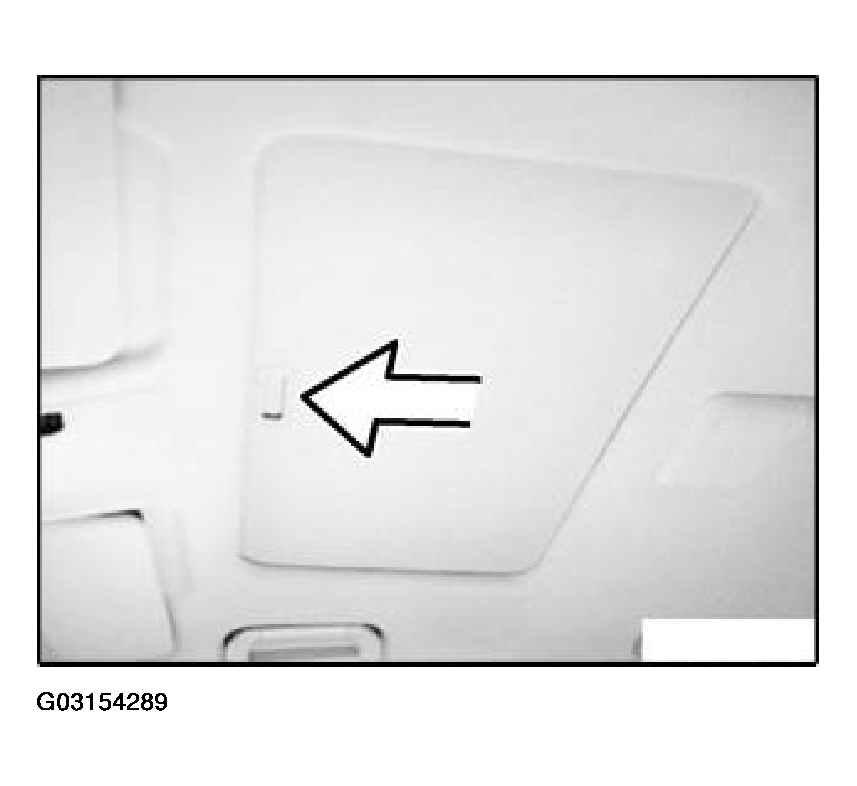

Fig 1: Pulling Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right screws (1).

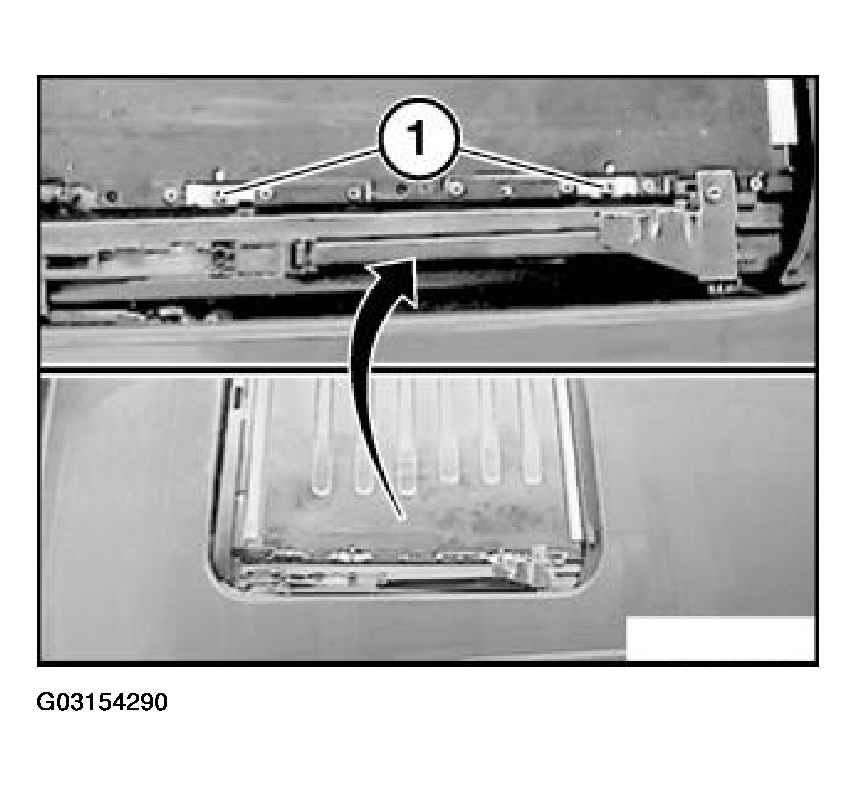

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift headliner upwards to remove.

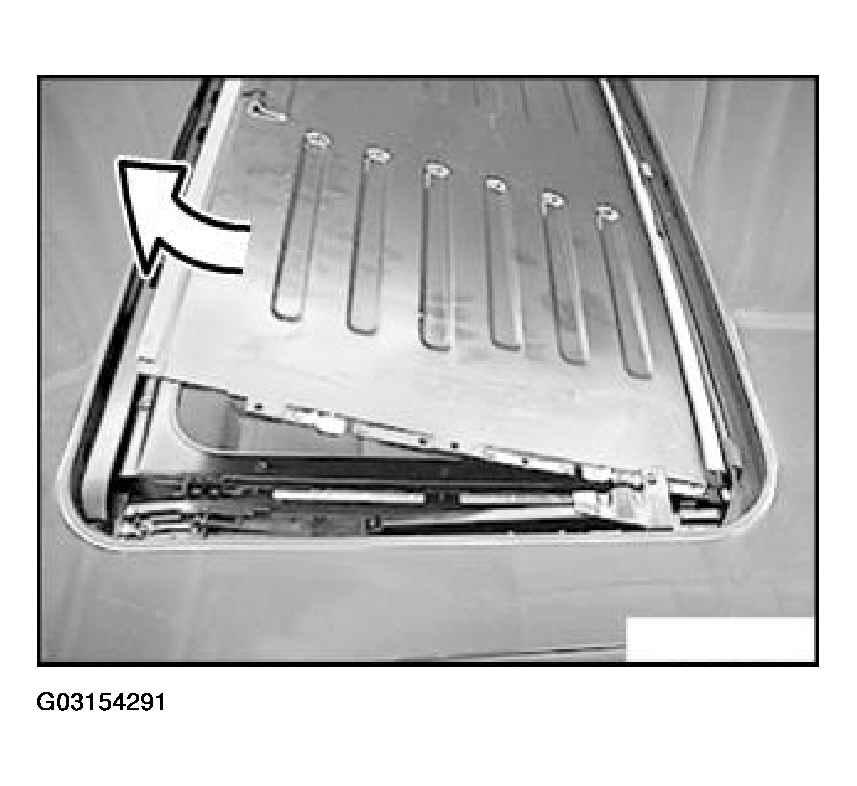

Fig 3: Lifting Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Insert headliner (1) in support (2) from behind/left.

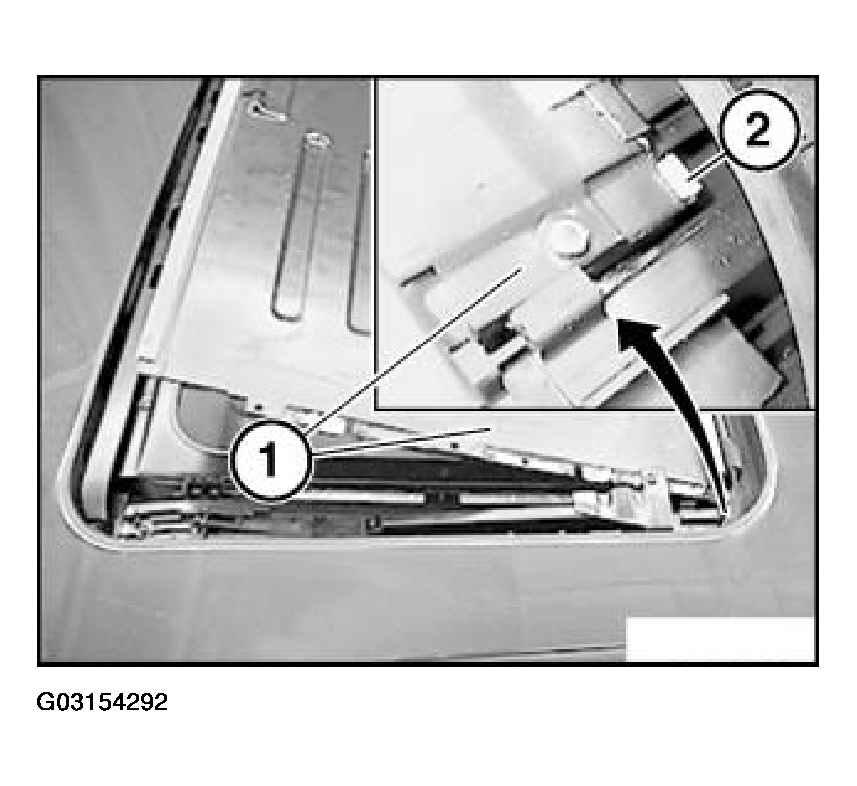

Fig 4: Inserting Headliner In Support

Courtesy of BMW OF NORTH AMERICA, INC.
