54 12 132 Removing and installing/replacing headliner for sun-roof lid: Installation:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.

Remove sun-roof lid, refer to 54 12 100 REMOVING AND INSTALLING SUN ROOF LID

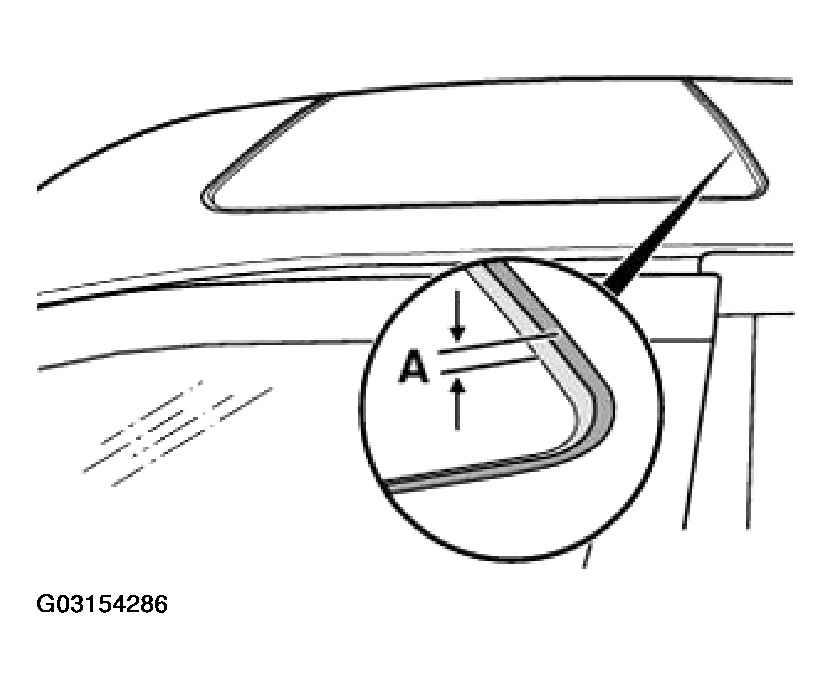

The mechanism must be lowered at the back by dimension (A). If necessary, lower as with the installed slide/tilt sunroof cover.

Distance (A) = 2 to 3 mm

Fig 1: Identifying Dimension A

Courtesy of BMW OF NORTH AMERICA, INC.

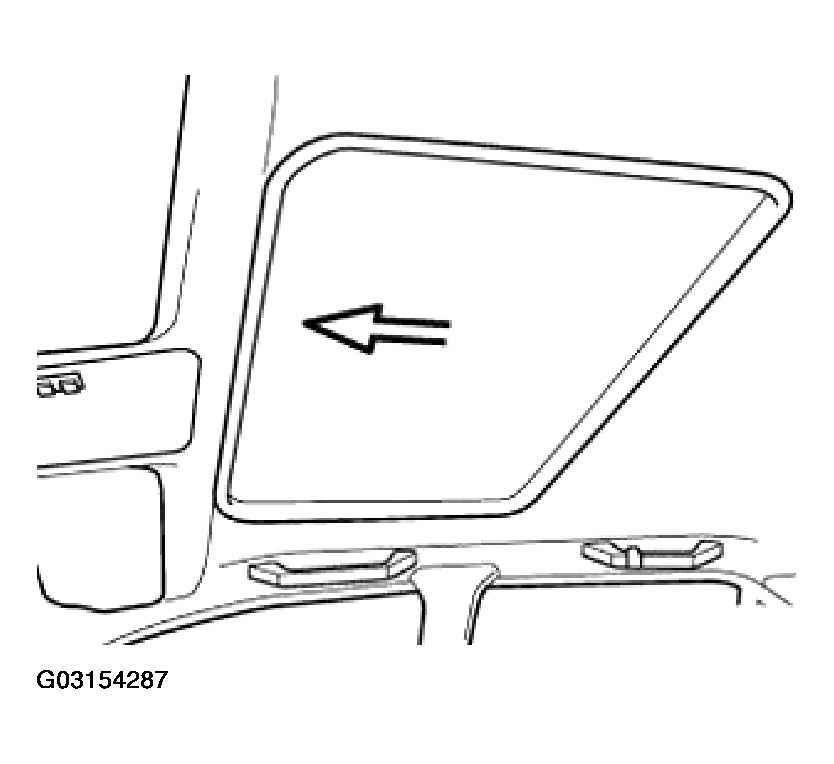

Pull headliner slowly forwards (with clean hands or wearing protective gloves).

Fig 2: Pulling Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

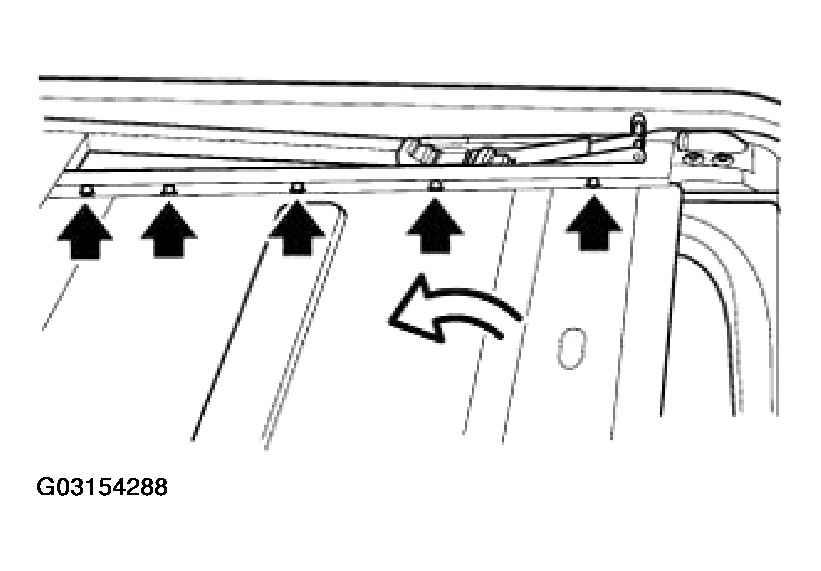

Unfasten left/right Torx screws and pull headliner forwards/upwards to remove.

Fig 3: Removing Torx Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After dismantling the headliner, do not move the mechanism, otherwise the bending/fulcrum pad slides backwards.
