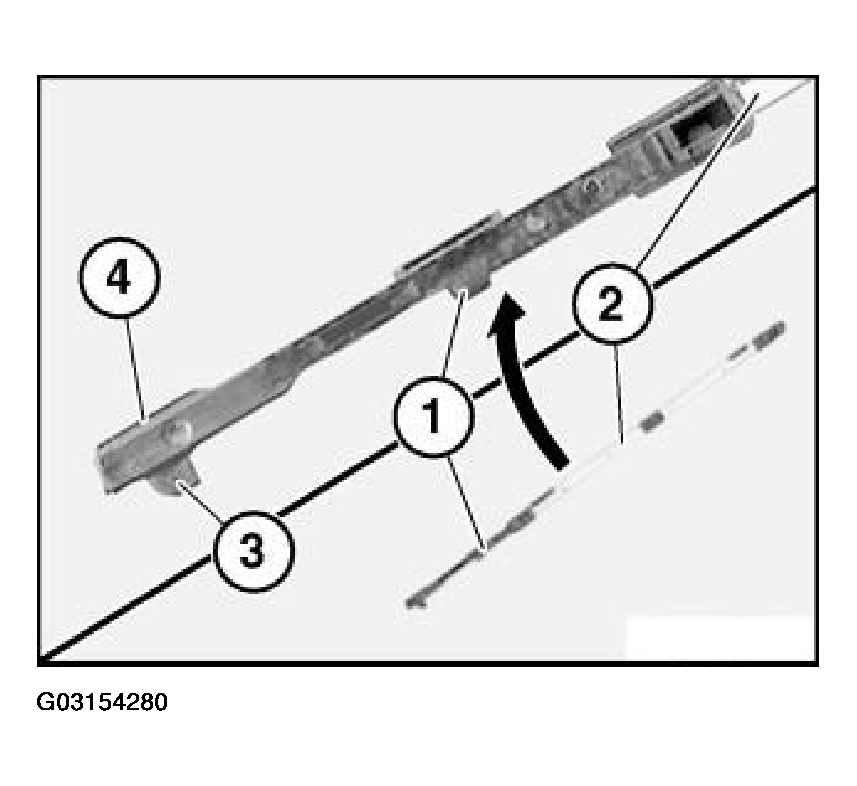

Removal of headliner mechanism with "flexible fulcrum pad"(only on right side):

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The flexible fulcrum pad (1) is securely attached to the rail (2) (cannot be removed).

3 Outer guide

4 Inner guide

Fig 1: Attaching Flexible Fulcrum Pad To Rail

G03154280

Courtesy of BMW OF NORTH AMERICA, INC.

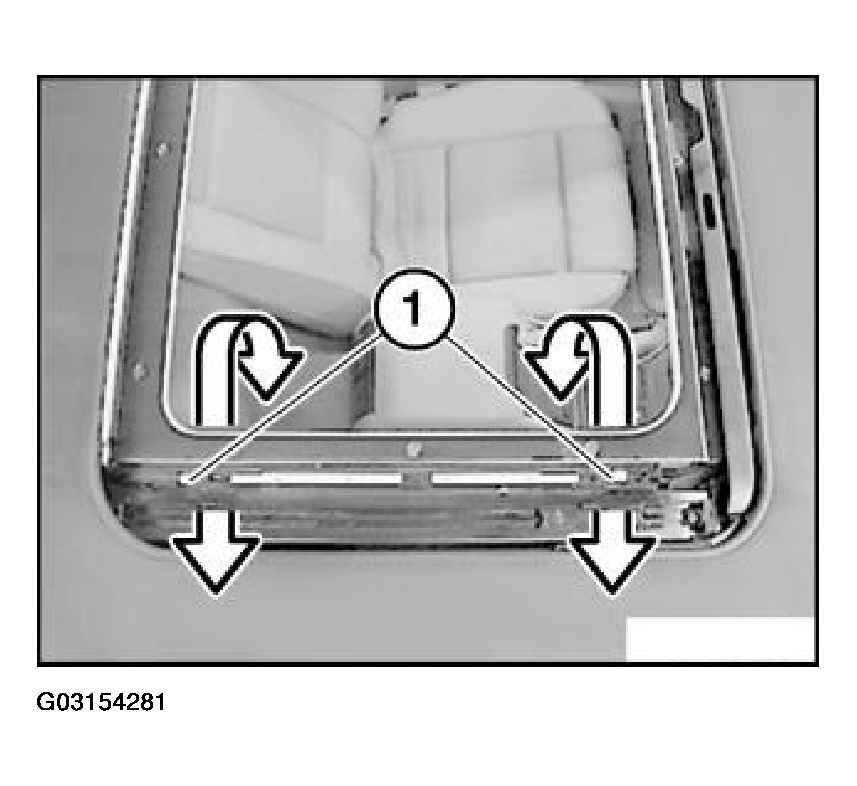

Right side:

Tilt headliner mechanism inwards at front and back of strut (1) and pull outwards (this produces an audible click on flexible fulcrum pad).

Fig 2: Tilting Headliner Mechanism Inwards At Front And Back Of Strut

G03154281

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Tilt headliner mechanism (1) outwards with flexible fulcrum pad (2) and pull inwards to remove from guide channel.

Fig 3: Tilting Headliner Mechanism Outwards With Flexible Fulcrum Pad

G03154282

Courtesy of BMW OF NORTH AMERICA, INC.

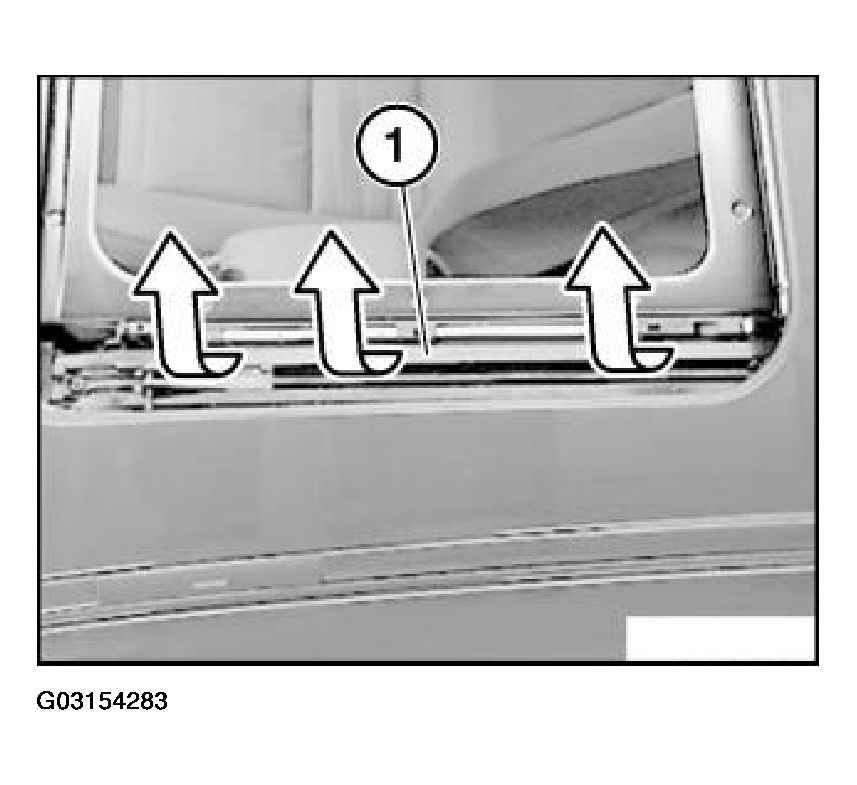

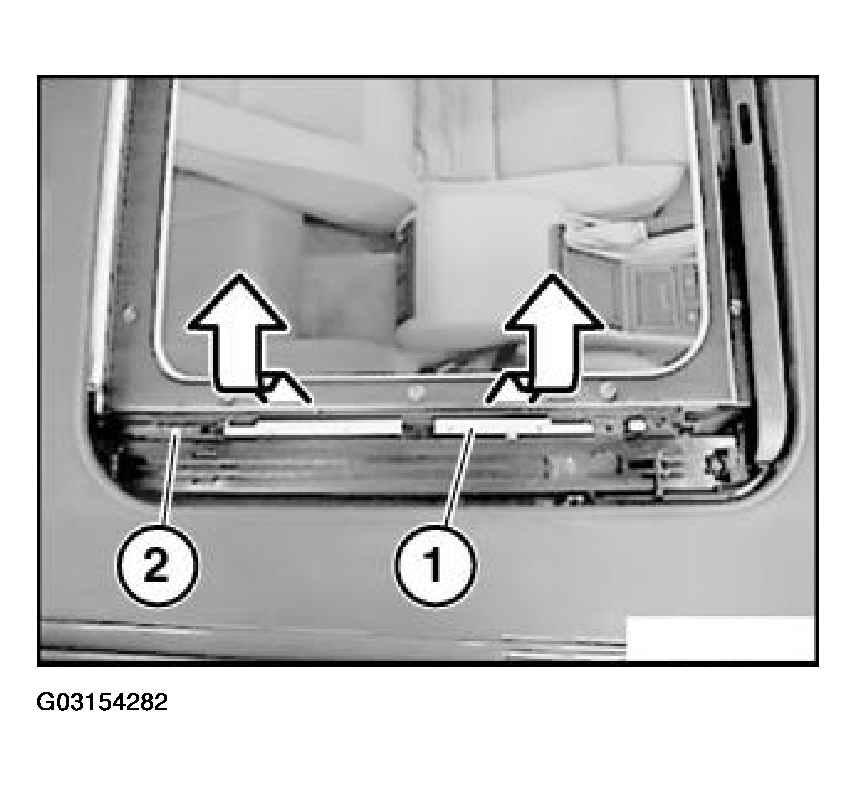

Left side:

Unfasten headliner mechanism (1) and lift inwards/upwards to remove from guide channel.

Fig 4: Removing Headliner Mechanism

G03154283

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of headliner mechanism with "flexible fulcrum pad"(only on right side):

NOTE: To illustrate more clearly, installation shown with a removed glass slide/tilt sunroof.

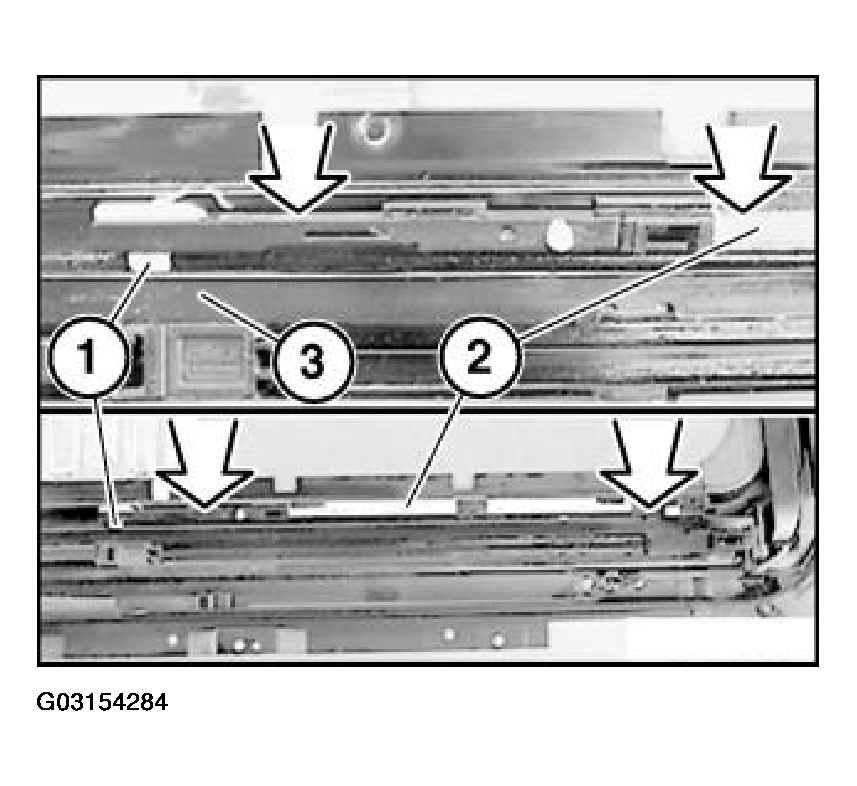

Install the guide (1) on the flexible fulcrum pad and rest of headliner mechanism (2) facing outwards in guide channel (3).

Fig 5: Installing Guide On Flexible Fulcrum Pad

G03154284

Courtesy of BMW OF NORTH AMERICA, INC.

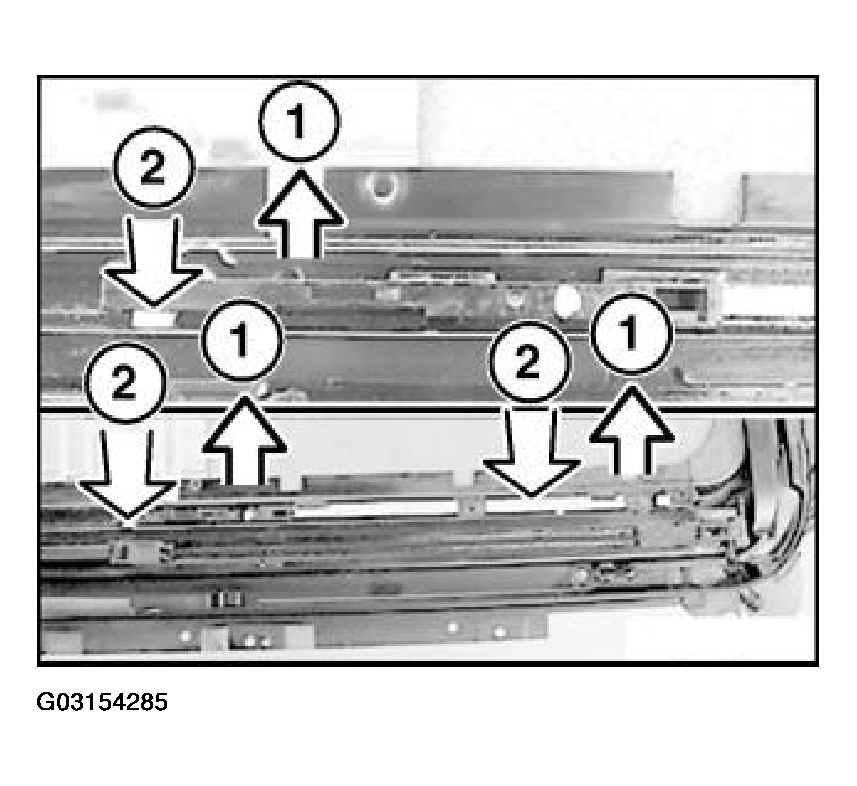

Press headliner mechanism inwards (1) and press outer guide downwards (2) into the guide channel.

Fig 6: Pressing Headliner Mechanism Inwards

G03154285

Courtesy of BMW OF NORTH AMERICA, INC.
