54 12 126 Removing and installing / replacing headliner mechanism for glass slide/tilt sunroof: Installation:: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.
Removing and installing headliner for glass slide/tilt sunroof cover, refer to 54 12 136 REMOVING AND INSTALLING / REPLACING HEADLINER FOR GLASS SLIDE/TILT SUNROOF COVER
NOTE:
Always replace headliner mechanism for glass slide/tilt sunroof in pairs.

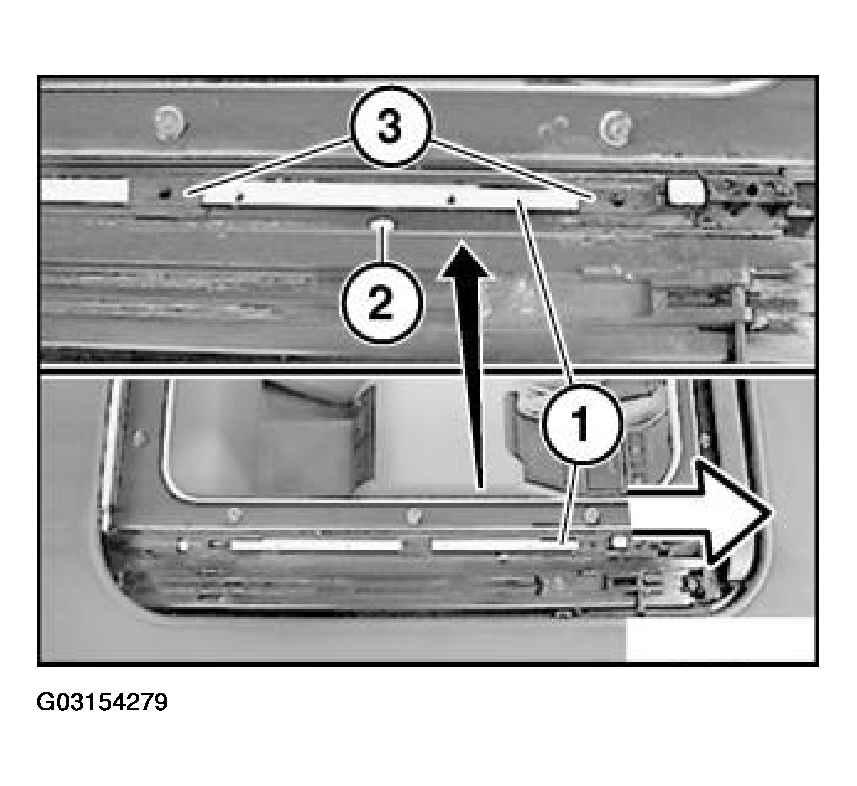

Slide headliner mechanism (1) fully forwards.
Move mechanism back until nipple (2) is located to right of plastic slides (3).
