54 12 115 Removing and installing glass sliding/tilting sunroof lid: Removal:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

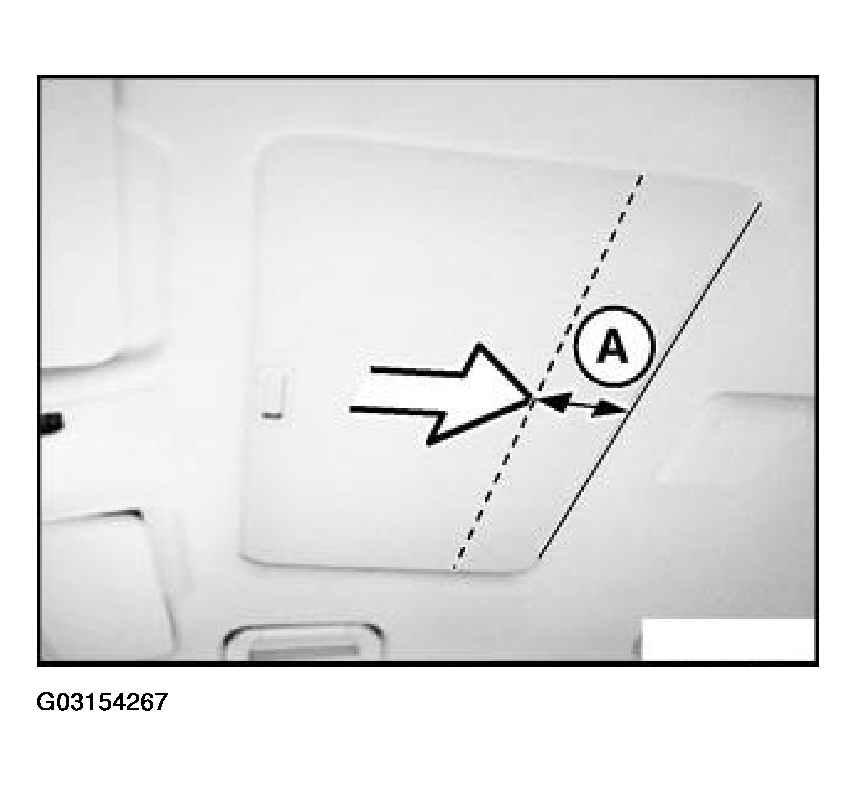

Slowly slide roof-lining frame towards rear up to dimension (A).

DIMENSION A

A	E38	80 mm
	E39, E53	70 mm

Fig 1: Identifying Dimension A

Courtesy of BMW OF NORTH AMERICA, INC.

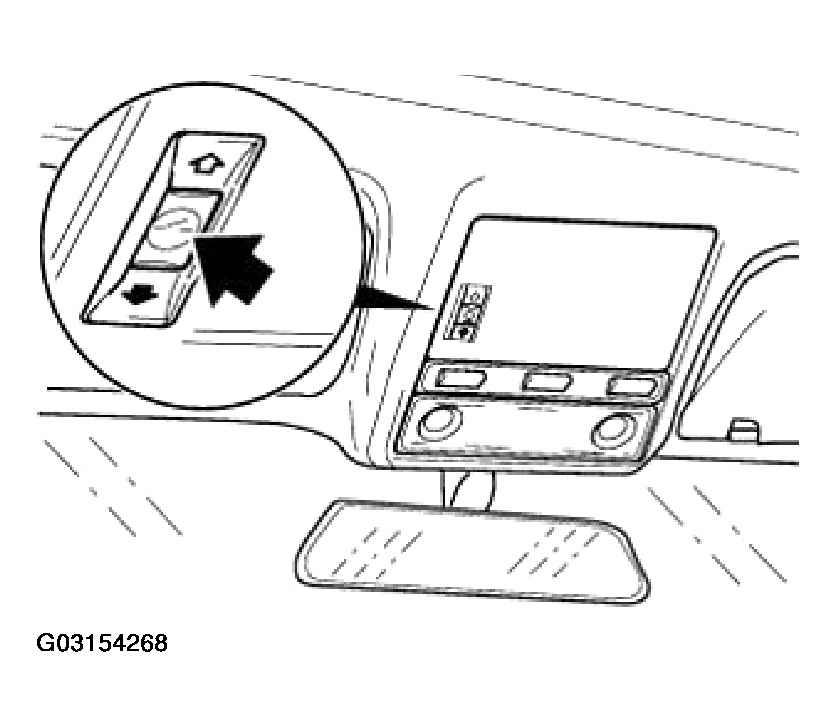

Press switch in direction of "raise position" (fan setting) until lid is raised to max. setting.

Fig 2: Pressing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

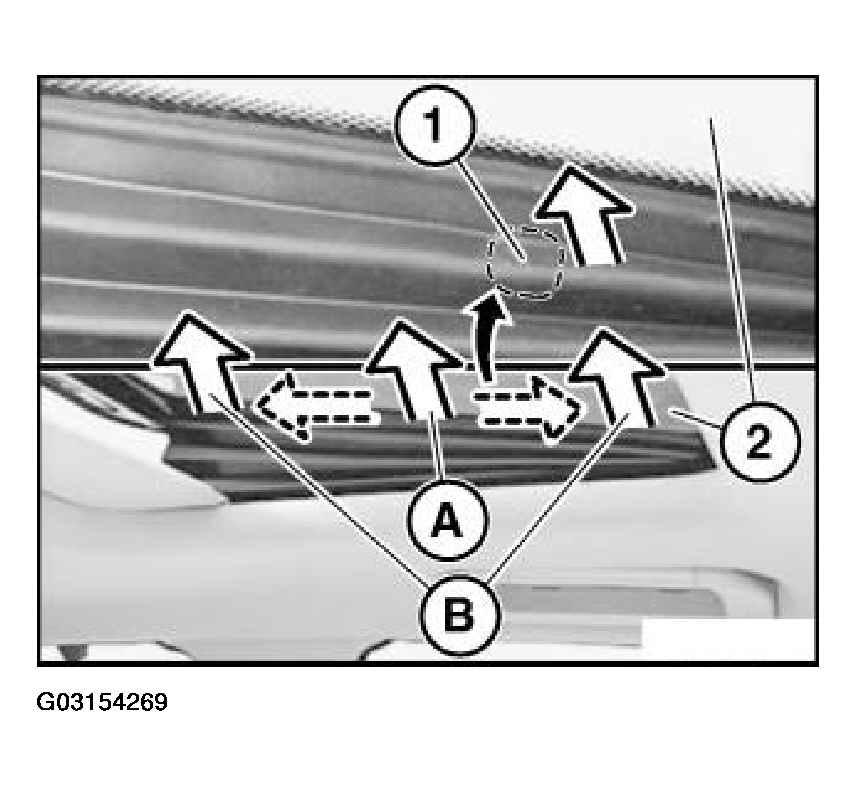

NOTE: Grasp the bellows by hand only at the first fold (1) (risk of damage).

Detach bellows starting from center (A) towards front and rear (B) from glass slide/tilt sunroof lid (2).

Fig 3: Detaching Bellows Starting From Center

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and (2) with special tool 00 2 130.
