54 12 100 Removing and installing sun roof lid: Notes

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not move floating roof liner with force.

Follow procedure precisely because otherwise mechanism (guide) on slide/tilt sunroof cassette can be damaged. It then has to be replaced.

Open slide/tilt sunroof lid approx. 250 mm.

Loosen screws (2) until aperture becomes free.

Close slide/tilt sunroof lid.

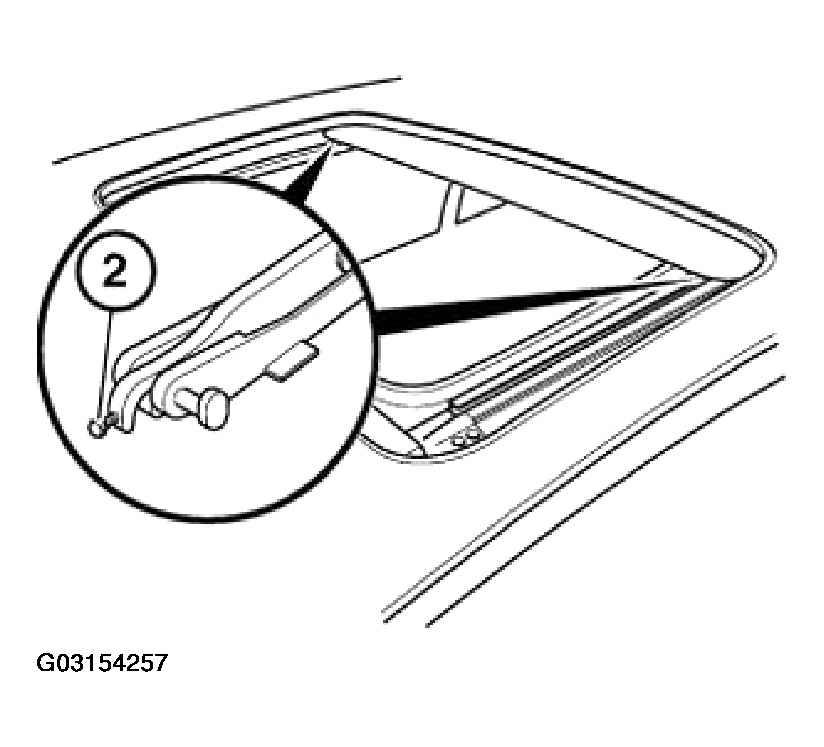

Fig 1: Loosening Screws Until Aperture Becomes Free

Courtesy of BMW OF NORTH AMERICA, INC.

Press button to open roof briefly (1) then stop again (2) (inching function).

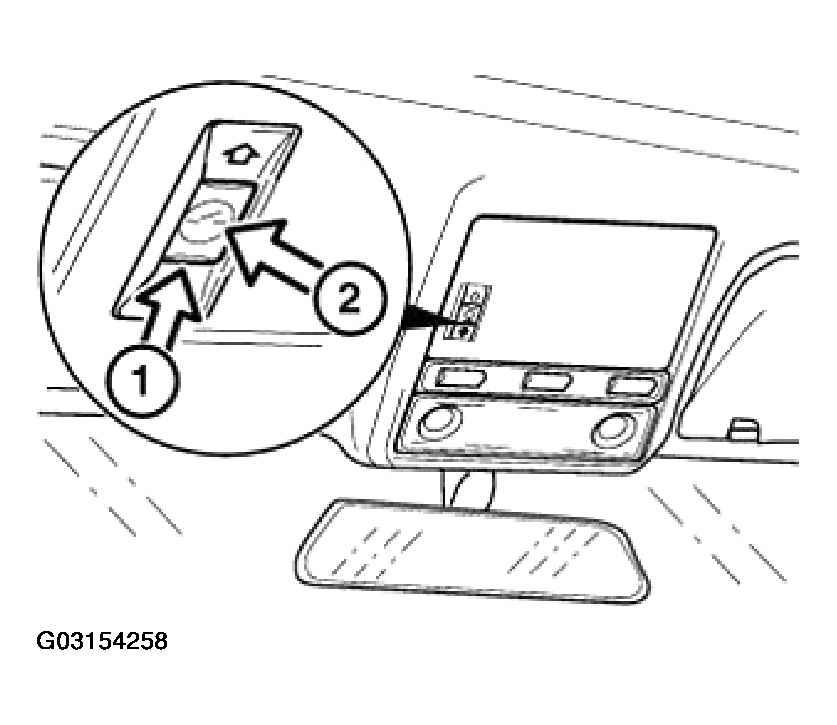

Fig 2: Pressing Button

Courtesy of BMW OF NORTH AMERICA, INC.

The slide/tilt sunroof lid must now lower at back by dimension (A).

(A) = 2 ... 4 mm

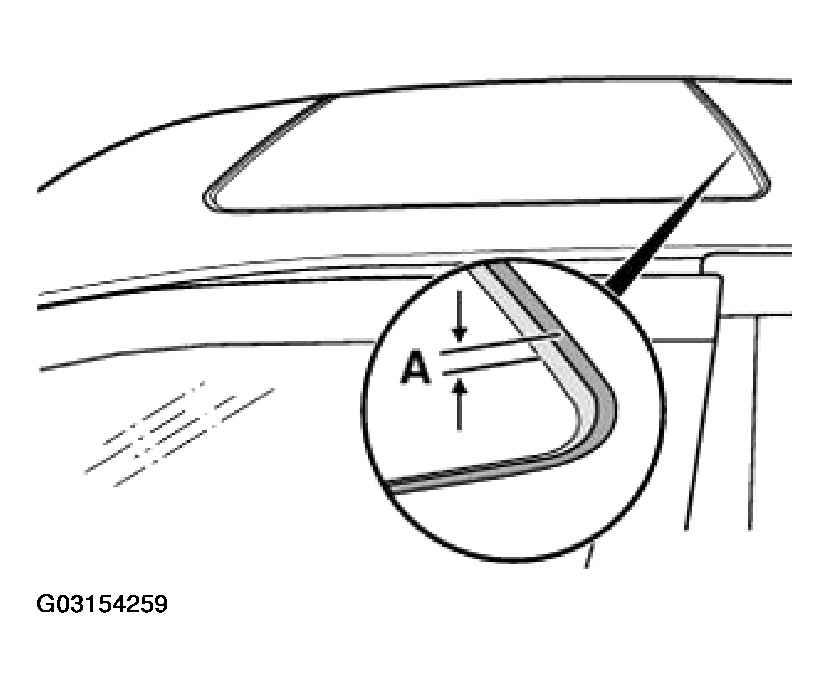

Fig 3: Identifying Dimension (A)

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Rapid sliding of floating roof liner can damage the mechanism (guide) of slide/tilt sunroof cassette. Do not move floating roof liner with force.

Slowly slide floating roof liner right back (with clean hands, or wearing protective gloves).

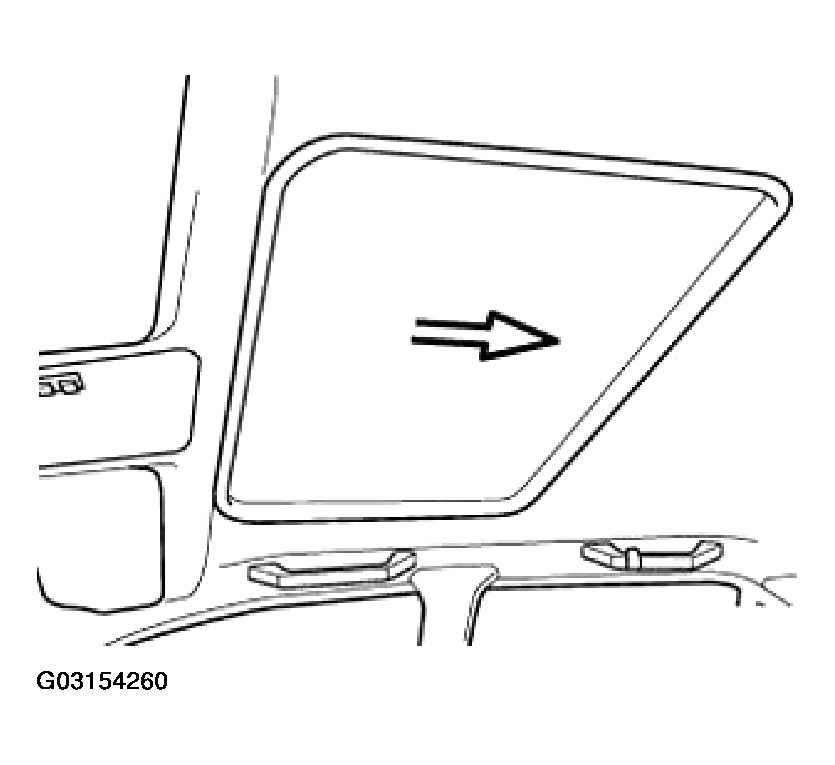

Fig 4: Sliding Floating Roof Liner

Courtesy of BMW OF NORTH AMERICA, INC.

Shut sun roof (neutral position).

CAUTION: Slide/tilt sunroof can now no longer be moved in "OPEN" direction (damage to mechanism).

Unscrew nuts.

Lift slide/tilt sunroof lid upwards and backwards to remove.
