54 12 100 Removing and installing sun roof lid: Installation:

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Replace nut (micro-encapsulation) or install old nut with Loctite 270.

Tightening torque, refer to 54 12 2AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTNENING TORQUES .

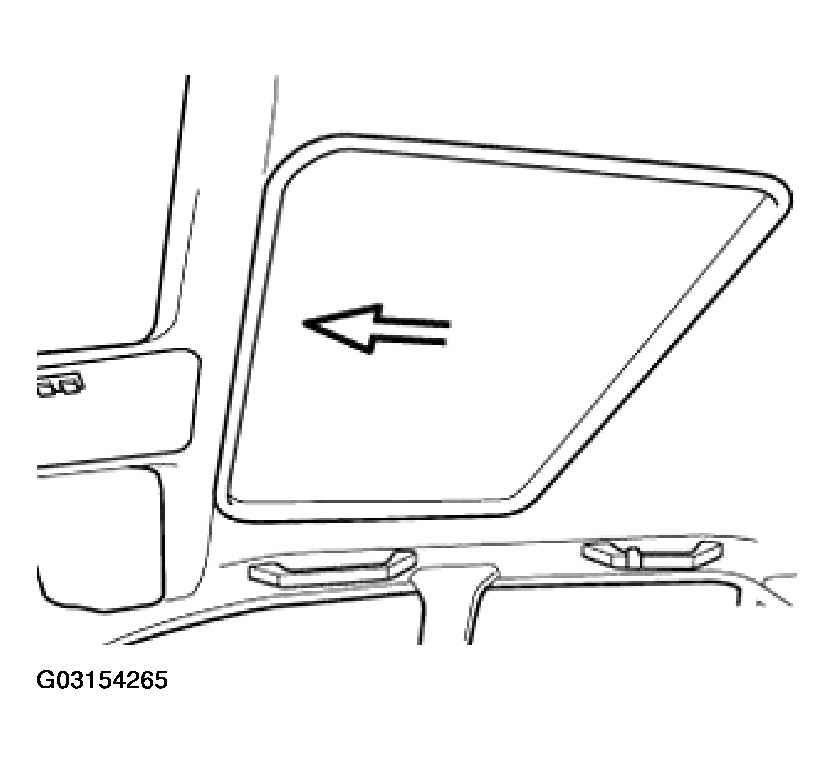

Fig 1: Lifting Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install slide/tilt sunroof lid, then locate adjusting lever (1) at front left and right accurately in sliding keyway (2).

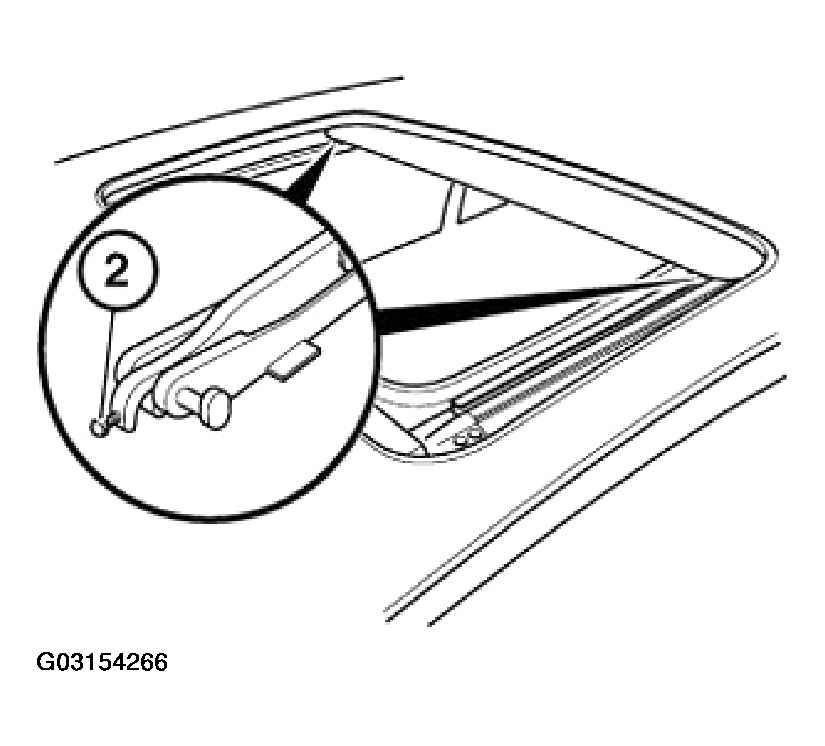

Fig 2: Locating Adjusting Lever And Sliding Keyway

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Check lid for tight fit.

With palms of hands, push front left and right of slide/tilt sunroof lid upwards.

It should not be possible to raise the slide/tilt sunroof cover. Adjusting lever in cover flange must be correctly located.

Installation

Press slide/tilt sunroof lid forwards.

Turn nuts (2) as far as stop.

Do not tighten!

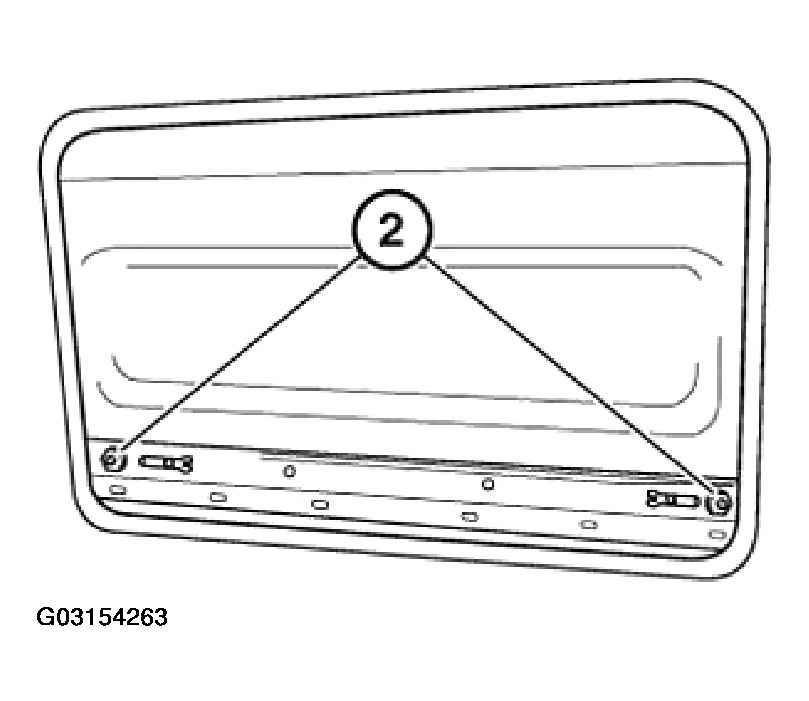

Fig 3: Turning Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Lower sun-roof lid at rear end by dimension (A).

(A) = 2 ... 4 mm

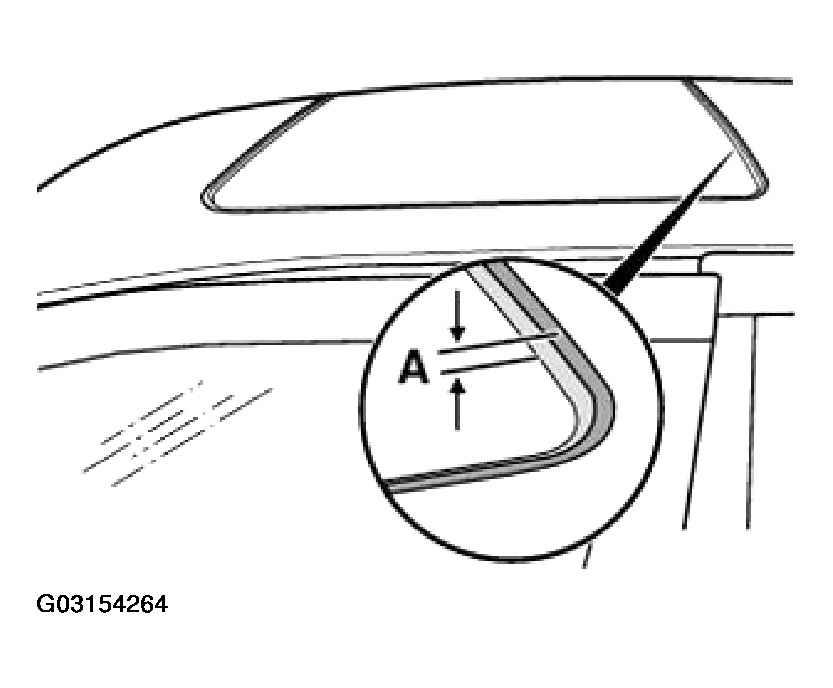

Fig 4: Identifying Dimension (A)

Courtesy of BMW OF NORTH AMERICA, INC.

Slowly slide floating roof liner right back (with clean hands, or wearing protective gloves).

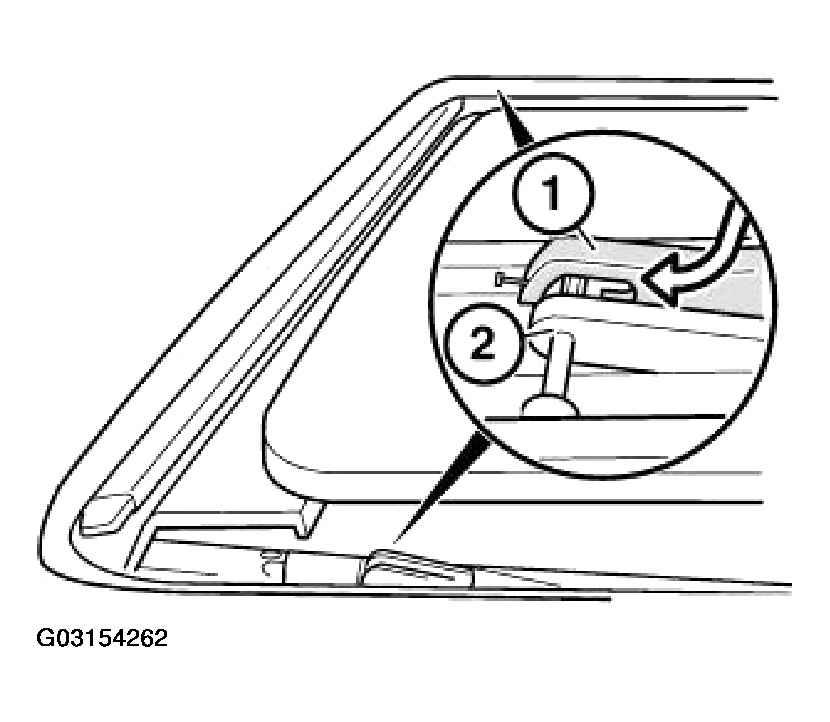

Fig 5: Sliding Floating Roof Liner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Open slide/tilt sunroof lid approx. 250 mm.

Press slide/tilt sunroof lid carefully upwards, then screw in retaining screws (2) on left and right and tighten down.

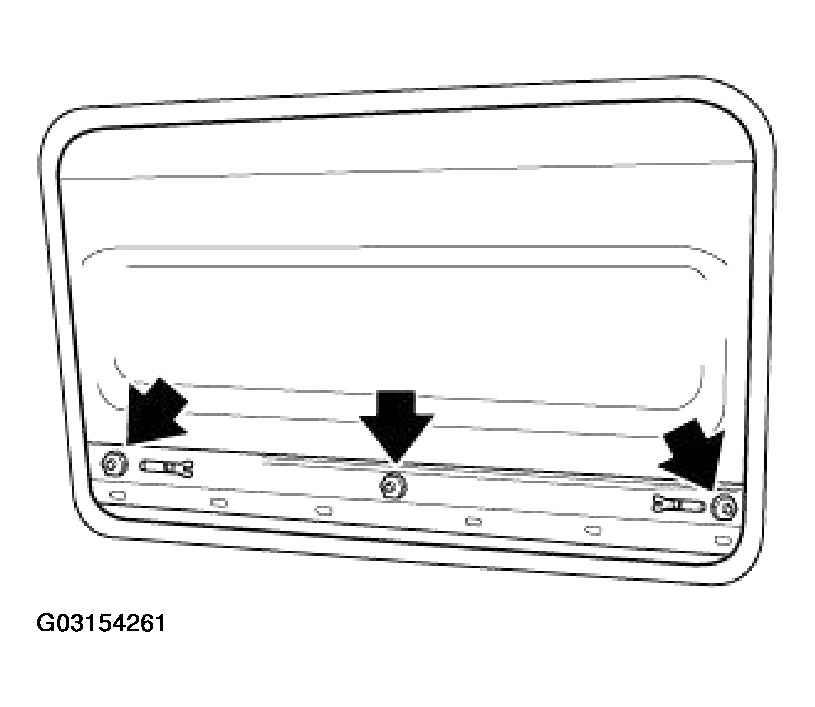

Fig 6: Pressing Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Initializing slide/tilt sunroof, refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE)

Adjust sun roof, refer to 54 12 004 ADJUSTING SUN ROOF
