54 12 015 Replacing left or right rubber gaiters for glass slide/tilt sunroof: Notes

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing glass slide/tilt sunroof cover, refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID

Move mechanism into lift position.

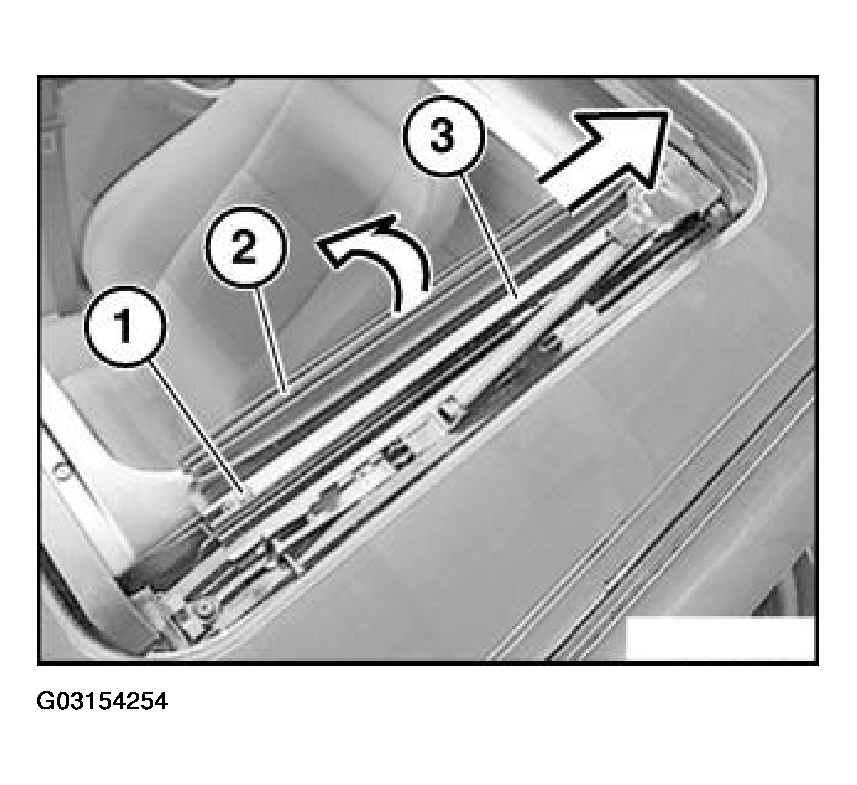

Unscrew bolt (1). Turn rubber gaiter (2) inwards and slide support (3) for rubber gaiter backwards.

Fig 1: Turning Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

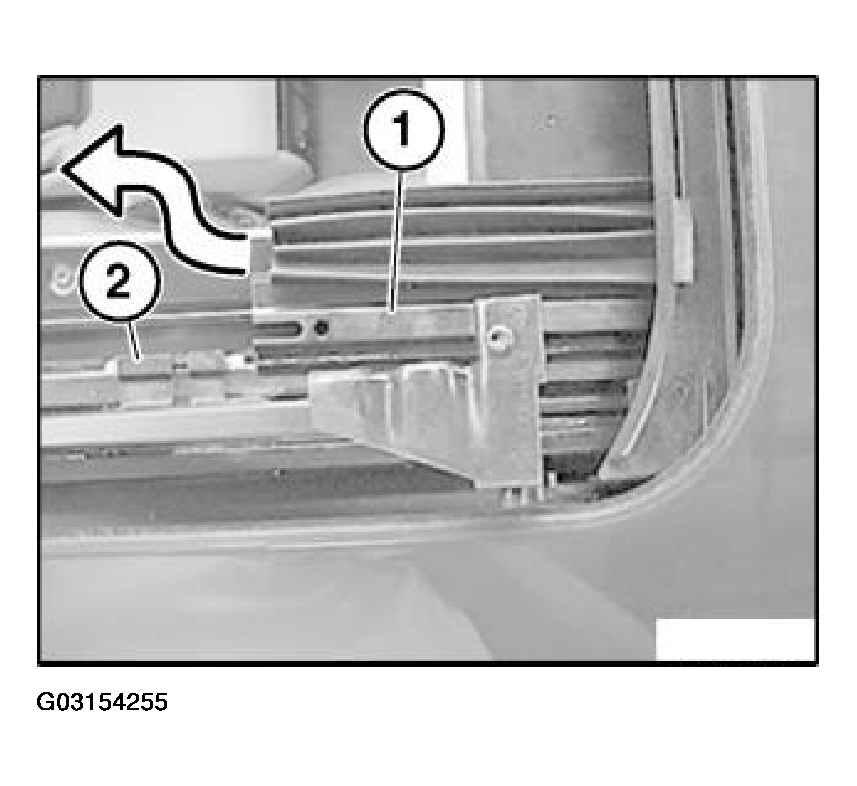

Slide support (1) for rubber gaiter out of guide (2) and pull forwards to remove.

Fig 2: Sliding Support For Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

Pull rubber gaiter (1) out of support (2) (if necessary, fold over the crimped area).
