54 12 004 Adjusting sun roof: Installation:
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2003 BMW 540i, 2003 BMW 525i, 2002 BMW 540i, 2002 BMW 525i, and 2001 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

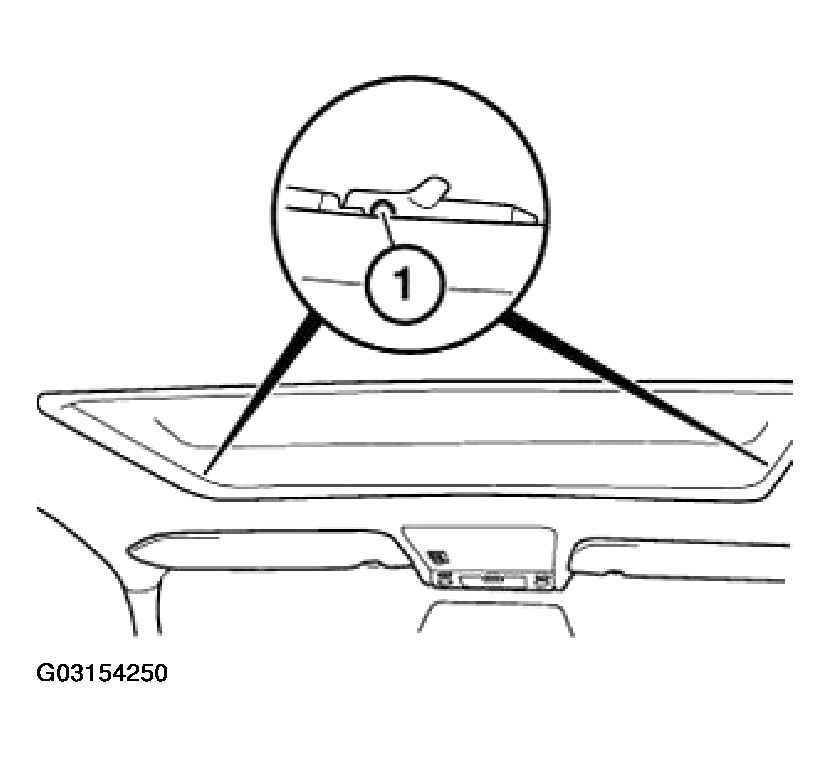

Tightening torque, see 54 12 2AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTNENING TORQUES .
Replace removed screws (micro-encapsulation) or install old screws with Loctite 270.

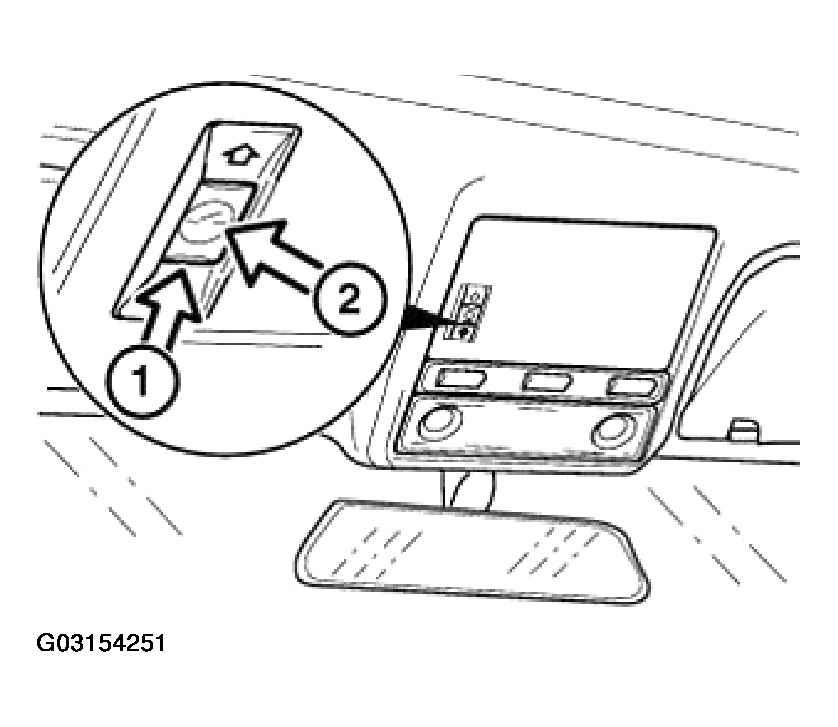

Press button to open roof briefly (1) then stop again (2) (inching function).

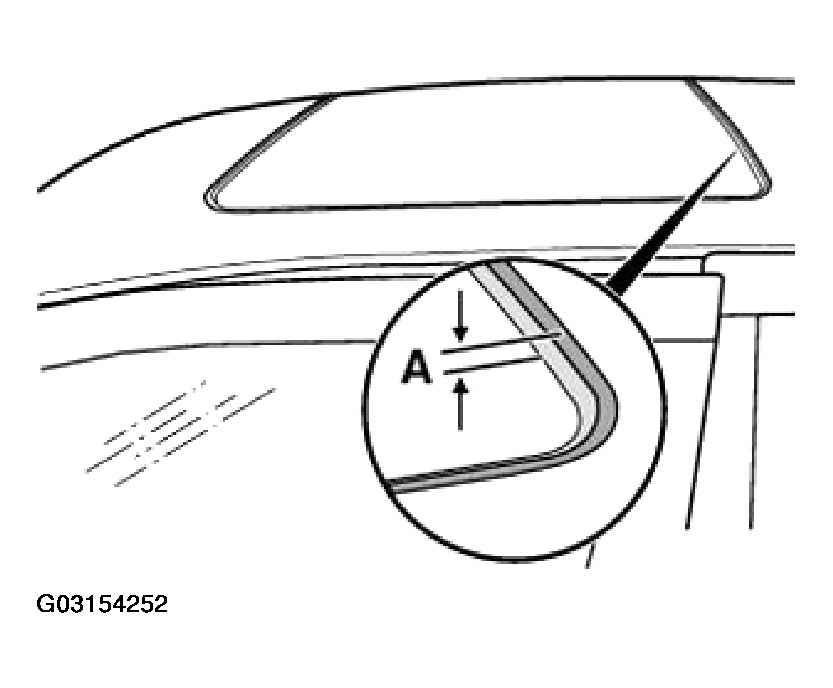

The slide/tilt sunroof lid must now lower at back by dimension (A).
(A) = 2 ... 4 mm
CAUTION:
Swift movement of the slide/tilt sunroof can damage mechanism (guide) of the slide/tilt sunroof cassette.

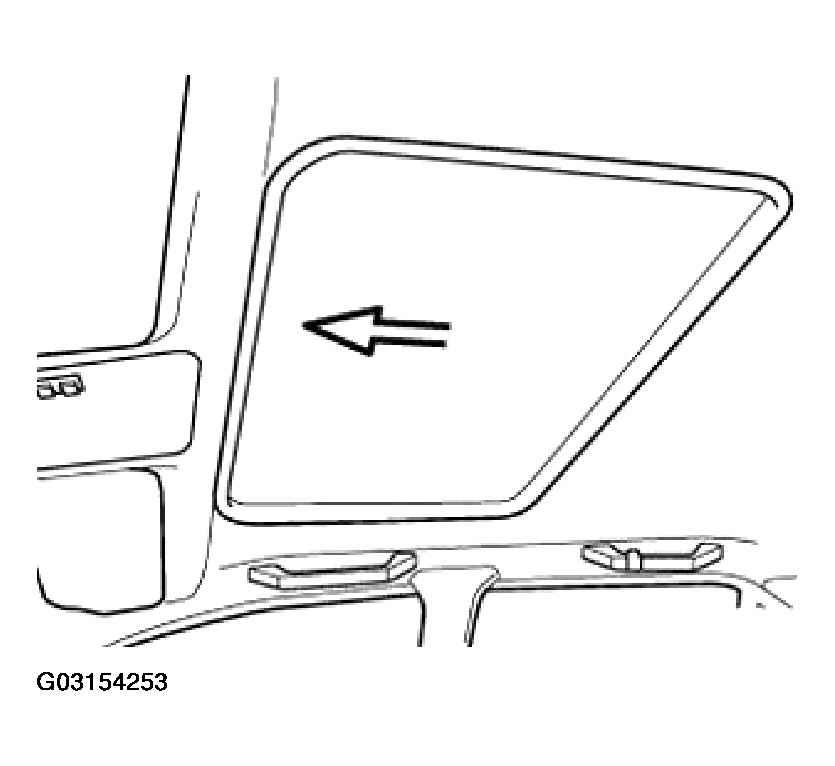

Pull floating roof liner forwards (with clean hands or wearing protective gloves).
Check function.
