52 26 305 Removing and installing/replacing lock cylinder for left/right rear seat backrest (through-loading)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip plate.

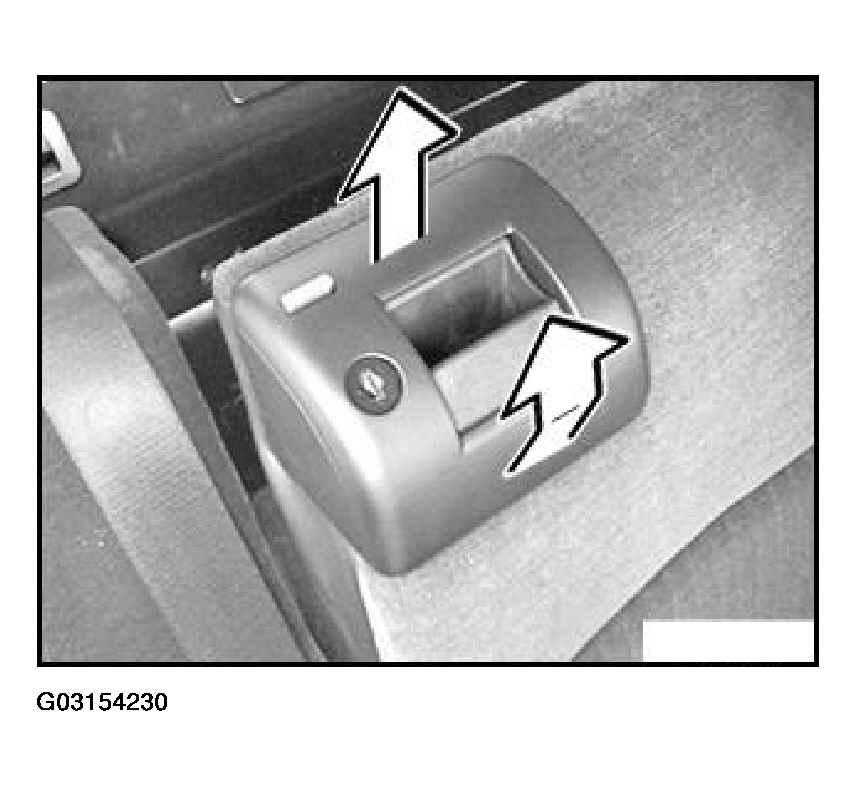

Fig 1: Unclipping Plate

G03154230

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect side of cover (1).

Version with leather cover:

If necessary, shorten cover clips (2) by approx. one half.

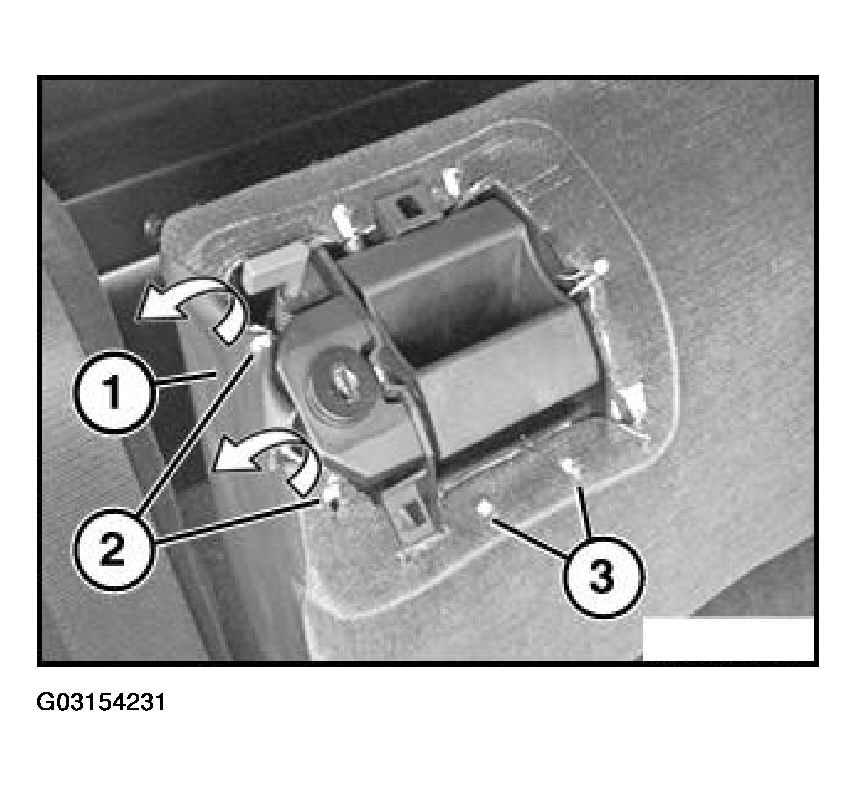

Fig 2: Disconnecting Side Of Cover

G03154231

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten retaining disc (1).

Unclip housing at side and top and pull out.

Installation

The cover must be attached correctly in the front of the cover clips (3).

Insert vehicle key in lock cylinder (1).

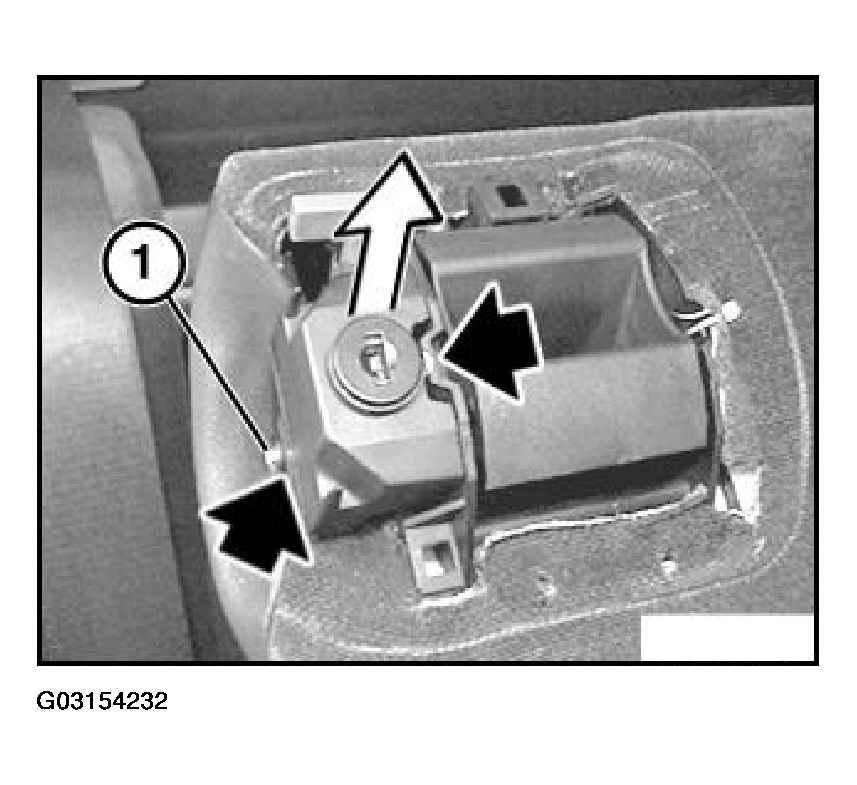

Fig 3: Inserting Vehicle Key In Lock Cylinder

G03154232

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock lock cylinder (1) in housing (2) with special tool 51 3 170 and pull out with vehicle key.

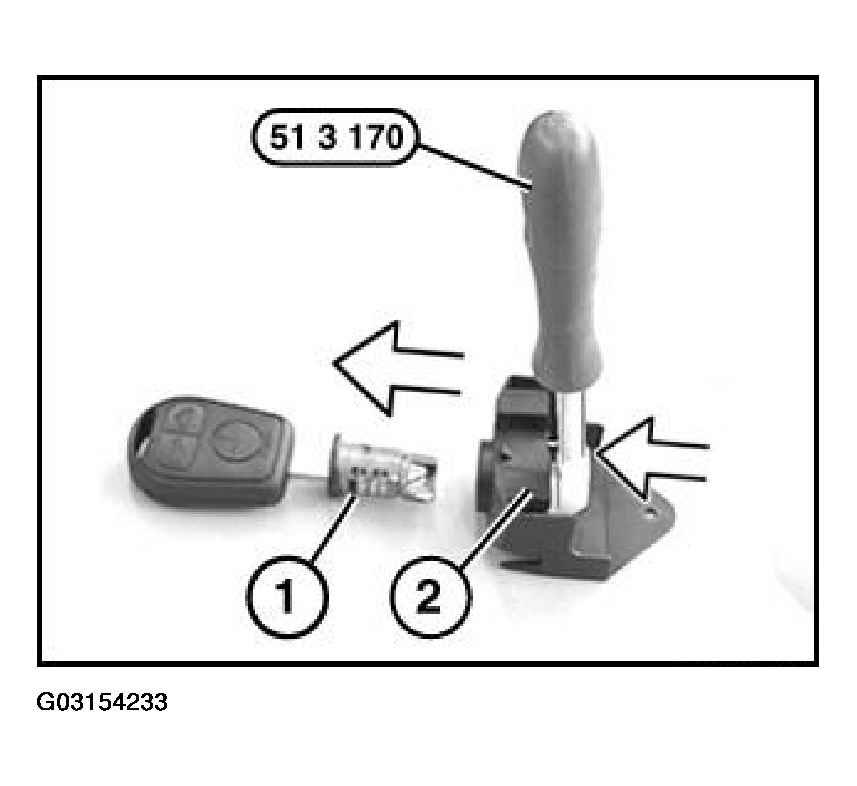

Fig 4: Unlocking Lock Cylinder (1) In Housing (2)

G03154233

Courtesy of BMW OF NORTH AMERICA, INC.
