52 26 015 Removing and installing/replacing left/right rear seat backrest (through-loading)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Removing and installing side of rear seat backrest (through-loading), refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT/RIGHT SIDES OF BACKREST ON REAR SEAT BACKREST

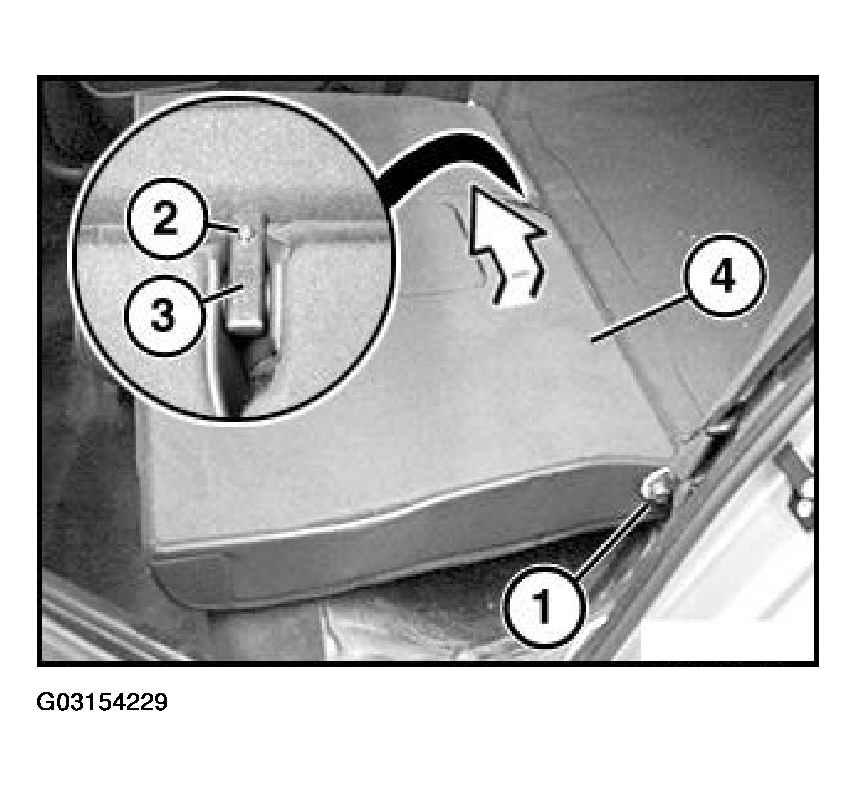

Unscrew bolt (1).
Unfasten screw (2) and remove center mount (3).
Pull backrest (4) upwards / inwards to remove.
