52 24 390 Removing and installing or replacing left or right rear headrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Move headrest up as far as possible.

Press lightly against guides in forward and backward direction and pull out in upward direction.

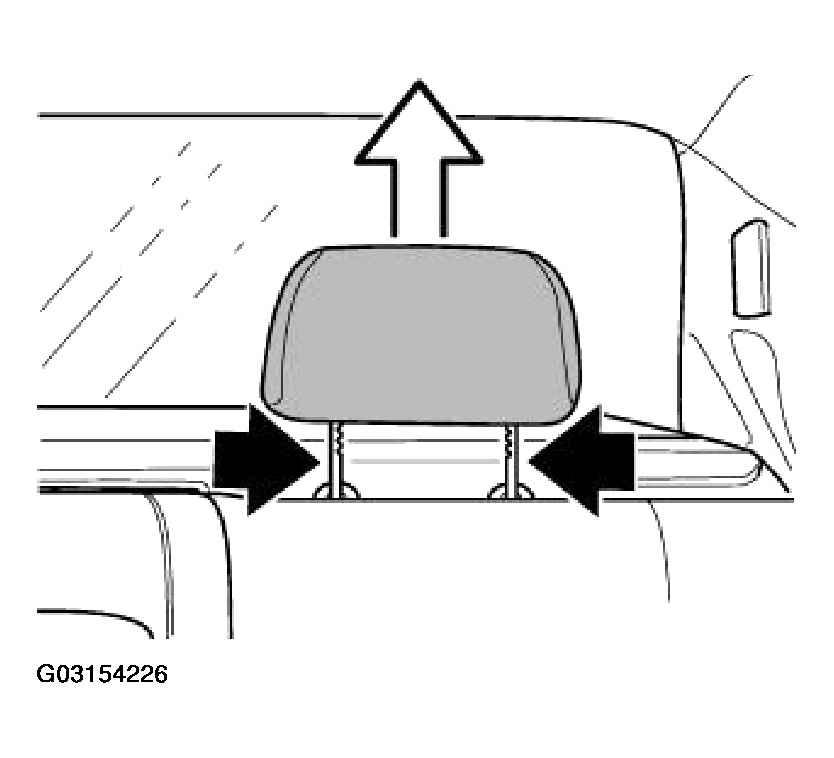

Fig 1: Moving Headrest Up As Far As Possible
G03154226Courtesy of BMW OF NORTH AMERICA, INC.

Twist and pull out guides.

Installation

  1. Notches must face each other.

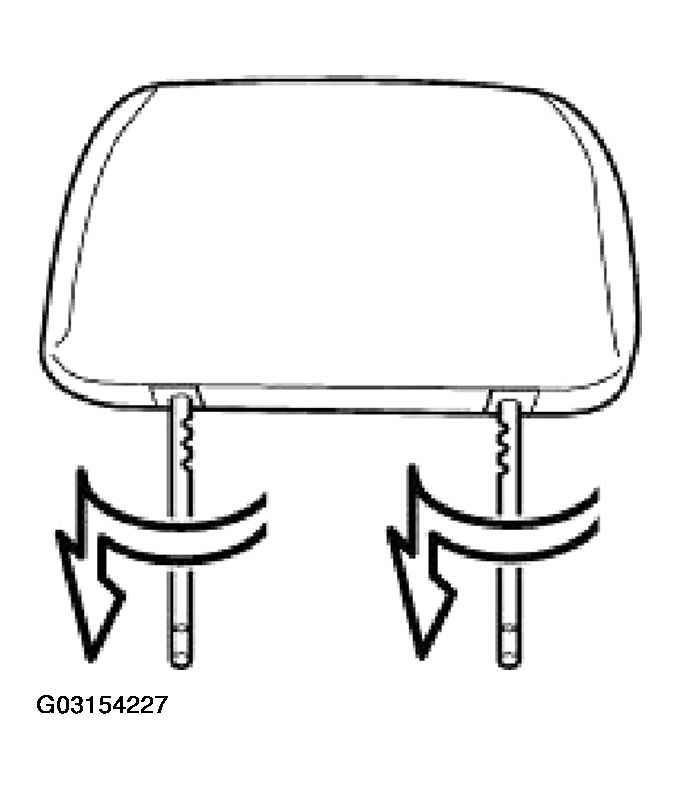

Fig 2: Twisting And Pulling Out Guides
G03154227Courtesy of BMW OF NORTH AMERICA, INC.
