52 24 010 Removing and installing/replacing backrest for rear seat (normal)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat, refer to 52 24 005 REMOVING AND INSTALLING / REPLACING REAR SEAT (NORMAL)

Unscrew screw.

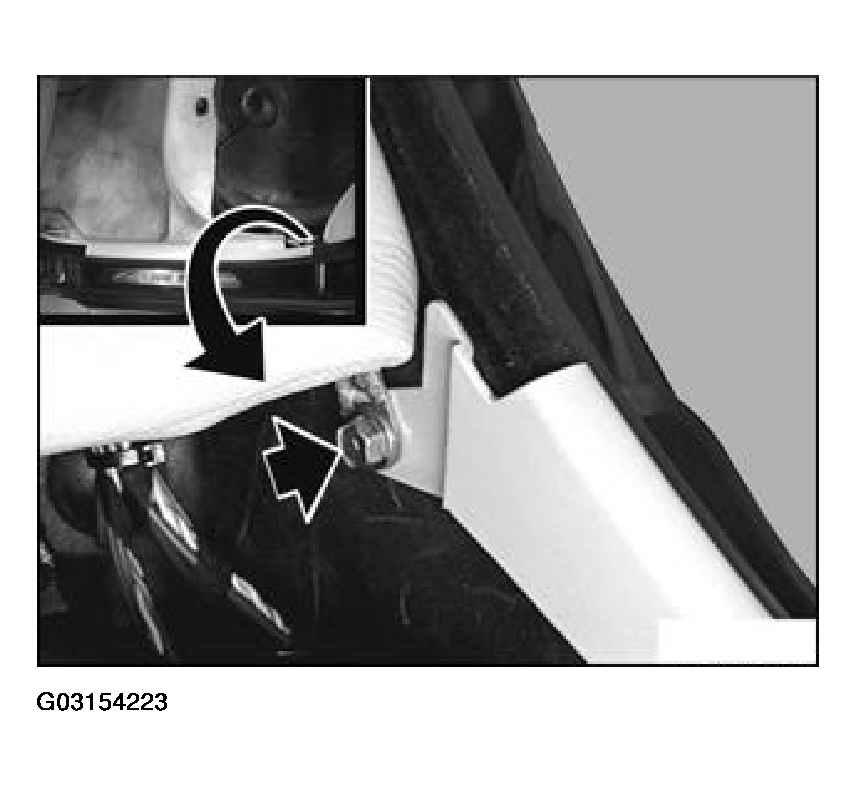

Fig 1: Unscrewing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Move center of headrest (1) as far up as possible and pull upwards forcefully.

Lift backrest (2) upwards and remove from seatbelt tapes.

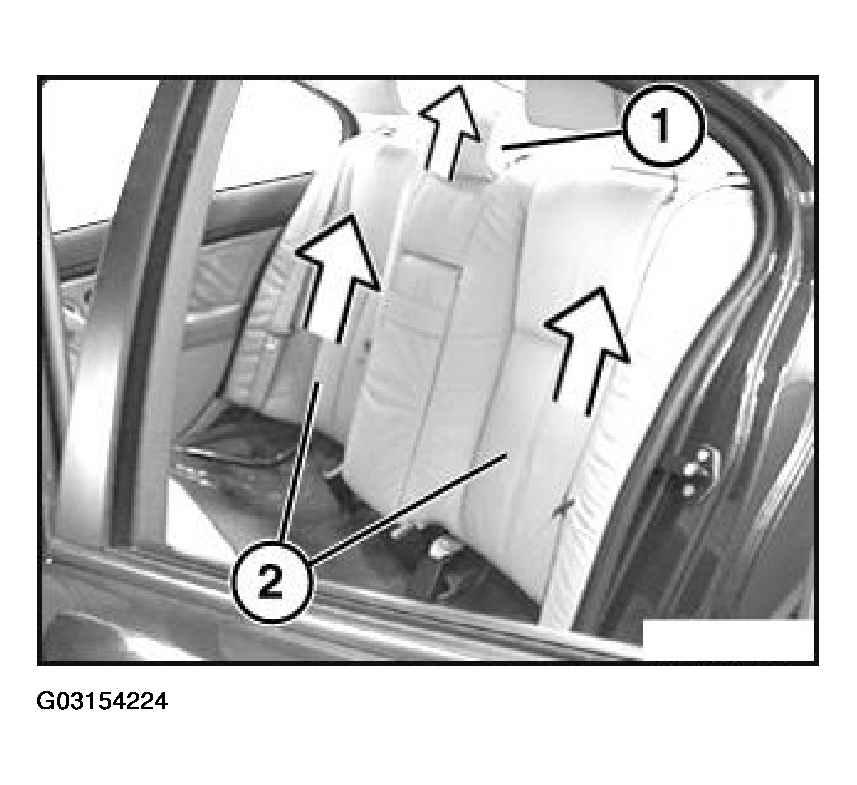

Fig 2: Lifting Backrest Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Locate lugs in tabs and secure rear seat backrest.
