52 13 040 Removing and installing/replacing outer cover on left or right front seat backrest (normal/manual)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten seatbelt screw.

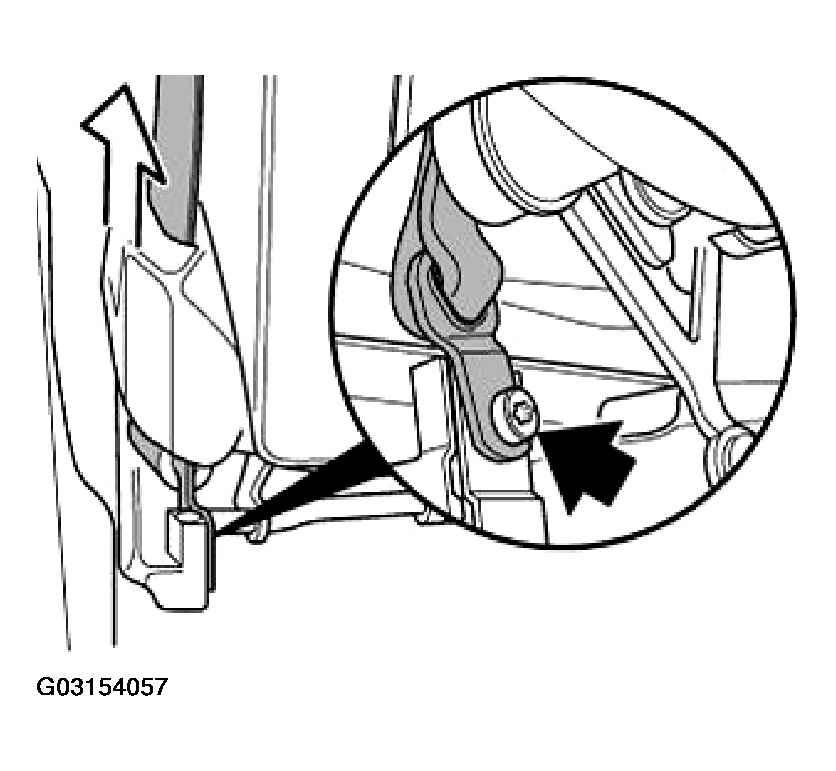

Fig 1: Unfastening Seatbelt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clips (1) (cut off or knock off clip head). Unscrew bolt (2). Pull the lever forward to remove.

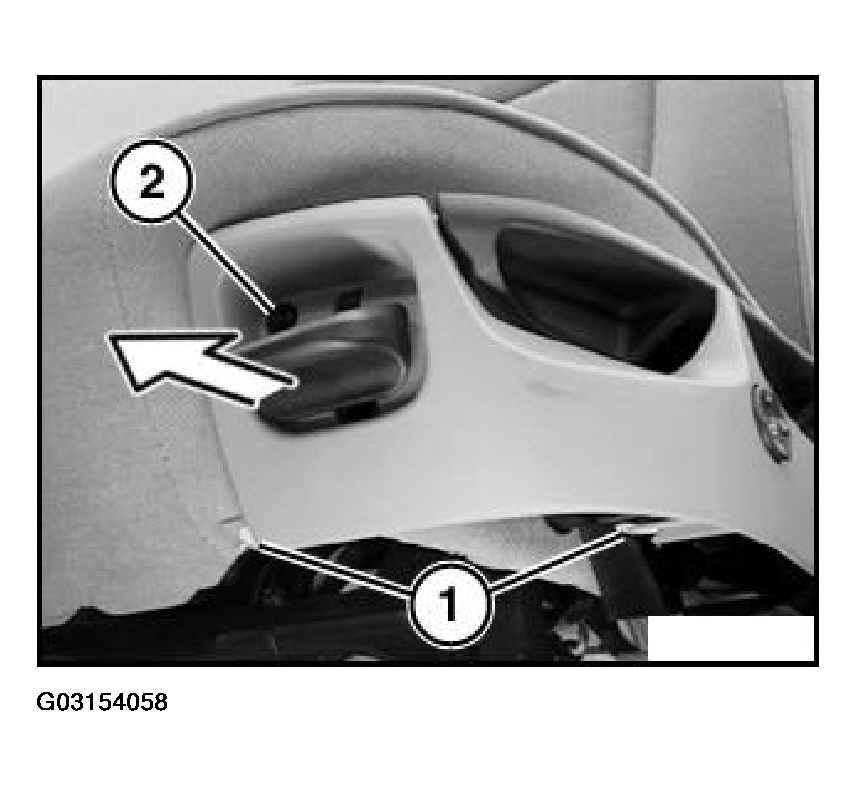

Fig 2: Pulling Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen rear clips.

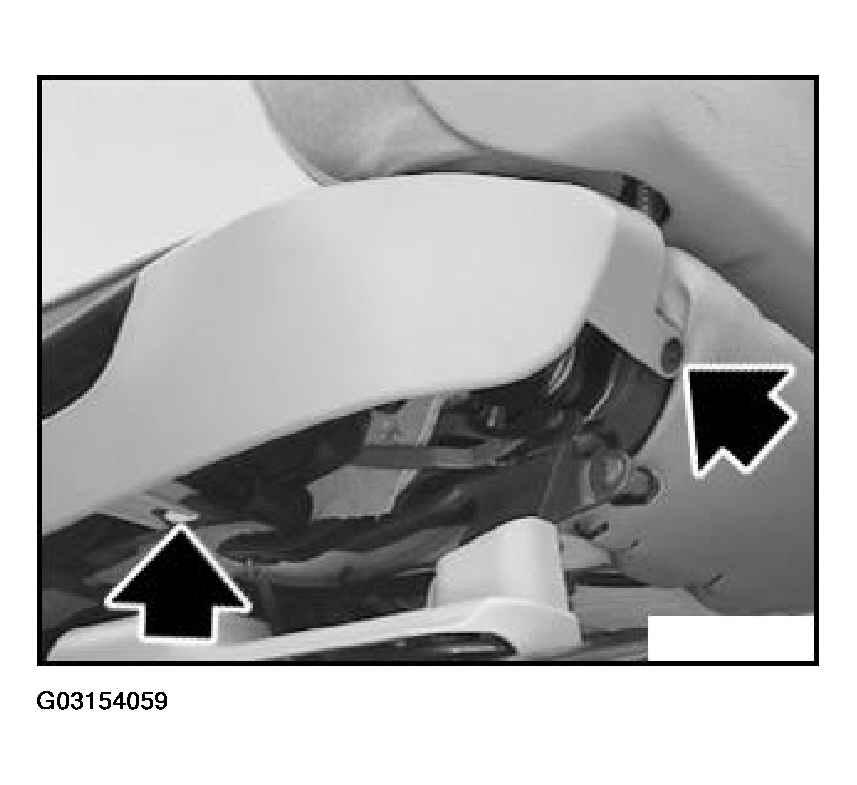

Fig 3: Loosening Rear Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out the rear plate and remove it over the operating levers.

Model with lumbar supports:

Lift the cable out of the retainer (1) if necessary.

If necessary press detents (2) down and press upwards to remove the switch.

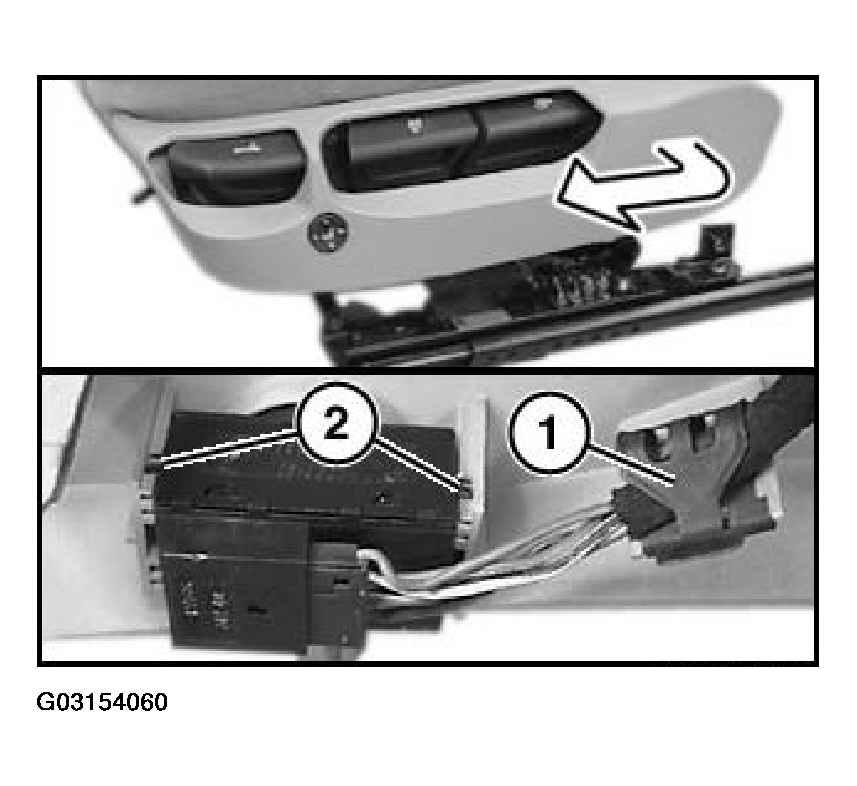

Fig 4: Lifting Cable Out Of Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
