51 24 300 Removing and installing or replacing left or right gas strut for trunk lid

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.

Lift out retaining disc (1) and spring (2). Lift out gas strut.

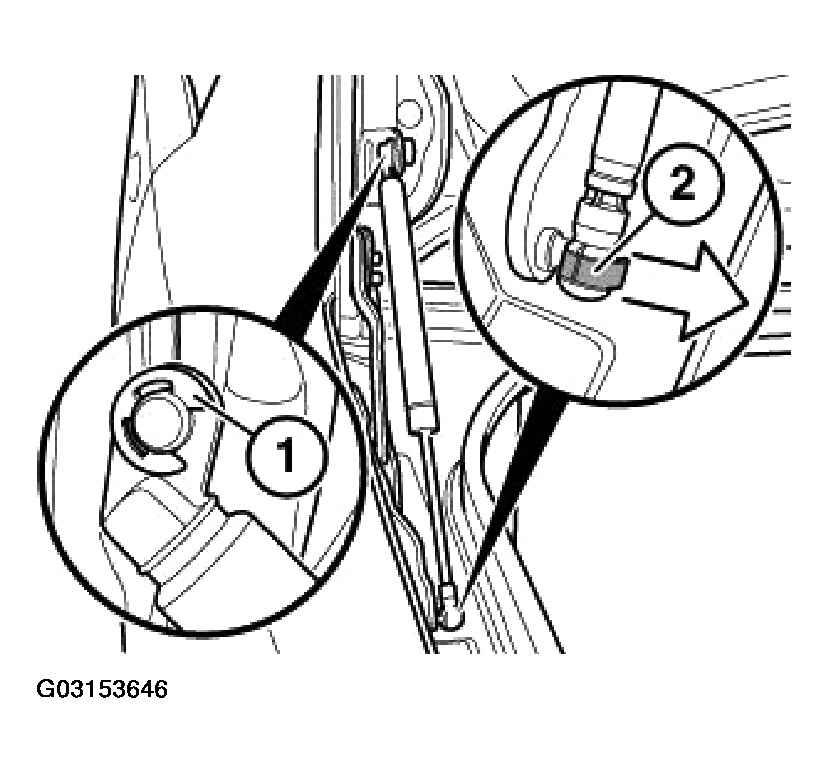

Fig 1: Lifting Out Retaining Disc And Spring

Courtesy of BMW OF NORTH AMERICA, INC.
