51 24 050 Removing and installing/replacing lock (locking cylinder) for trunk lid set

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for bottom of trunk lid, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID

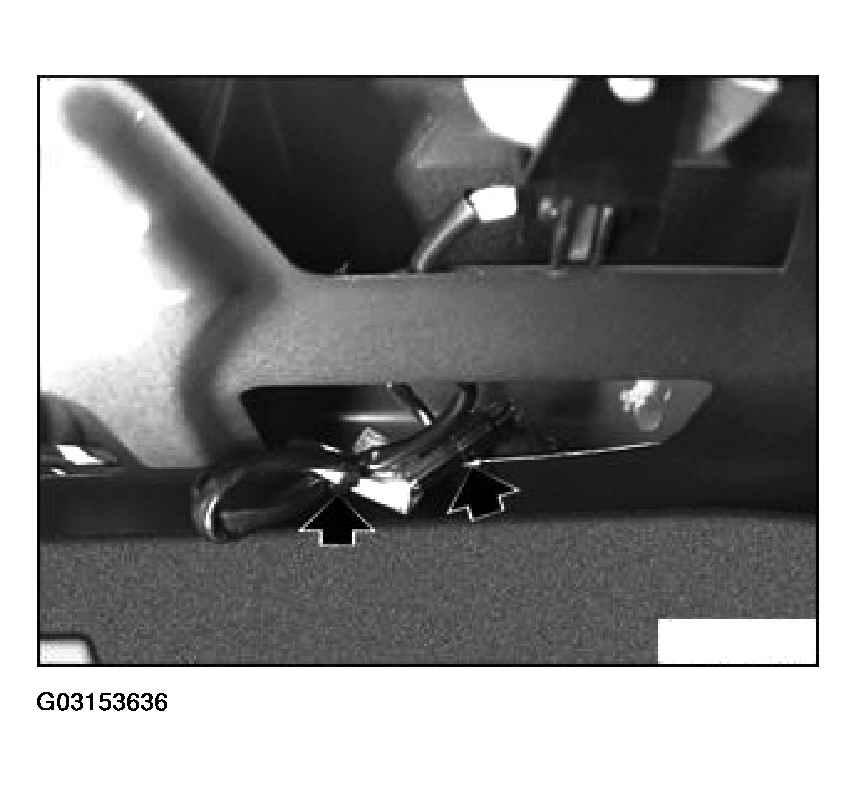

Unfasten cable tie and disconnect plug connection.

Fig 1: Unfastening Cable Tie And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out actuating rod (1).

Unfasten nut and remove connection (2).

Installation

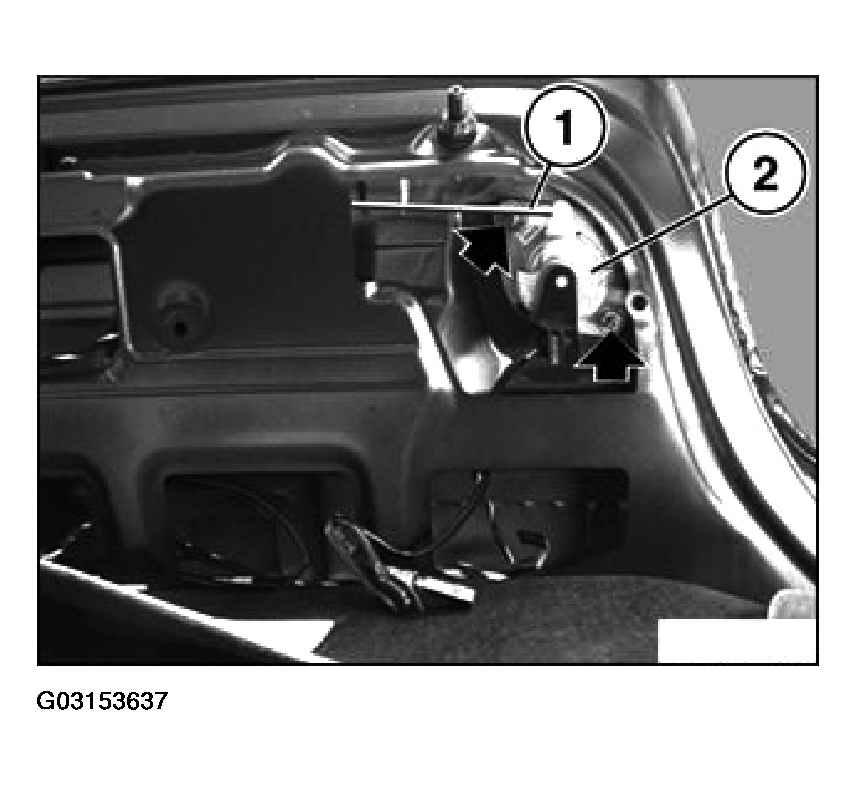

Check that actuating rod (1) is correctly seated.
Locking section (2) must be fitted to center of body aperture.

Fig 2: Locking Section Fitted To Center Of Body Aperture

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Perform function check with trunk lid open.

Only replace:

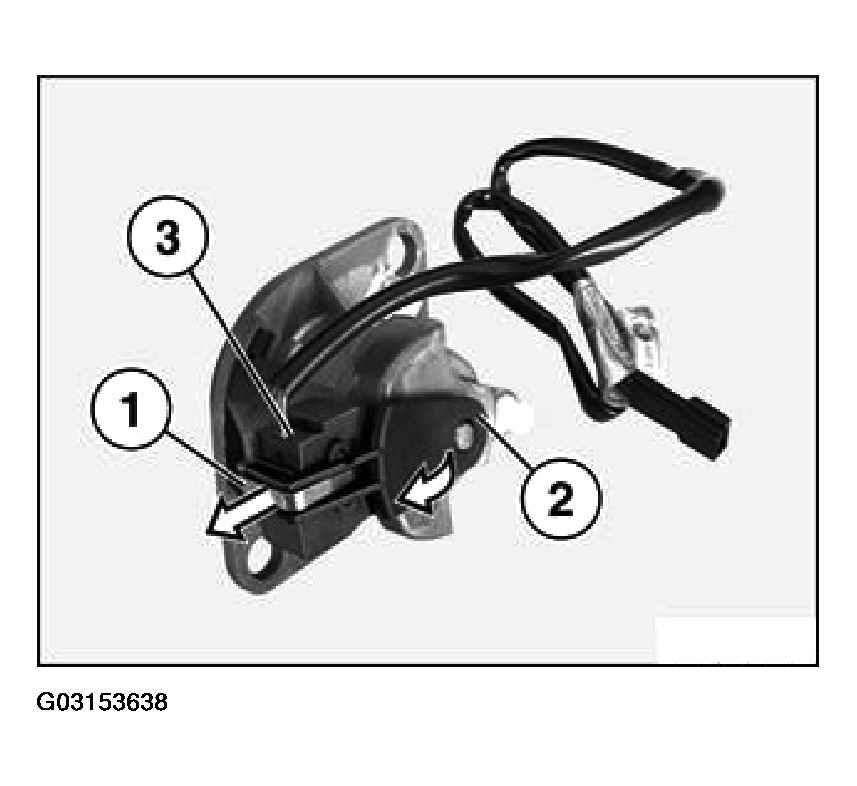

Remove clip (1) lift out bracket (2) and remove micro-switch (3).

Fig 3: Removing Clip Lift Out Bracket And Micro-Switch

Courtesy of BMW OF NORTH AMERICA, INC.
