51 13 065 Removing and installing or replacing finisher on left or right headlight housing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Open hood.

Unfasten inside finisher, press down out of brackets (1) and unclip hooks (2).

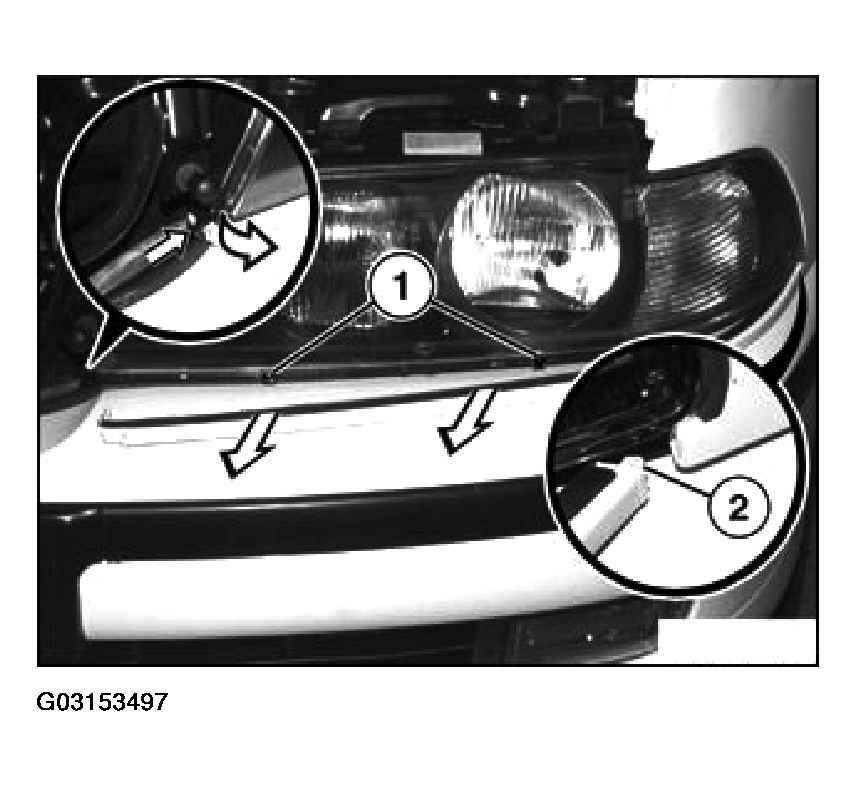

Fig 1: Pressing Down Out Of Brackets And Unclip Hooks
G03153497Courtesy of BMW OF NORTH AMERICA, INC.
