51 44 011 Removing and installing / replacing headliner (with slide/tilt sunroof): Installation:
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

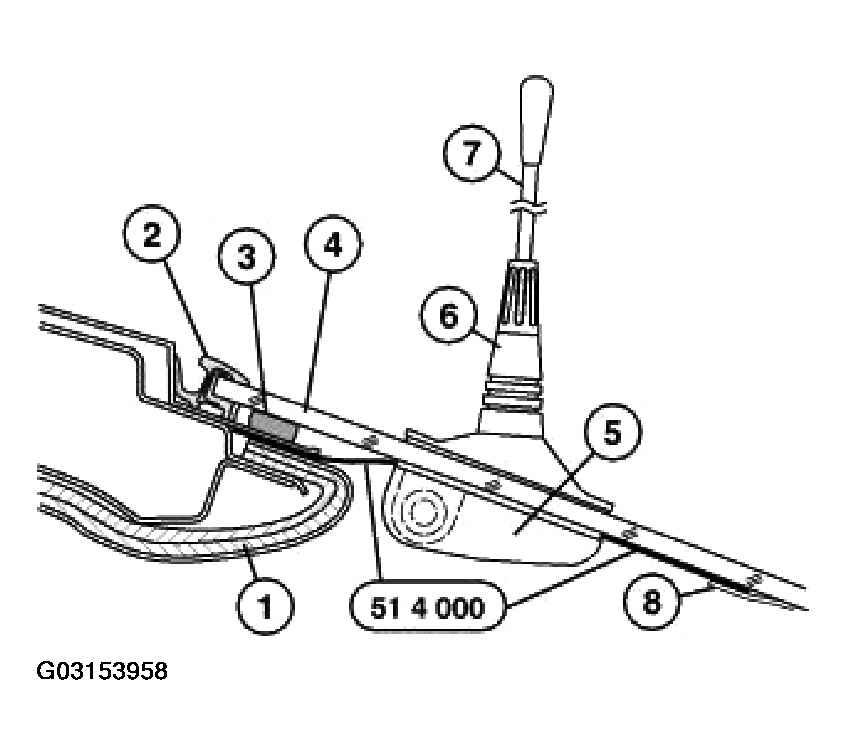

- Press headlining (1) upwards against special tool 51 4 000. Press to limit position and secure.
- Remove special tool 51 4 000 and clean rear window.
- Roof liner
- Seal
- Cement bead
- Rear window
- Switch box
- Antenna foot
- Transmitter
- Fabric adhesive tape
