51 12 801 Replacing bracket for rear bumper at left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(bumper removed)

If necessary, remove and refit complete rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER

Installation

If necessary, mark position of bracket on body.

Unfasten screws and remove bracket (1).

Tightening torque, refer to 51 12 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 540i .

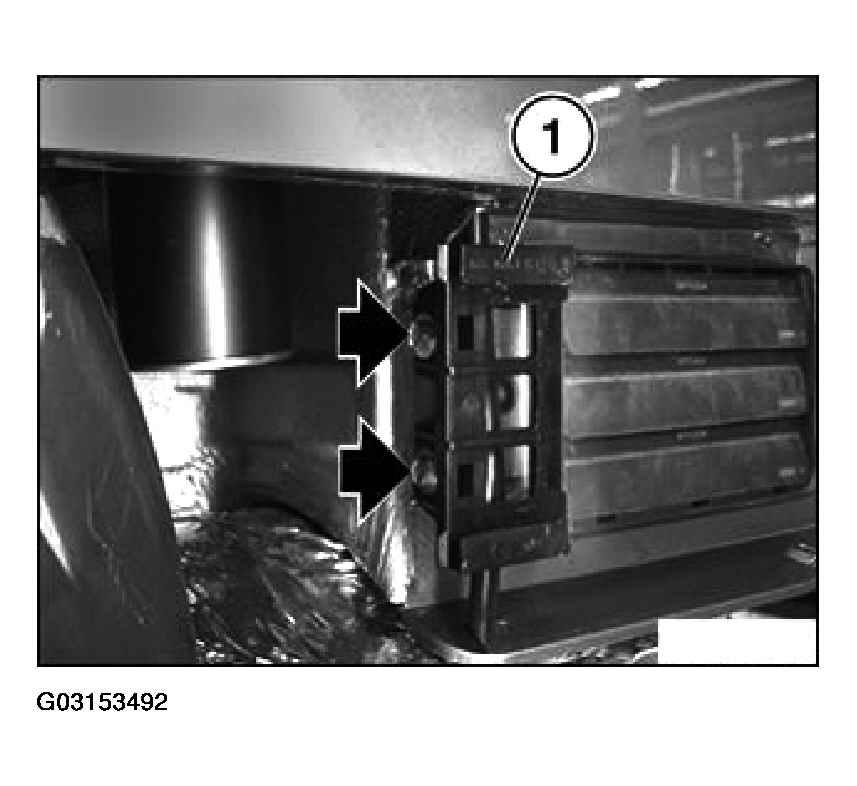

Fig 1: Unfastening Screws And Remove Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Distance (A) on side between bumper and body-cutout is to be the same.

Dimension (A) = 5 +/- 1 mm

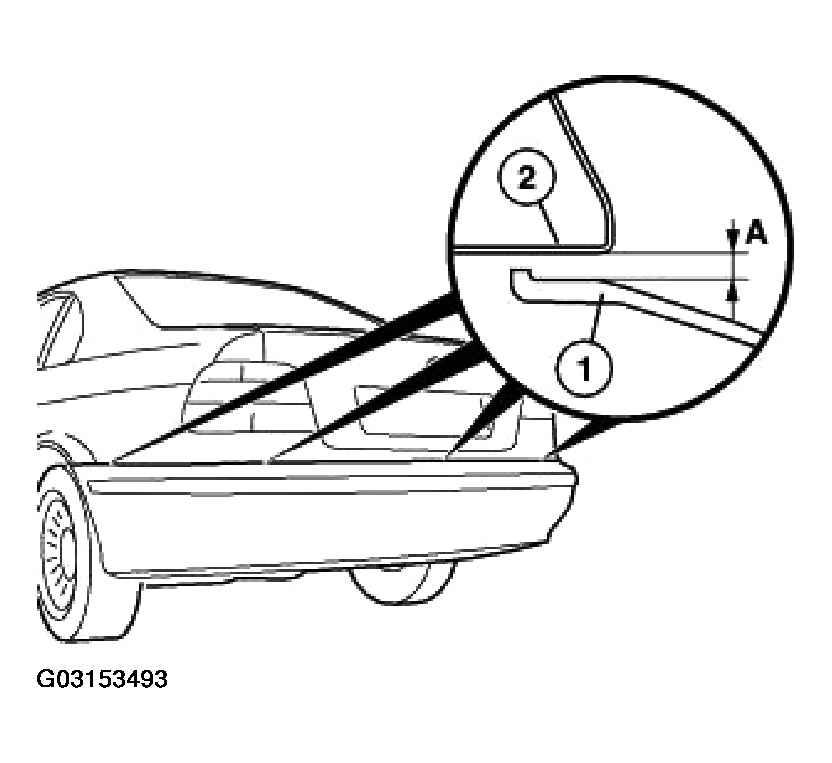

Fig 2: Measuring Dimension Between Bumper And Body-Cutout

Courtesy of BMW OF NORTH AMERICA, INC.
