51 12 432 Replacing central body molding on rear bumper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

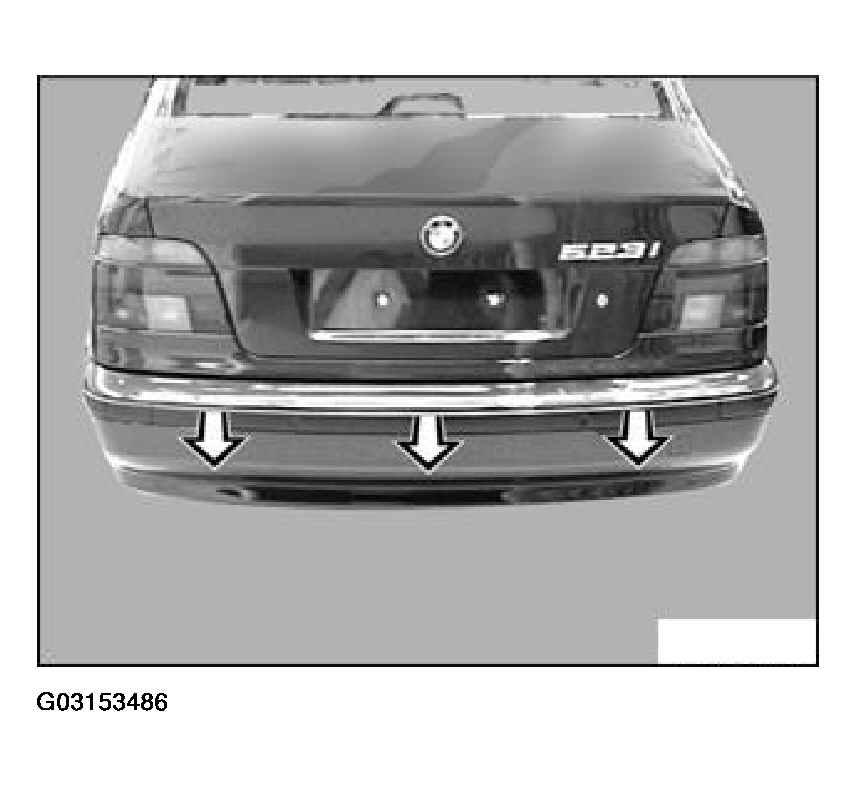

Version without Park Distance Control (PDC):

Unclip and remove body molding with special tool 00 9 321 (folding strut).

Fig 1: Identifying Version Without Park Distance Control

Courtesy of BMW OF NORTH AMERICA, INC.

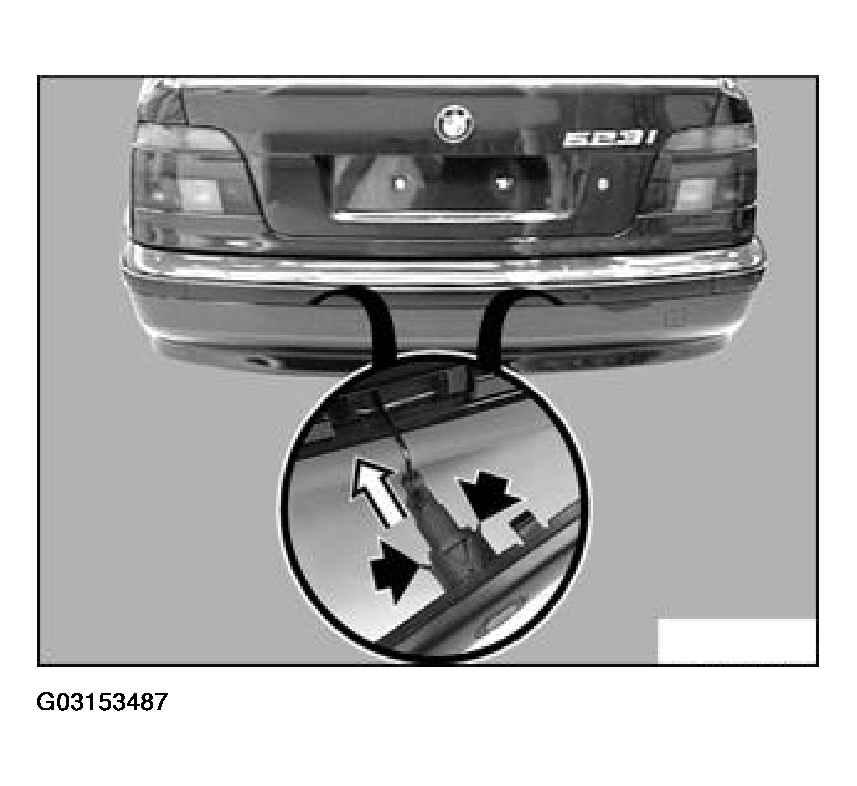

Version with Park Distance Control (PDC):

Unclip body molding, unfasten ultrasonic converter and remove.

Fig 2: Unclipping Body Molding, Unfasten Ultrasonic Converter

Courtesy of BMW OF NORTH AMERICA, INC.

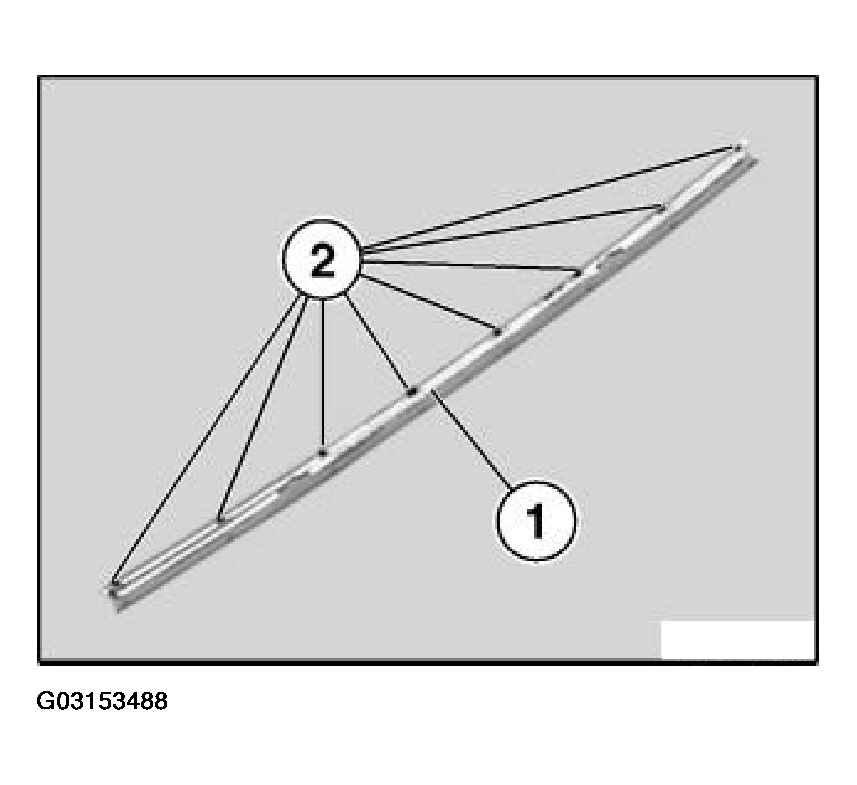

Lift chrome strip (1) out of clips (2) in body molding and remove.

Fig 3: Lifting Chrome Strip Out Of Clips In Body Molding

Courtesy of BMW OF NORTH AMERICA, INC.
