51 34 380 Removing and installing/replacing decorative strip on rear door (top), left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Partly remove rubber seal (1) at top.

Fig 1: Removing Rubber Seal At Top

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out decorative strip (1) with clips (2).

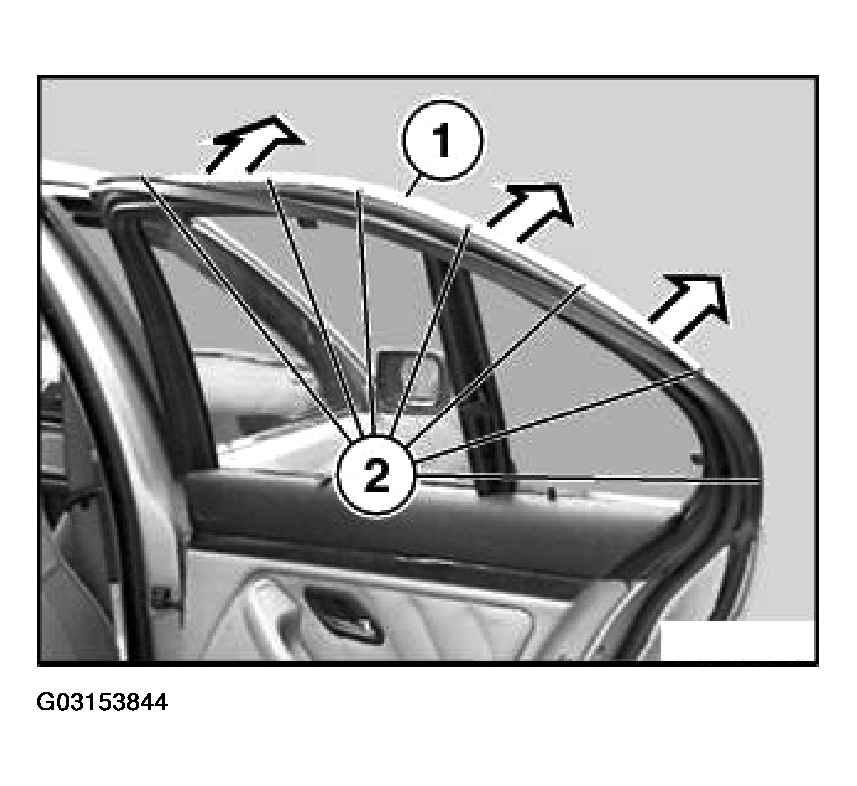

Fig 2: Pulling Out Decorative Strip With Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Remove faulty clips (2) from decorative strip (1) and replace with new clips (3).

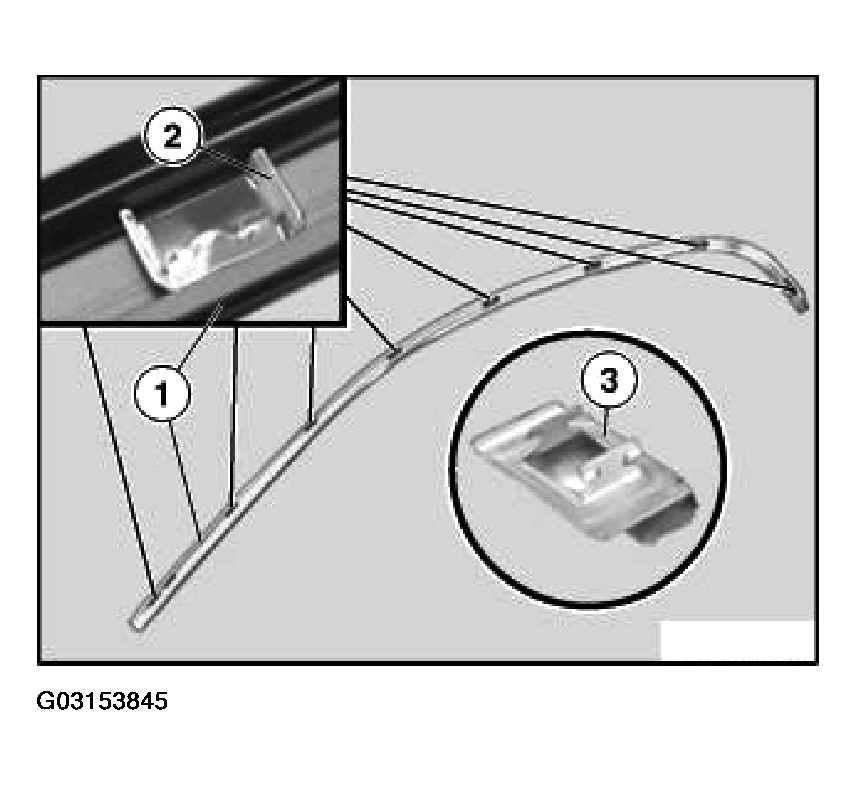

Fig 3: Removing Faulty Clips From Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.
