51 34 160 Removing and installing/replacing cover on door window frame (rear door), left or right (Protection)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear left or right door trim,

refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

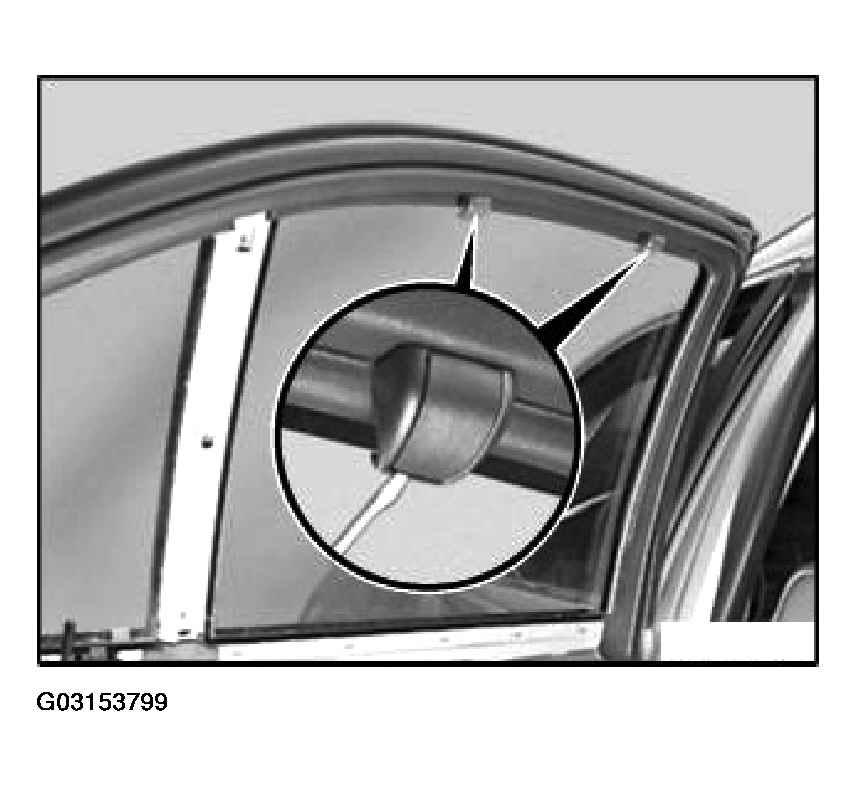

Open bracket for roller sun blind.

Fig 1: Removing Rear Left Or Right Door Trim
G03153799Courtesy of BMW OF NORTH AMERICA, INC.

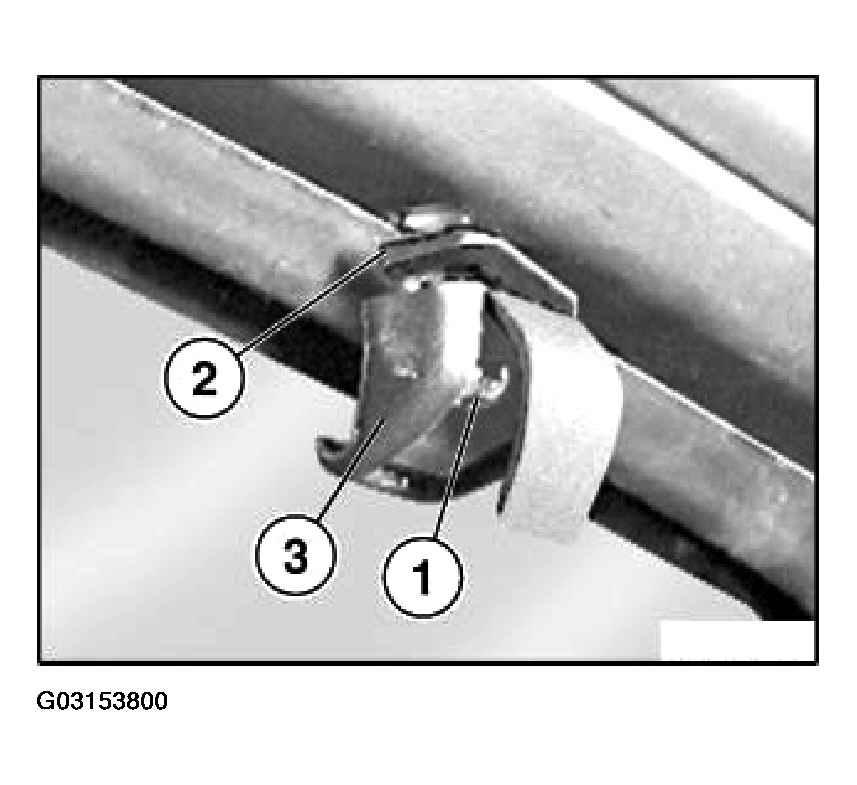

Unscrew bolt (1).

Installation

  1. Note installation sequence of adapter (2) and bracket (3).
Fig 2: Installing Bolt In Sequence Of Adapter And Bracket
G03153800Courtesy of BMW OF NORTH AMERICA, INC.

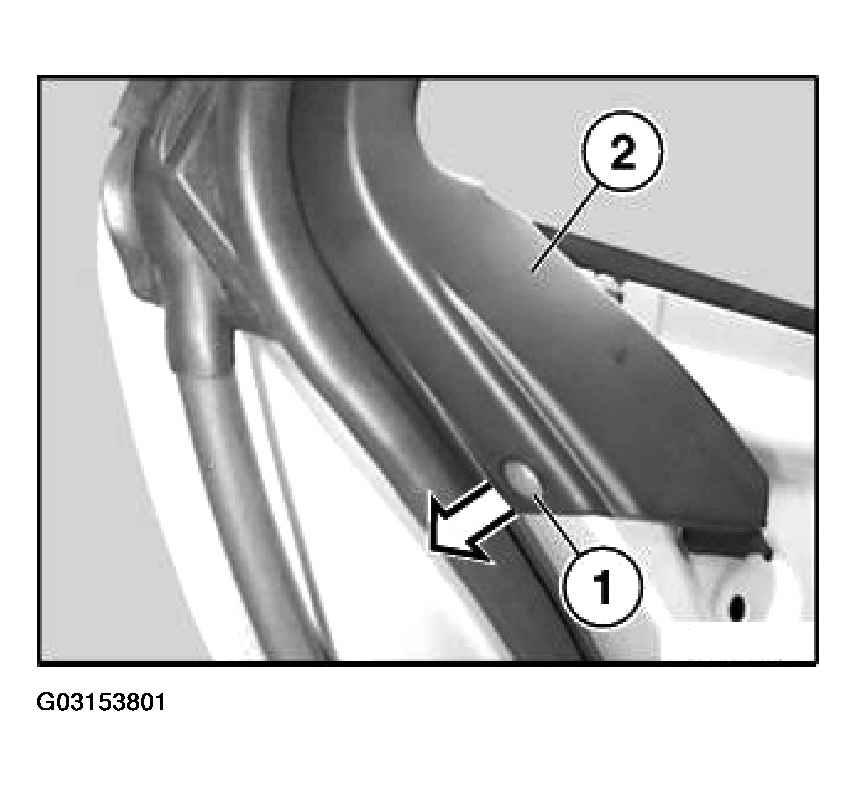

Lever rivet (1) out of cover (2).

Fig 3: Levering Rivet Out Of Cover
G03153801Courtesy of BMW OF NORTH AMERICA, INC.

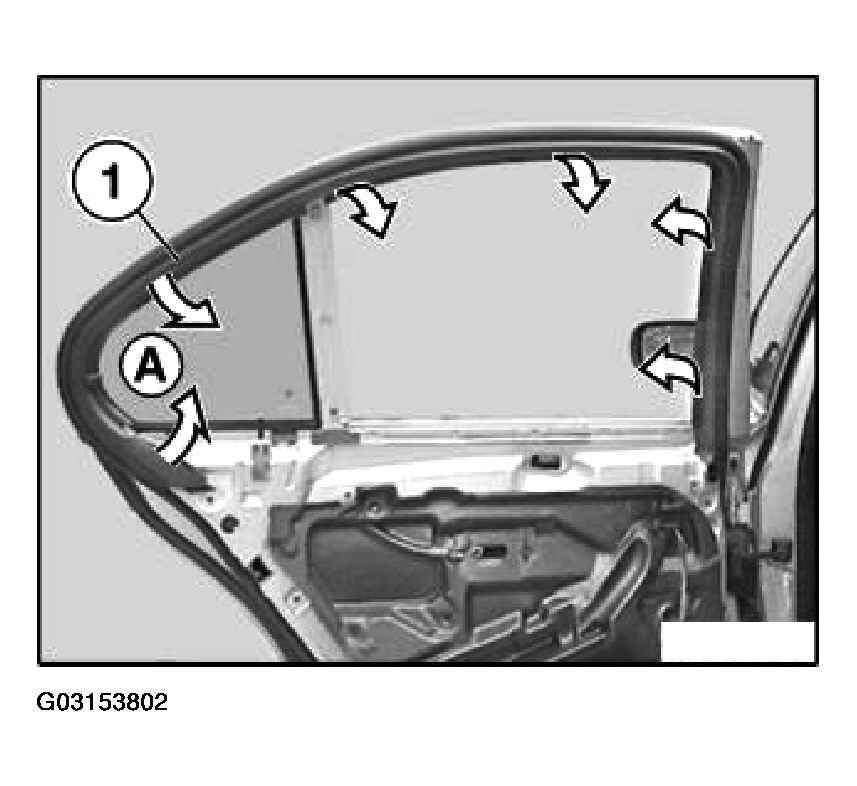

Lift out and remove cover (1) first at rear (A), top (B) and then front (C).

Fig 4: Lifting Out And Removing Cover First At Rear, Top And Then Front
G03153802Courtesy of BMW OF NORTH AMERICA, INC.
