51 34 160 Removing and installing/replacing cover (trapping protection) on door window frame (rear door), inside left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install cover on fixed door window of inside rear door,

refer to 51 34... REMOVING AND INSTALLING/REPLACING COVER ON FIXED DOOR WINDOW OF REAR DOOR, INSIDE LEFT OR RIGHT

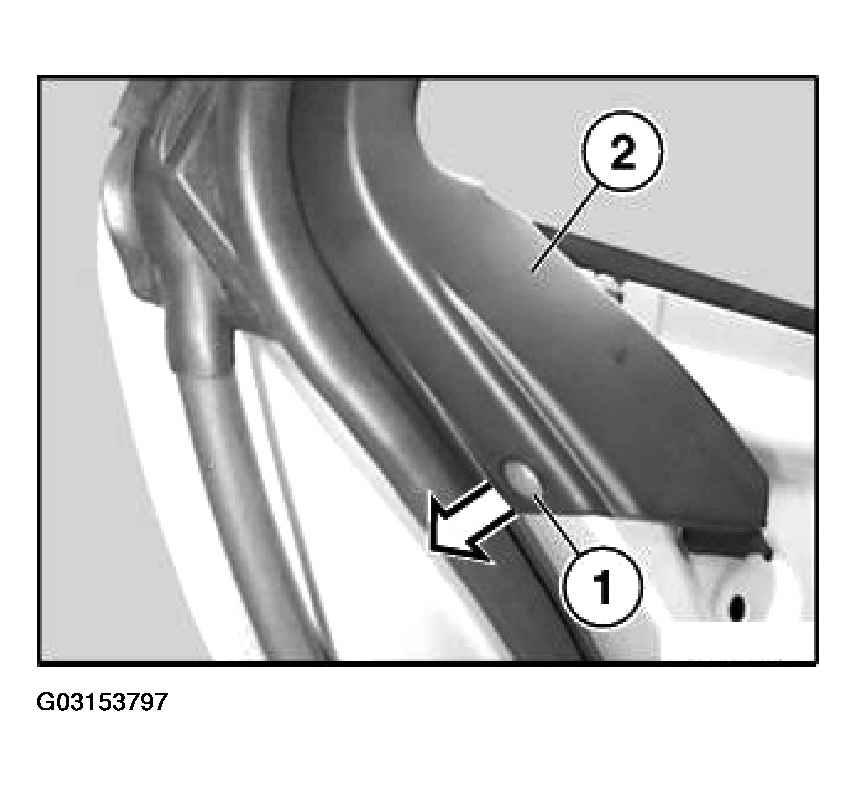

Lever rivet (1) out of cover (2).

Fig 1: Levering Rivet Out Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

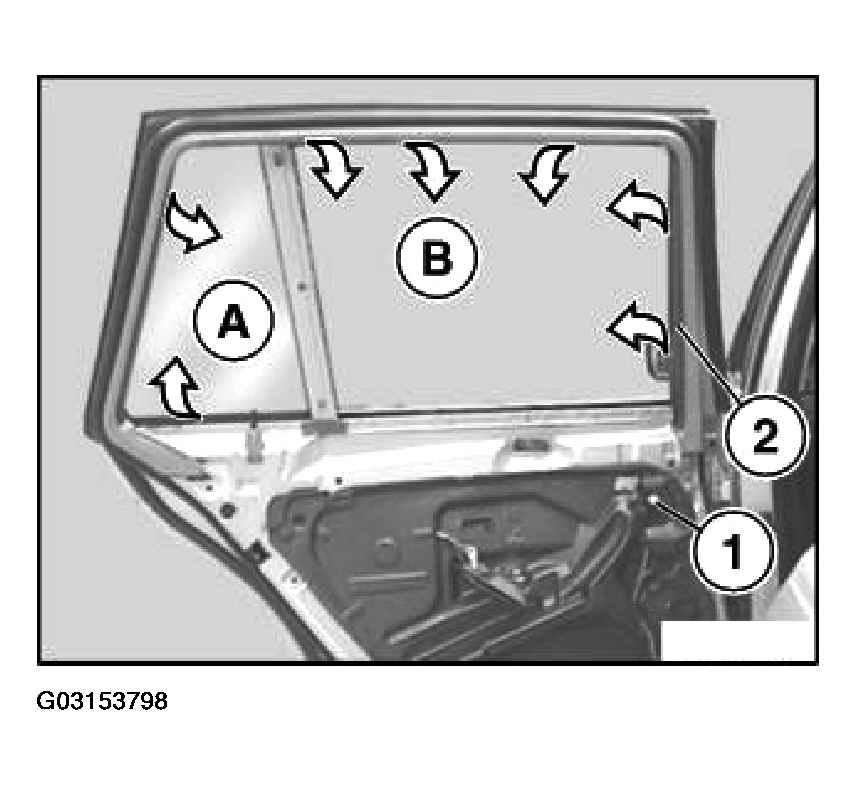

Disconnect connector (1).

Lever out cover (2) first at rear (A), then at top (B) and then at front (C) and remove.

Installation

Check function.

Fig 2: Levering Out Cover First At Rear

Courtesy of BMW OF NORTH AMERICA, INC.
