51 49 000 Removing and installing/replacing trim for trunk lid (top)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for bottom of trunk lid,

refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER TRUNK LID

Lift off cover caps (1) and loosen screws.

Open tool box, lift out catch band and lift tool box upwards to remove.

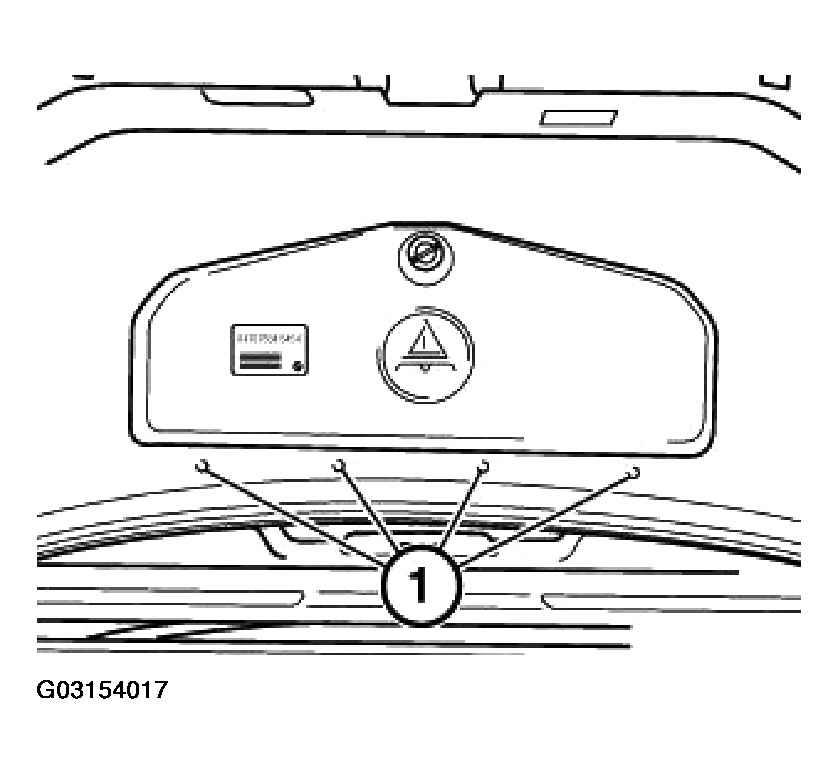

Fig 1: Lifting Off Cover Caps And Loosen Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out luggage compartment light (1).

Unfasten clips (2) and remove trim for trunk lid.

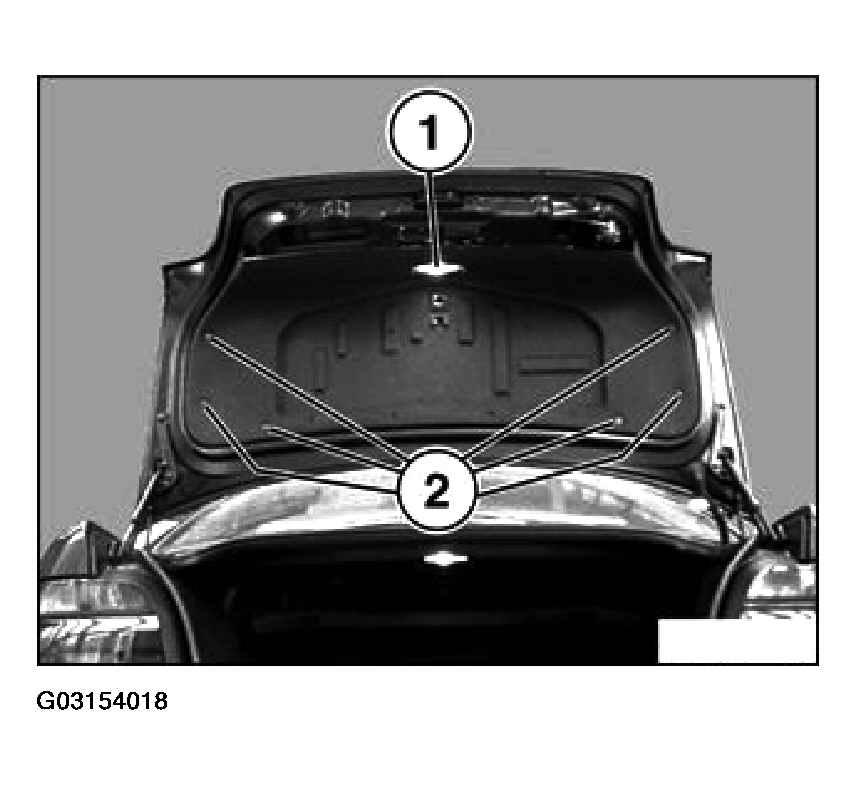

Fig 2: Unfastening Clips And Removing Trim For Trunk Lid

Courtesy of BMW OF NORTH AMERICA, INC.
