51 42 001 Replacing left or right rear door trim

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing rear door trim,

refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL

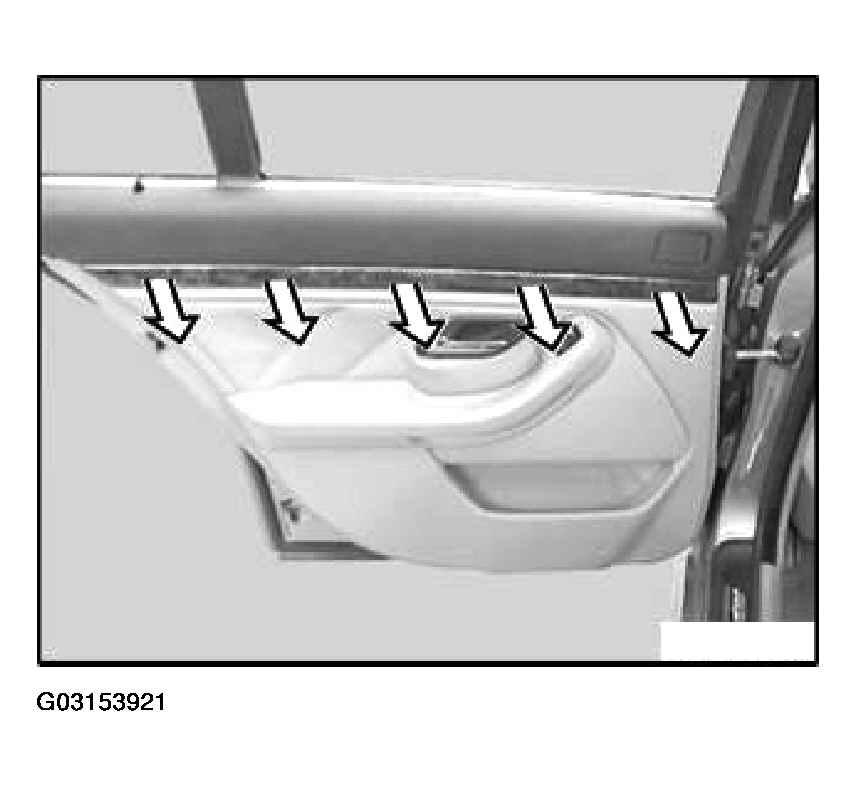

Pull wooden strip backwards to remove.

Fig 1: Pulling Wooden Strip Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

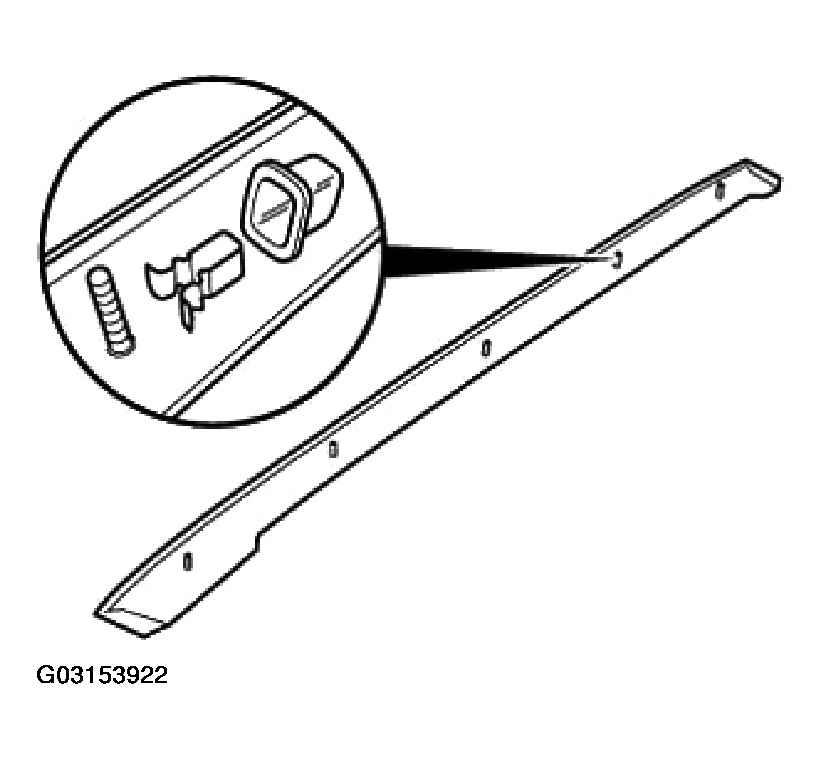

If necessary, replace damaged clips and/or grommets for wooden strip.

Fig 2: Replacing Damaged Clips And/Or Grommets For Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Version with loudspeaker:

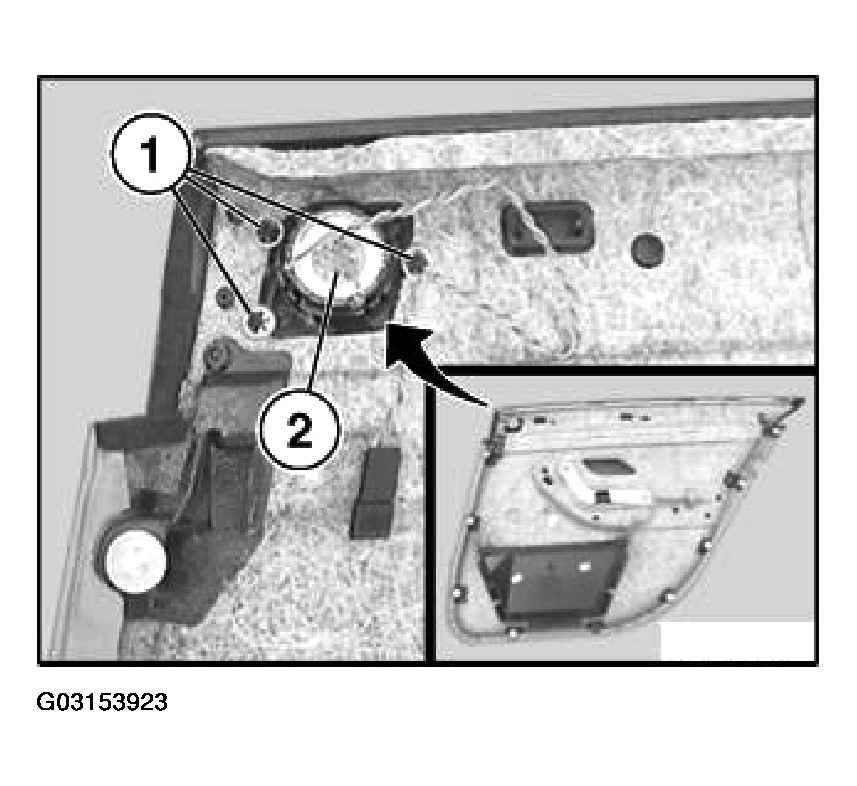

If necessary, pull off retaining disks (1) and remove loudspeaker (2).

Fig 3: Pulling Off Retaining Disks And Removing Loudspeaker

Courtesy of BMW OF NORTH AMERICA, INC.
