51 42 001 Replacing door trim panel, rear left or right (Protection)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove REAR DOOR TRIM PANEL ,

refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Version with loudspeaker:

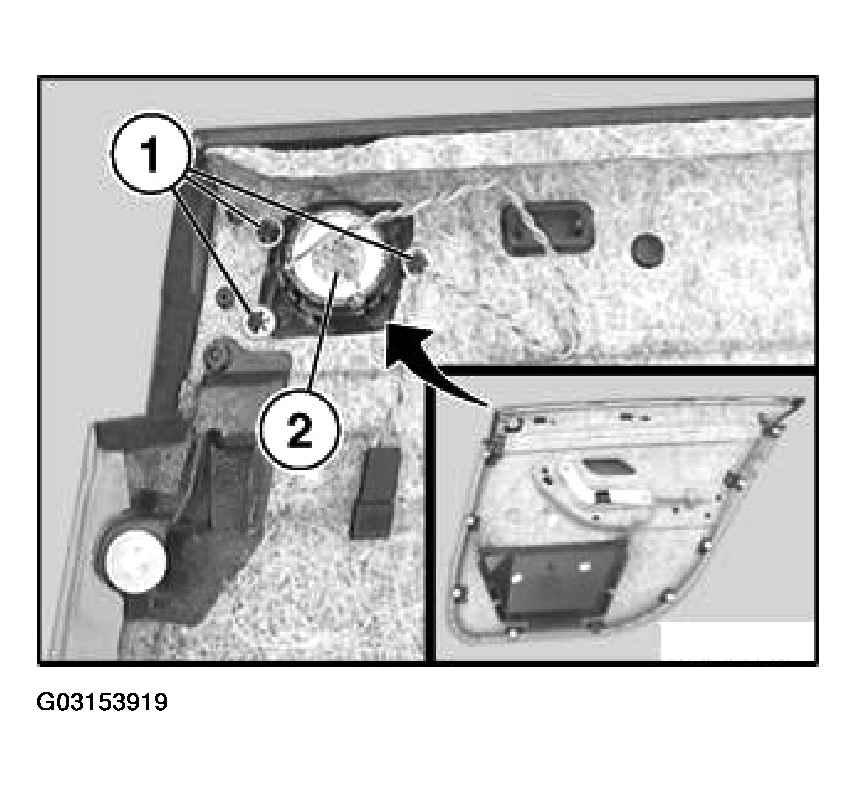

If necessary, pull off retaining disks (1) and remove loudspeaker (2).

Fig 1: Pulling Off Retaining Disks And Remove Loudspeaker

Courtesy of BMW OF NORTH AMERICA, INC.

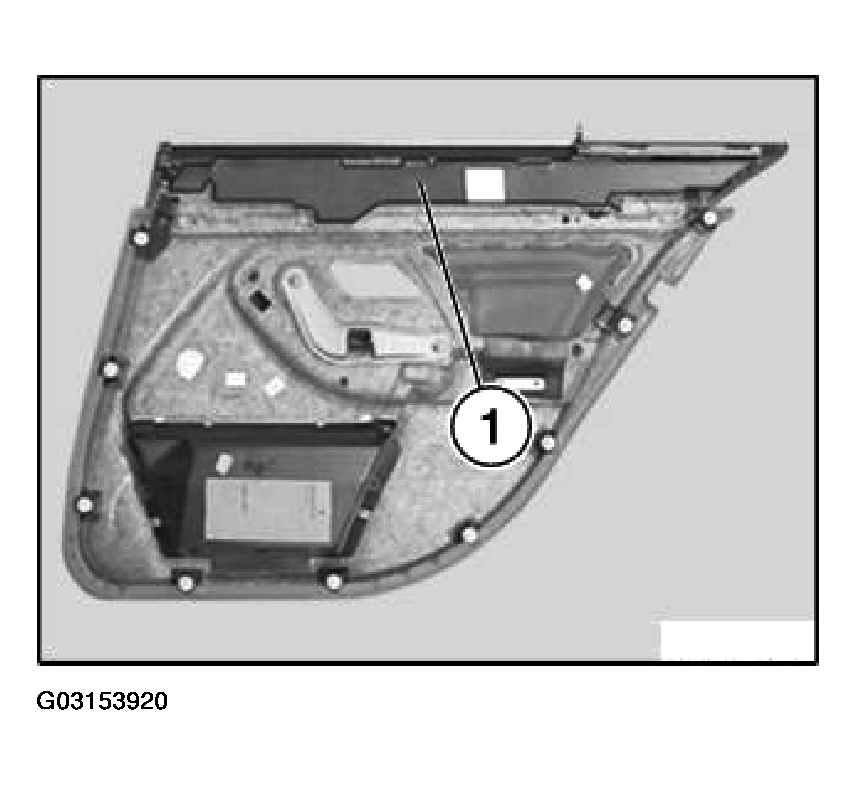

Stick protective mat (1) to inside of new door trim panel with butylene tape (sourcing reference: BMW Part).

Replace all clips.

Fig 2: Replacing All Clips

Courtesy of BMW OF NORTH AMERICA, INC.
