51 22 170 Removing and installing / replacing outside handle on left or right back door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Lift out seal plugs (1) and (2).

Mask the area around the bore with fabric adhesive tape (risk of damage).

Installation

Fit new seal plugs.

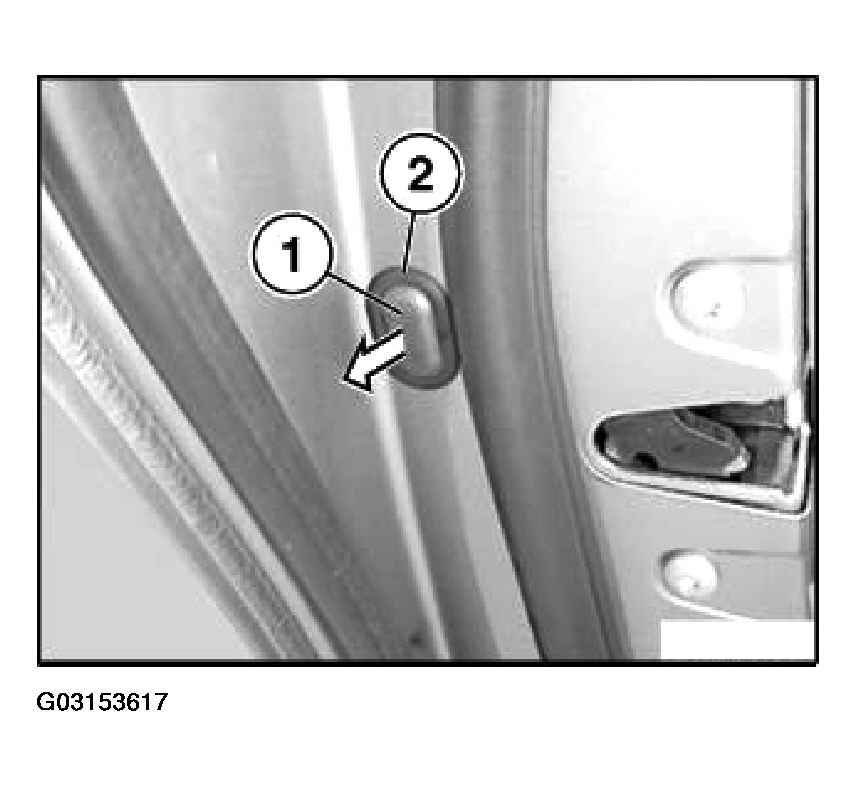

Fig 1: Fitting New Seal Plugs

G03153617

Courtesy of BMW OF NORTH AMERICA, INC.

Cut off foam tape around area (1) with knife (razor-sharp).

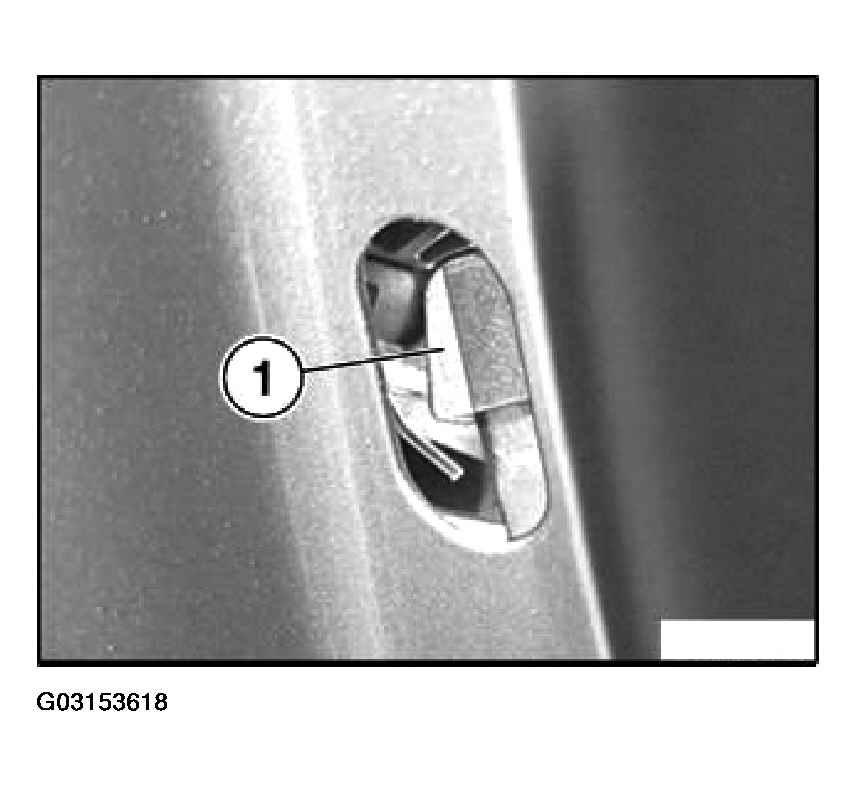

Fig 2: Cutting Off Foam Tape Around Area With Knife

G03153618

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screwdriver (A) and lift retaining tab (1) on locking plate (2) over the retaining lug (3).

Installation

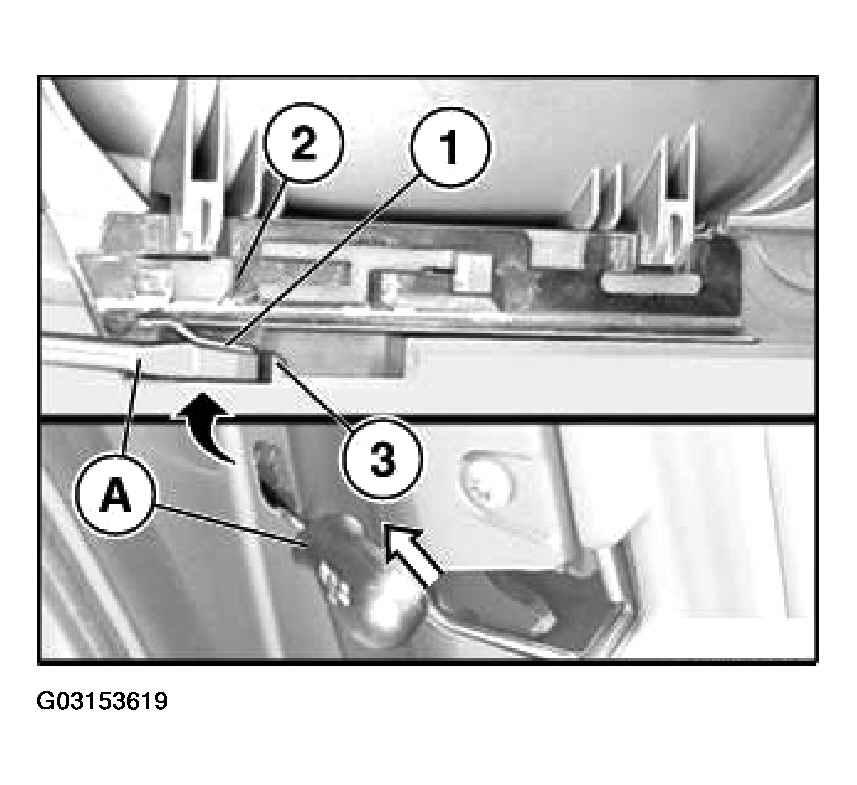

Fig 3: Inserting Screwdriver And Lift Retaining Tab On Locking Plate Over Retaining Lug

G03153619

Courtesy of BMW OF NORTH AMERICA, INC.

Using small screwdriver (B) (0.4 x 2 mm), press locking plate (2) with raised retaining tab (1) forwards.

Remove both screwdrivers.

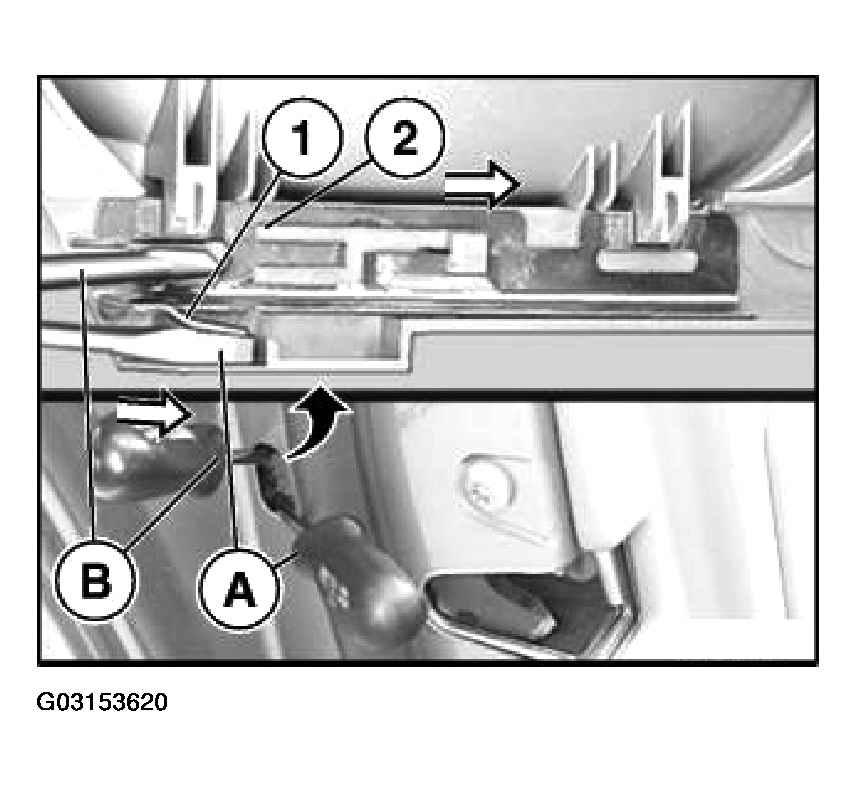

Fig 4: Using Small Screwdriver And Pressing Locking Plate With Raised Retaining Tab Forwards

G03153620

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out lower edge of outside handle and pull obliquely downwards to remove.

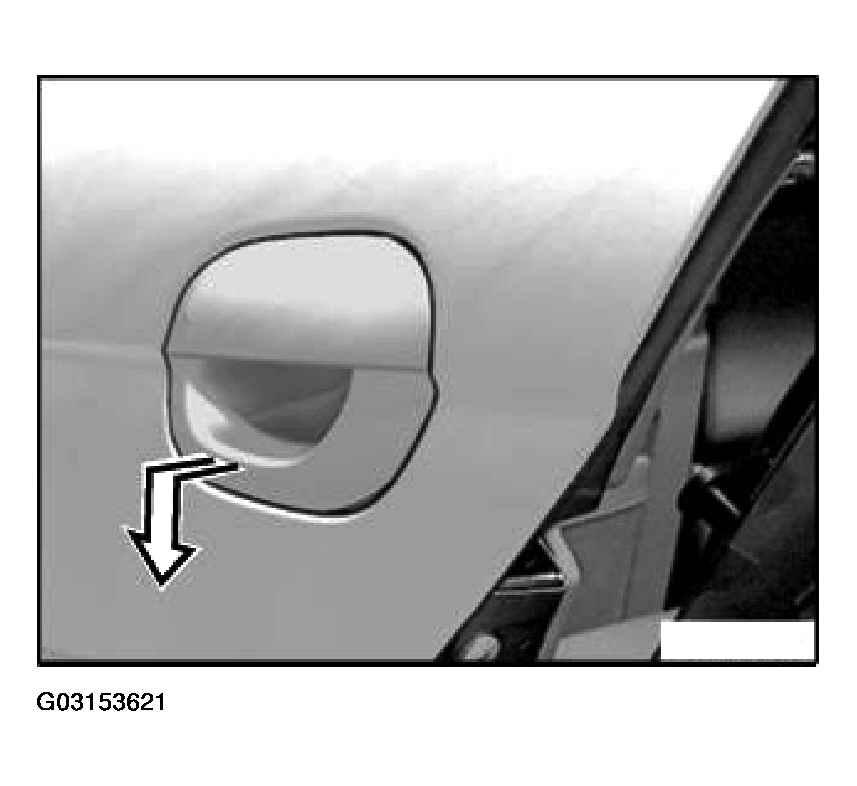

Fig 5: Lifting Out Lower Edge Of Outside Handle And Pulling Obliquely Downwards

G03153621

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Insert screwdriver (B) (0.4 x 2 mm) in locking plate (2) and pull it backwards until the retaining tab (1) engages audibly.
Perform function check with opened rear door.

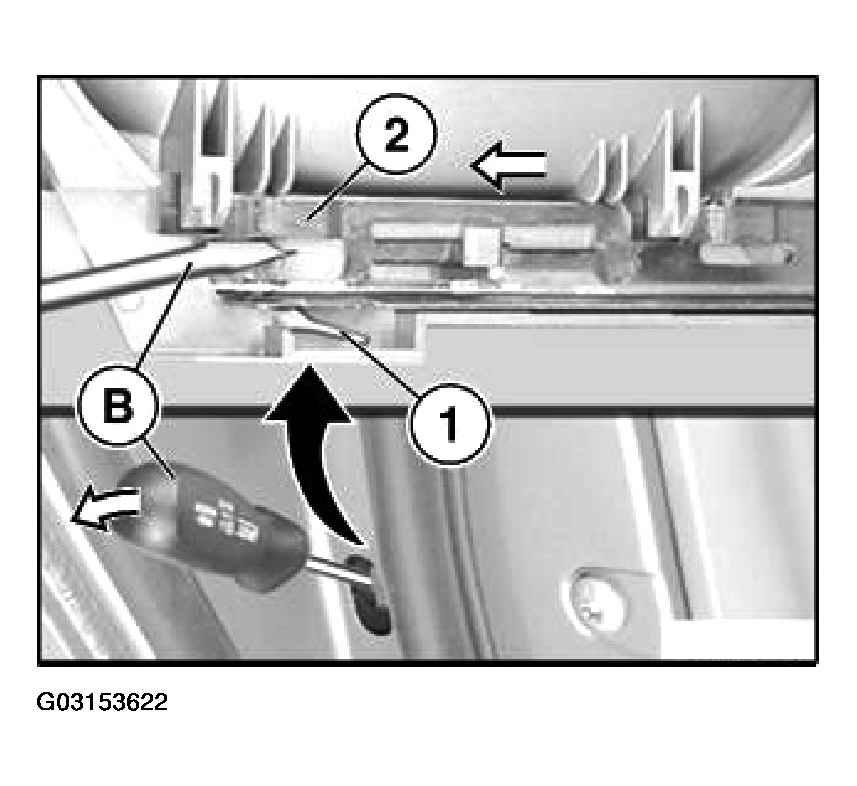

Fig 6: Inserting Screwdriver In Locking Plate

G03153622

Courtesy of BMW OF NORTH AMERICA, INC.
