51 22 090 Removing and installing / replacing door lock on left or right rear door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Close window on rear door then open the other windows.
Disconnect battery negative lead.
Remove door trim panel, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .
NOTE:
To release or partially detach sound insulation, follow procedure in "Removing and installing/replacing sound insulation on left or right rear door", refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .

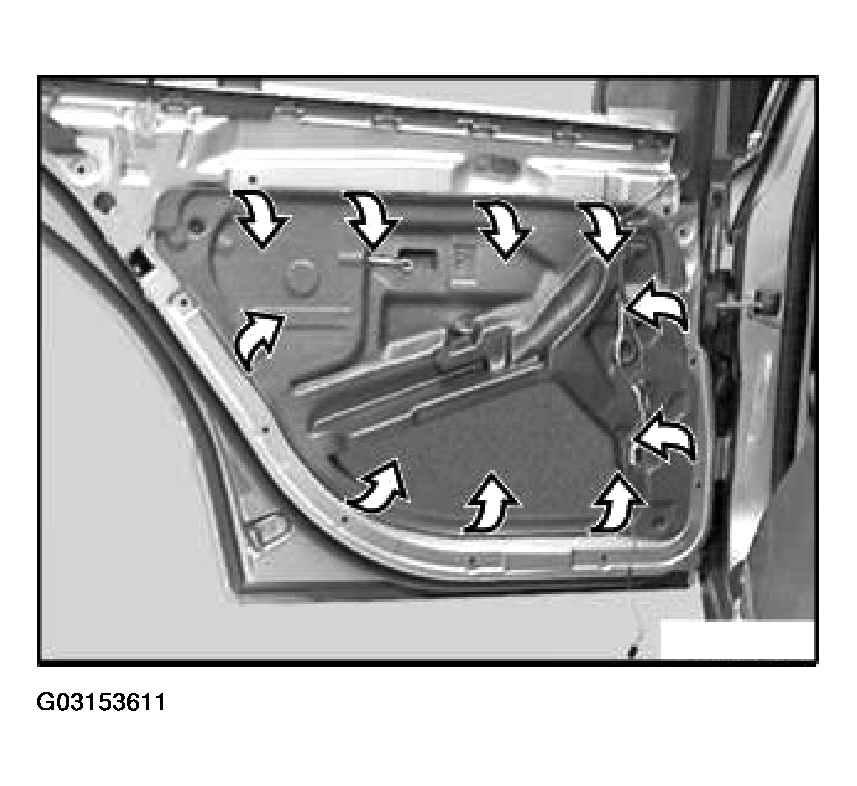

Partially pull off rear acoustic insulation and secure with adhesive tape.

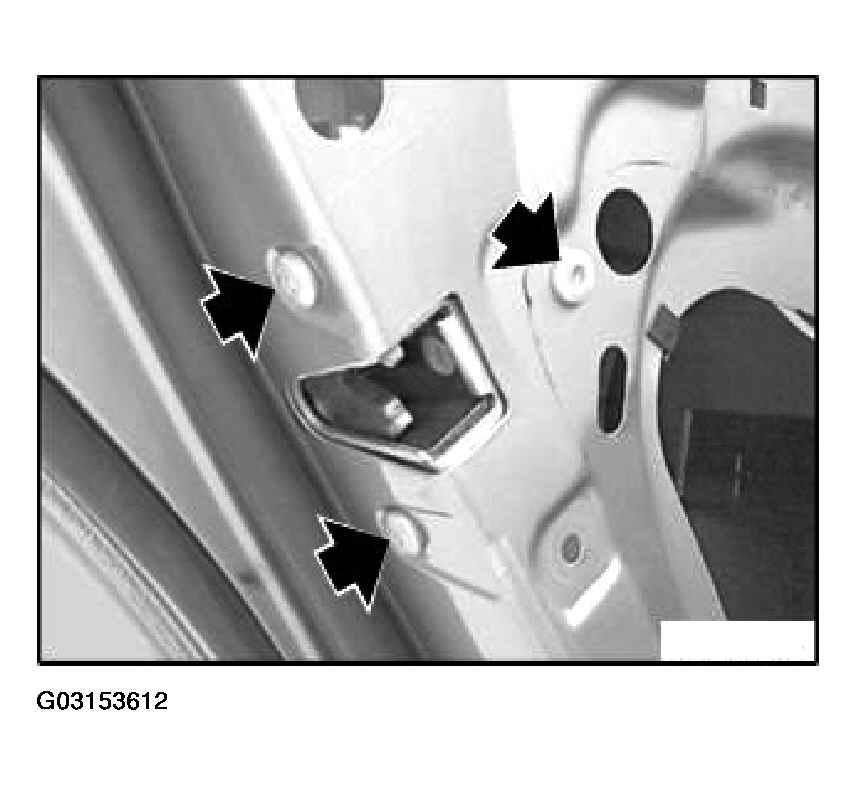

Unfasten screws.

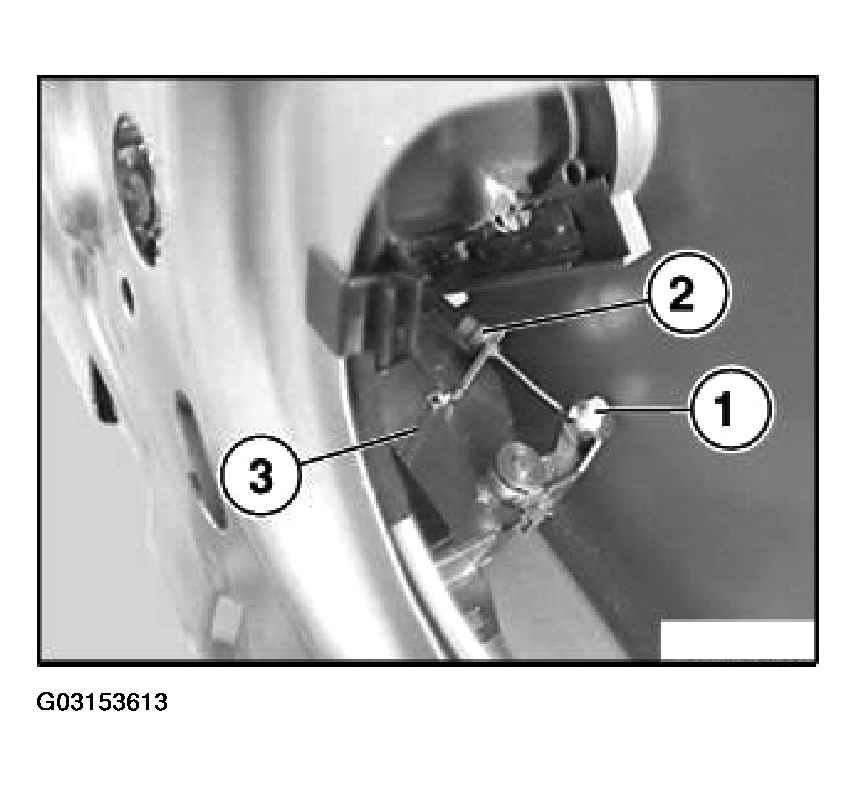

Disconnect Bowden cable nipple (1) and Bowden cable guide (2) from door lock (3).
Pull door lock slightly downwards.

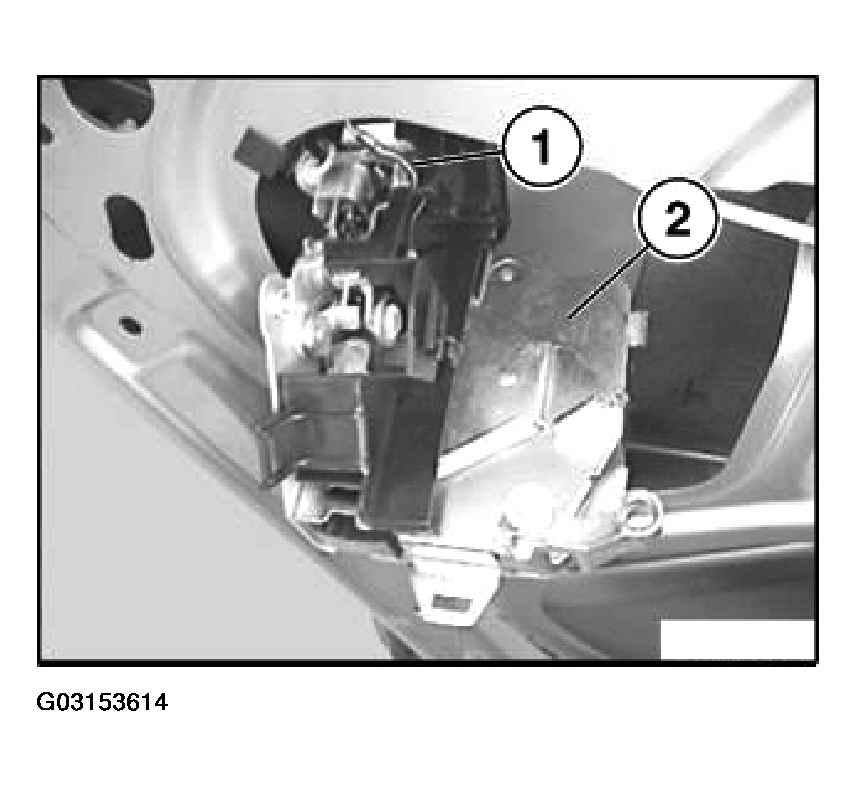

Unhook cable (1) from door lock (2) with plier tips.

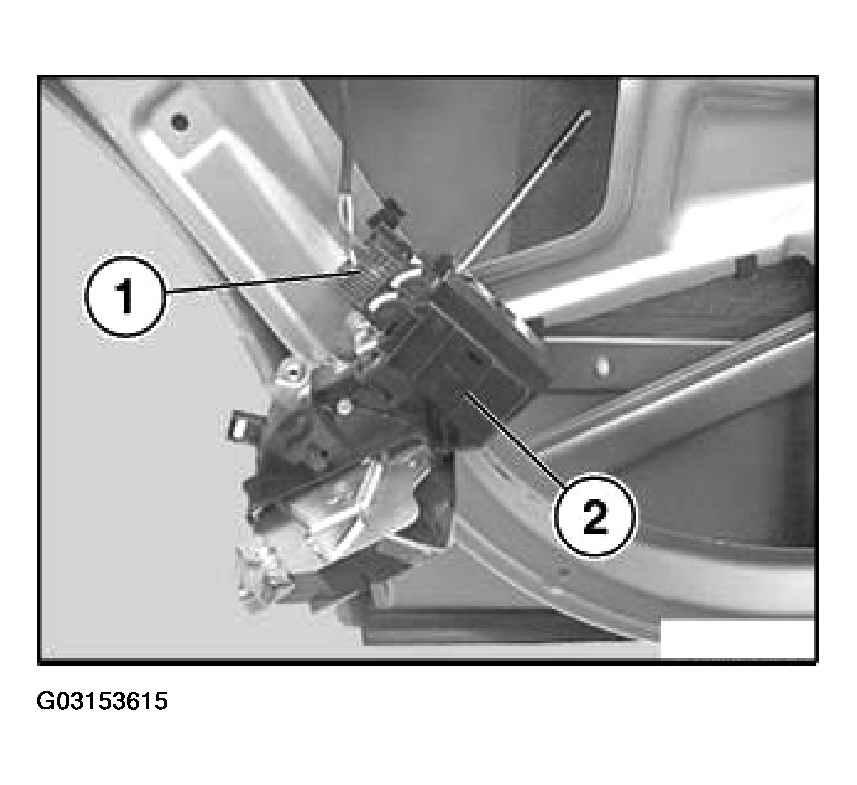

Unlock/remove connector (1) and remove door lock.
Only replace:

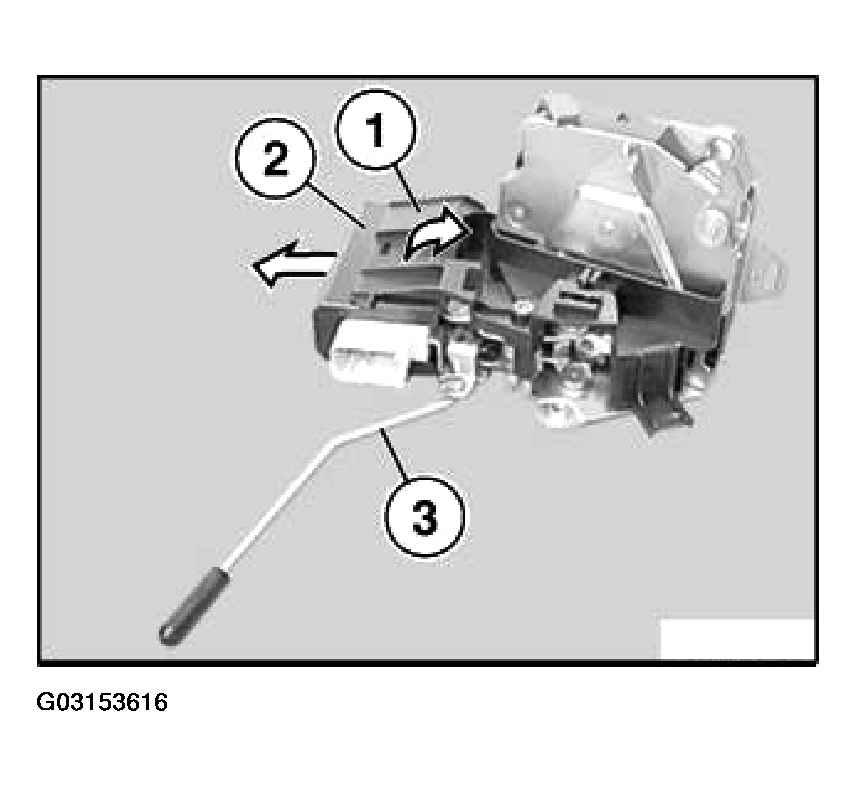

Lift out lock (1) and pull drive unit (2) (door lock mechanism) from door lock.
Disconnect actuating rod (3).
