51 46 050 Removing and installing/replacing finisher for top of rear apron

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid and left/right flaps.

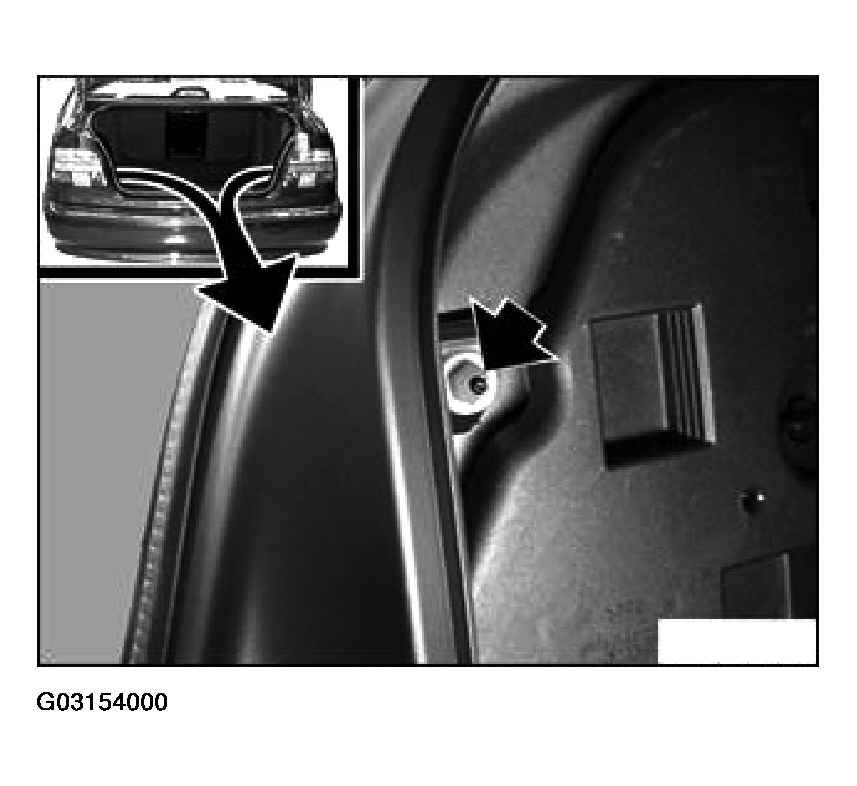

Unfasten left/right nuts.

Fig 1: Unfastening Left/Right Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten expanding rivets and remove finisher strip.

Installation

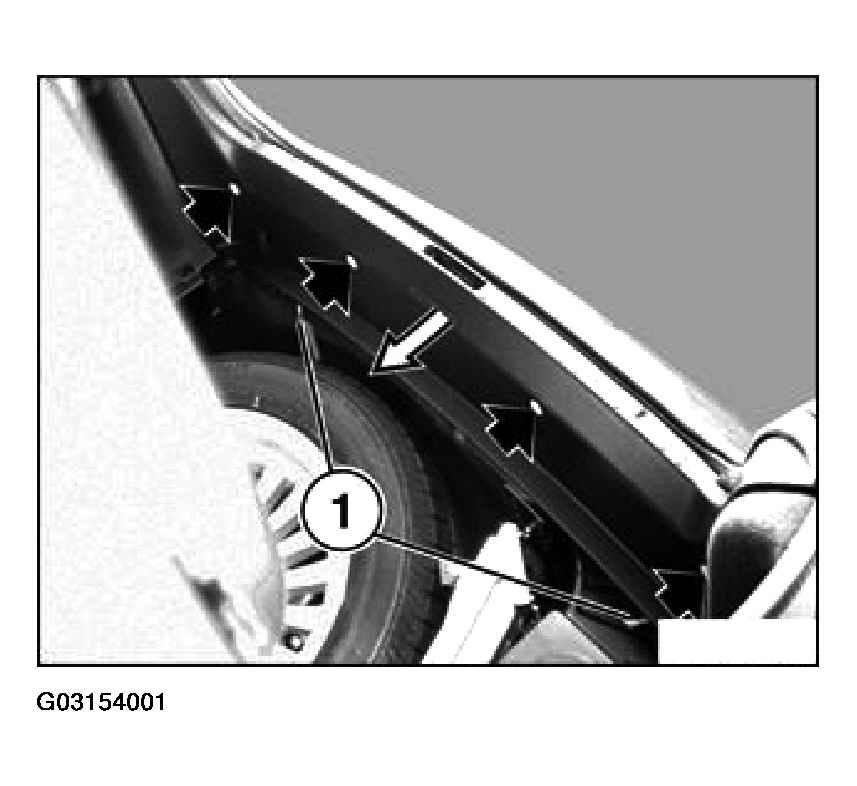

Insert guide spigot (1) on finisher into bottom of tail panel.

Fig 2: Inserting Guide Spigot On Finisher Into Bottom Of Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.
