51 16 340 Removing and installing/replacing glovebox lock

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Unfasten screws (1) and remove upper (2) and lower sections of lock.

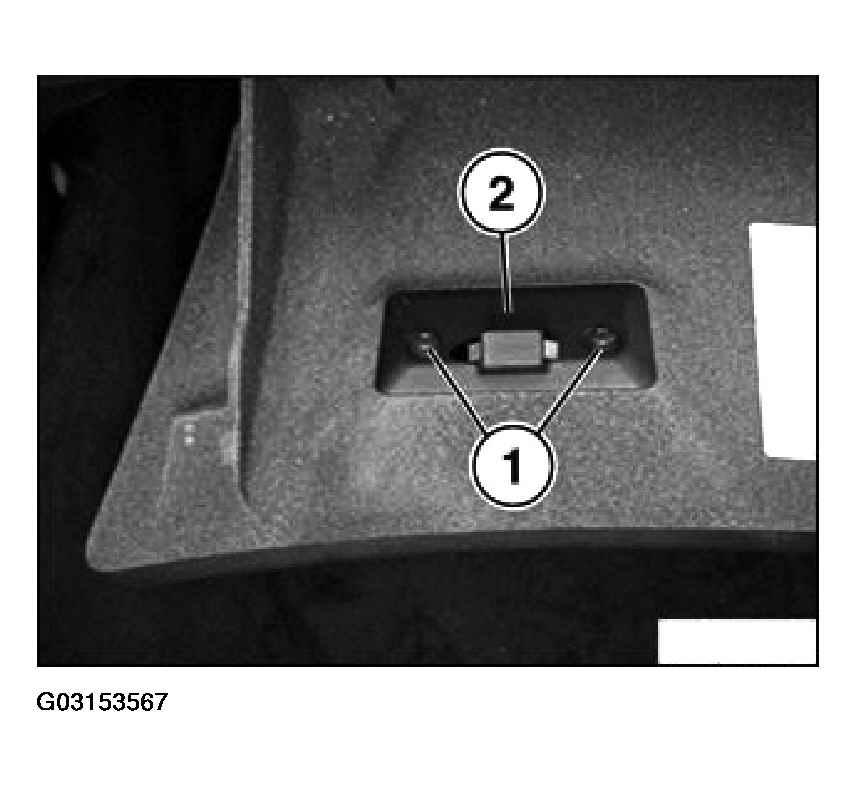

Fig 1: Unfastening Screws And Removing Upper And Lower Sections Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Insert vehicle key in lock cylinder (2).

Break open locks (1) if necessary and pull out lock cylinder (2) with vehicle key.

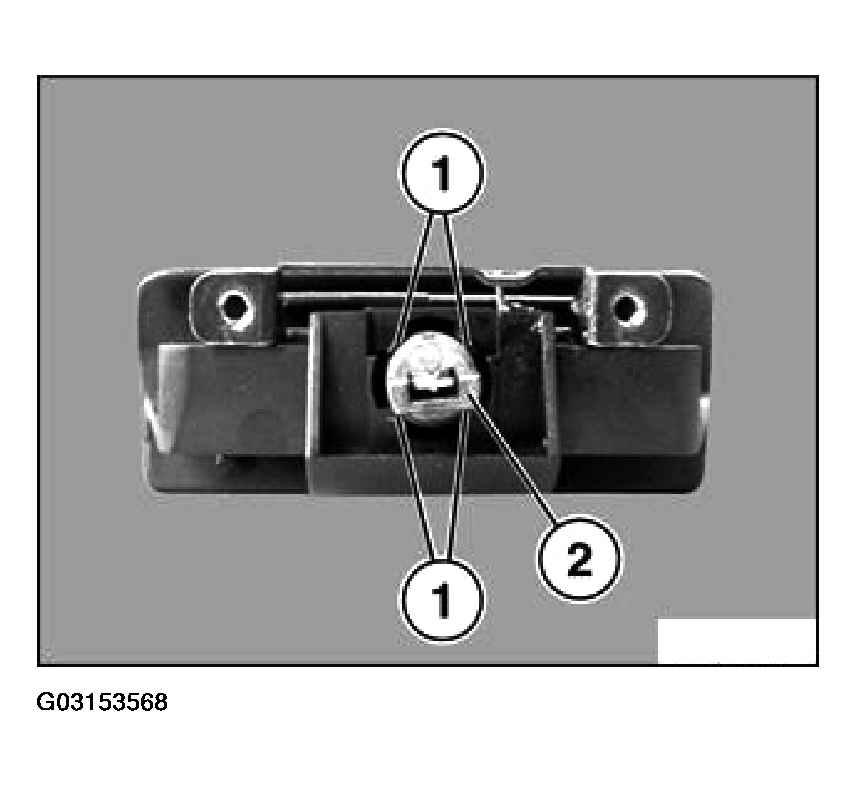

Fig 2: Inserting Vehicle Key In Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
