51 16 201 Replacing oddments tray

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console, refer to 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY .

Version with can holder:

If necessary open both can holders (1) slightly.

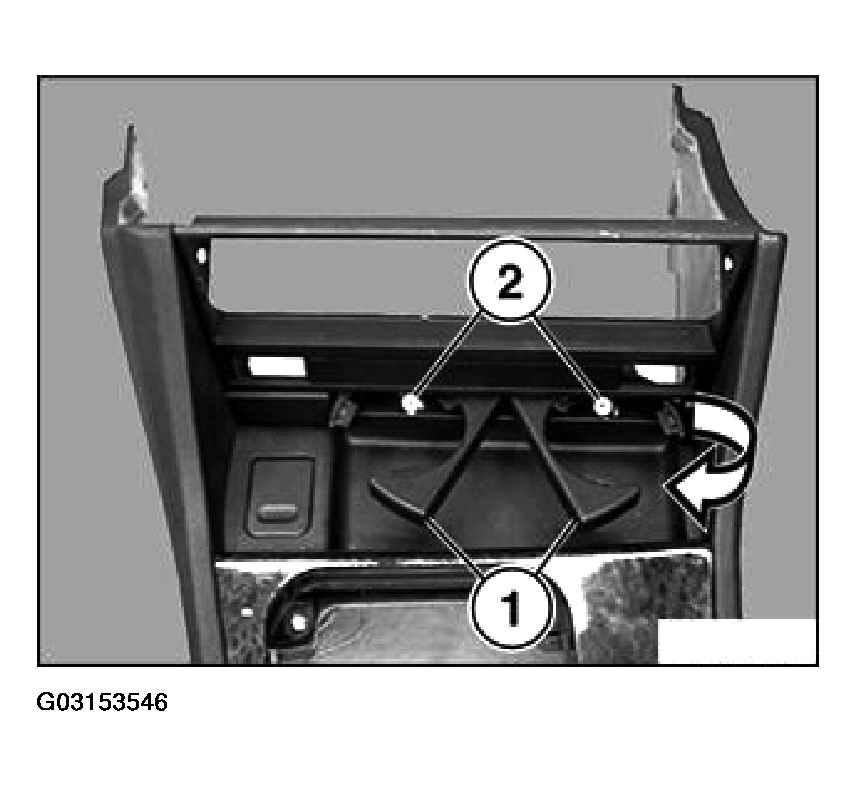

Unfasten screws (2), lift can holder to one side and remove.

Fig 1: Unfastening Screws, Lift Can Holder To One Side

G03153546

Courtesy of BMW OF NORTH AMERICA, INC.

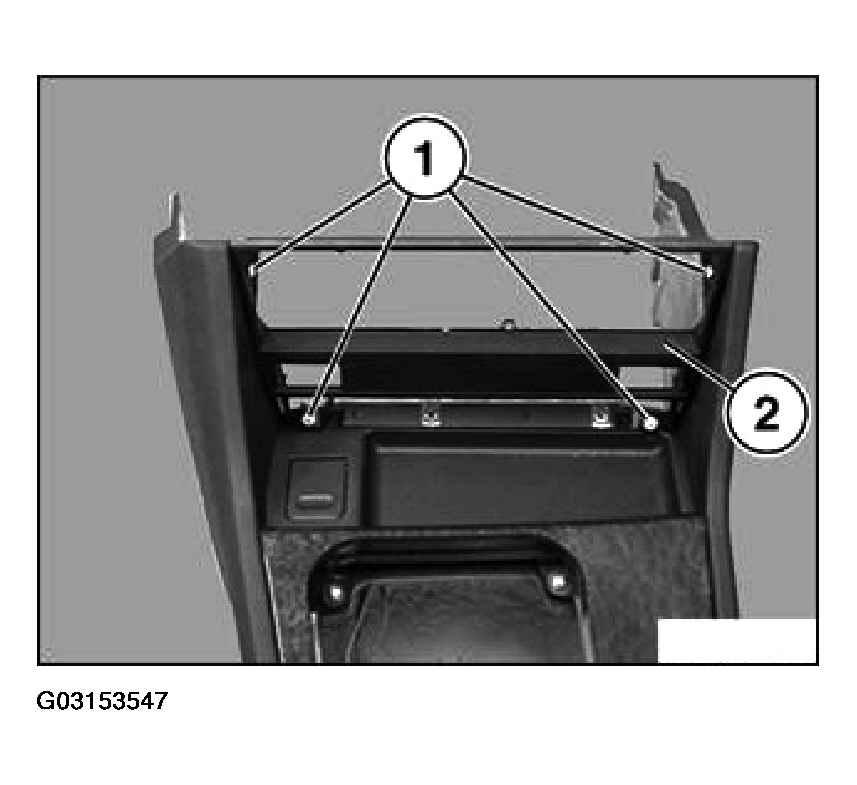

Unfasten screws (1) and remove frame (2) for heater controls.

Fig 2: Unfastening Screws And Remove Frame For Heater Controls

G03153547

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts (1).

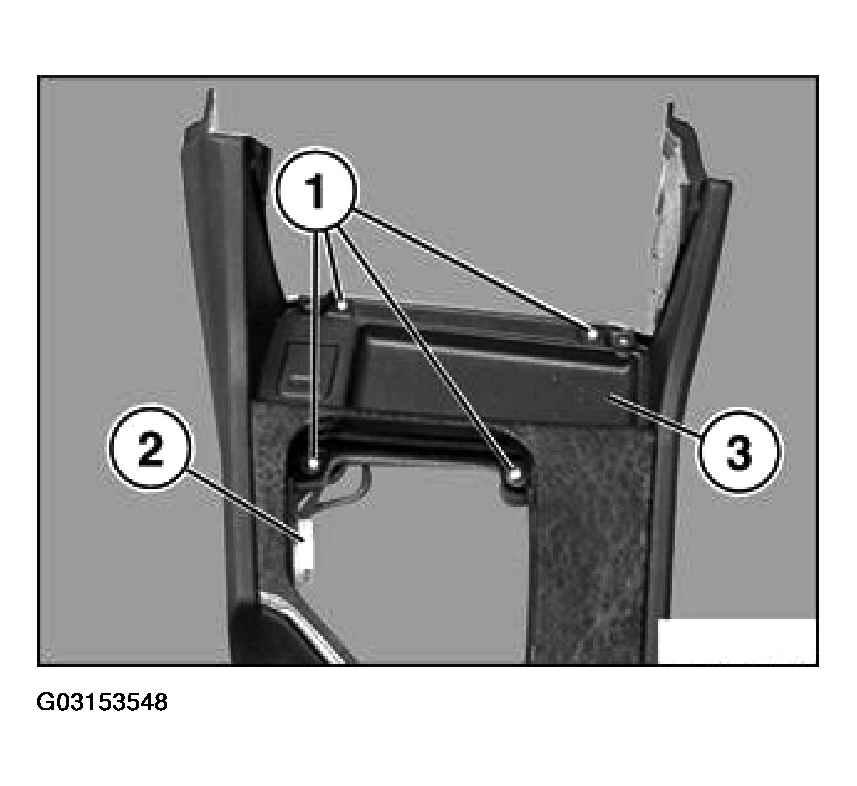

Unfasten connector (2), remove and lift off oddments tray (3) with cigar lighter.

Fig 3: Unfastening Connector, And Lifting Off Oddments Tray

G03153548

Courtesy of BMW OF NORTH AMERICA, INC.

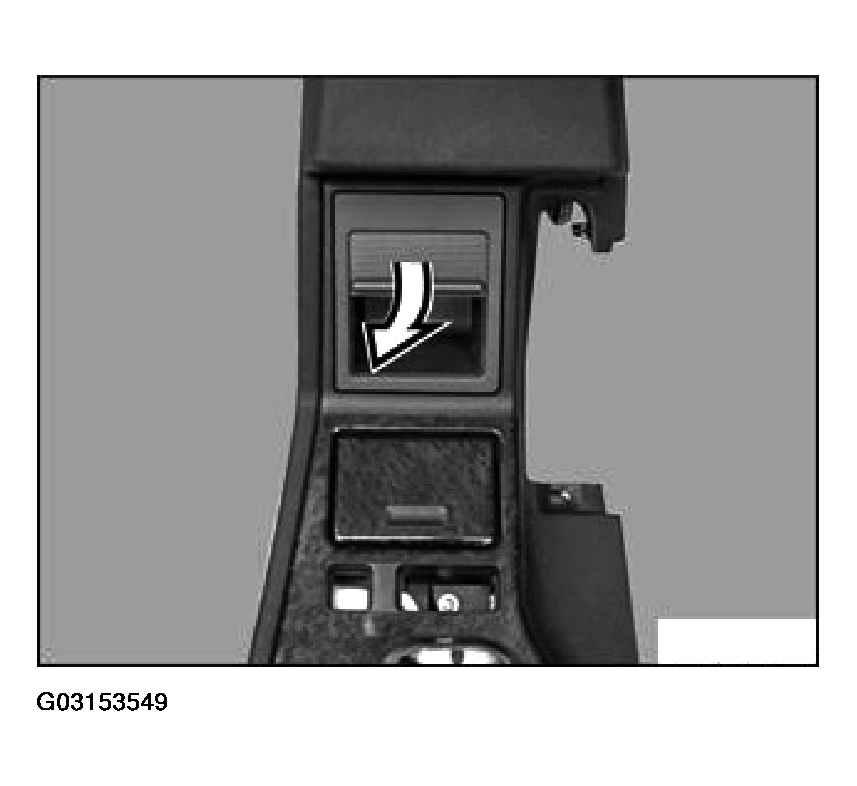

Unclip insert in oddments tray and remove.

Fig 4: Unclipping Insert In Oddments Tray

G03153549

Courtesy of BMW OF NORTH AMERICA, INC.

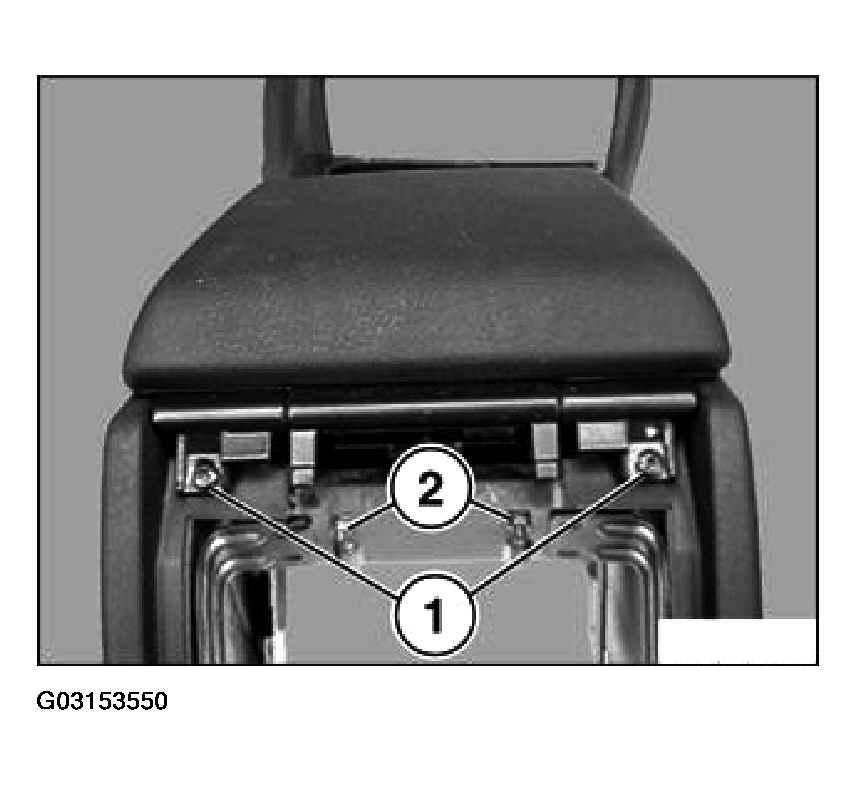

Unfasten screws (1) and nuts (2).

Fig 5: Unfastening Screws And Nuts

G03153550

Courtesy of BMW OF NORTH AMERICA, INC.

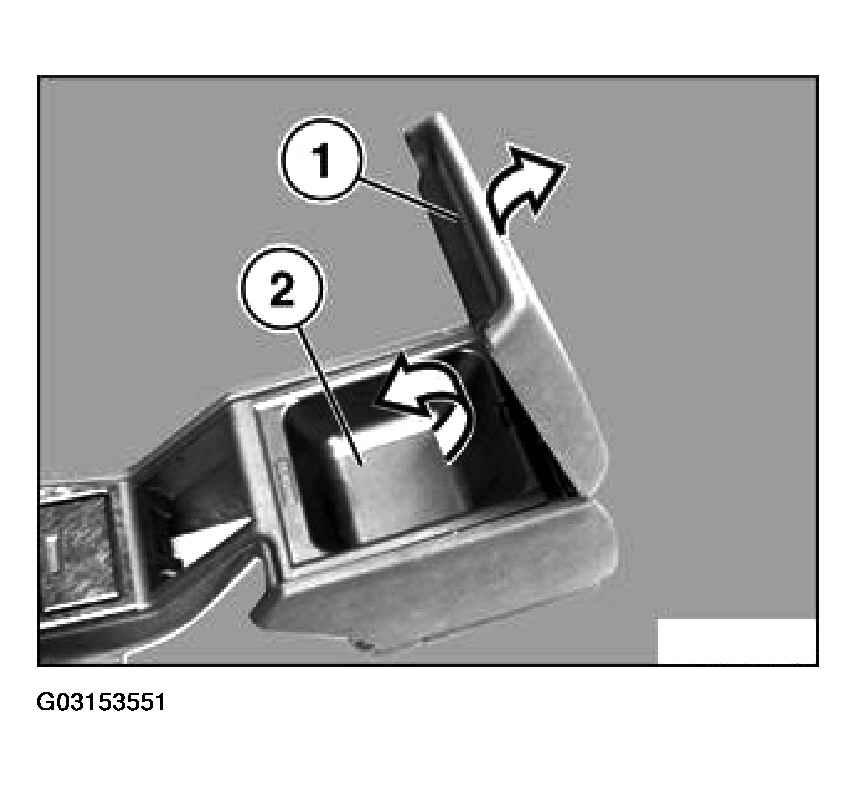

Open cover (1) and remove oddments tray (2) (rear).

Fig 6: Opening Cover And Removing Oddments Tray

G03153551

Courtesy of BMW OF NORTH AMERICA, INC.

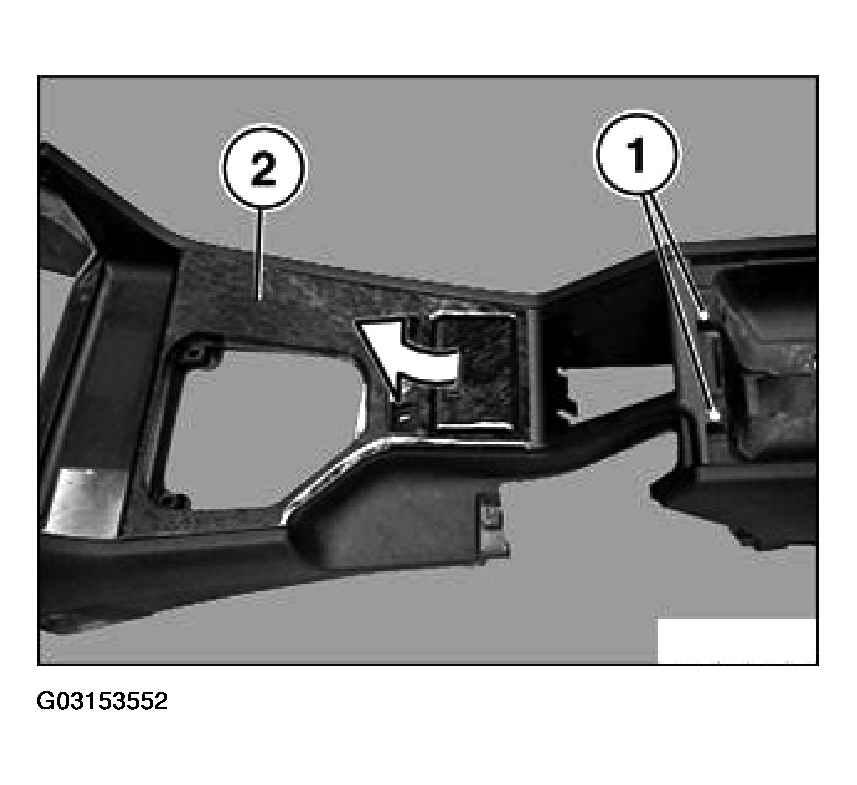

Unfasten screws (1) and remove insert (2) from center console.

Fig 7: Unfastening Screws And Removing Insert From Center Console

G03153552

Courtesy of BMW OF NORTH AMERICA, INC.

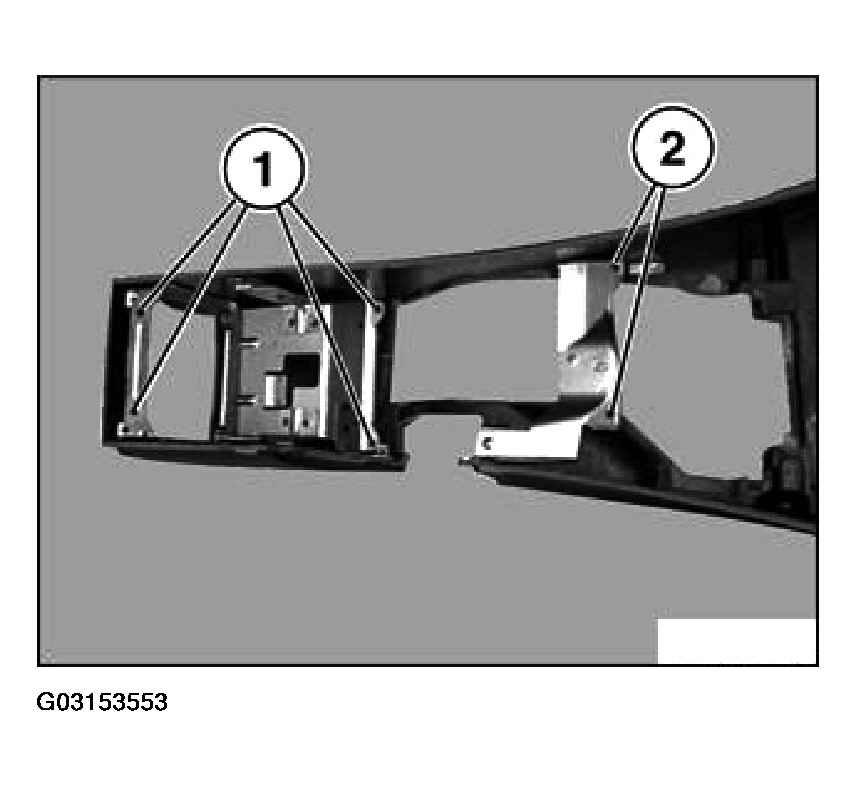

Unfasten screws (1) and remove rear bracket. Unfasten screws (2) and remove front bracket.

Fig 8: Unfastening Screws And Removing Rear Bracket

G03153553

Courtesy of BMW OF NORTH AMERICA, INC.
