51 16 080 Removing and installing or replacing sun visor and left or right counter support
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

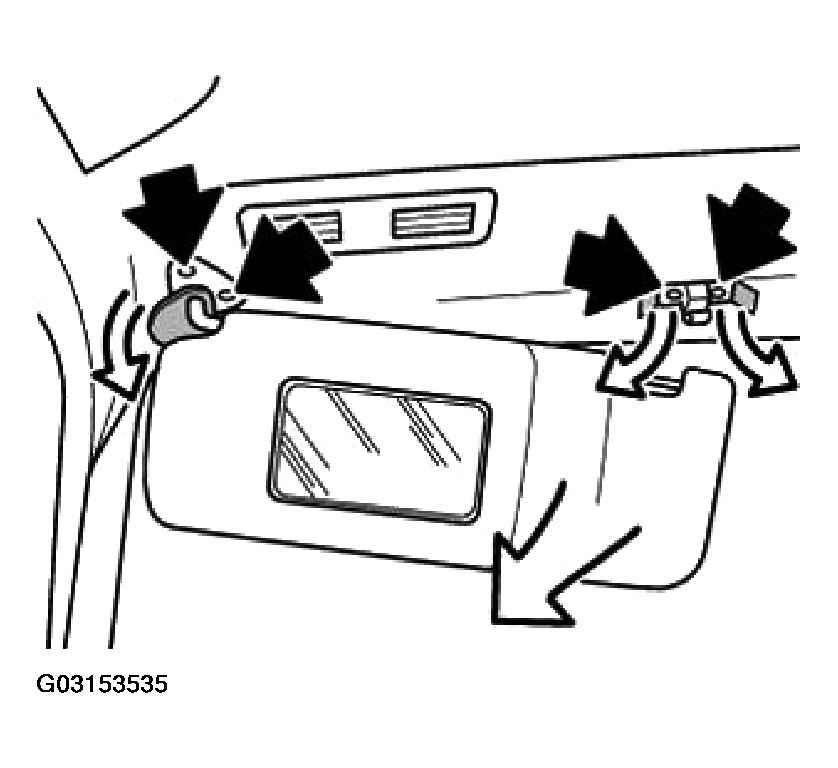

Lift out sun visor.
Lift out finishers on counter support and joint and unfasten screws.
Pull lighting wire out slightly and disconnect connector.
Installation:
- Perform function check on lighting.
