51 16 026 Replacing mirror glass

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 318

NOTE: For the E39, a choice is offered: normal mirror glass or mirror glass with automatic dip action (electro-chrome technology). The removal operation varies depending on version of mirror (risk of damage).

Rearview mirror without automatic anti-glare control:

The mirror glass does not have a plastic frame.

CAUTION: Bring car to room temperature so that clips do not break off.

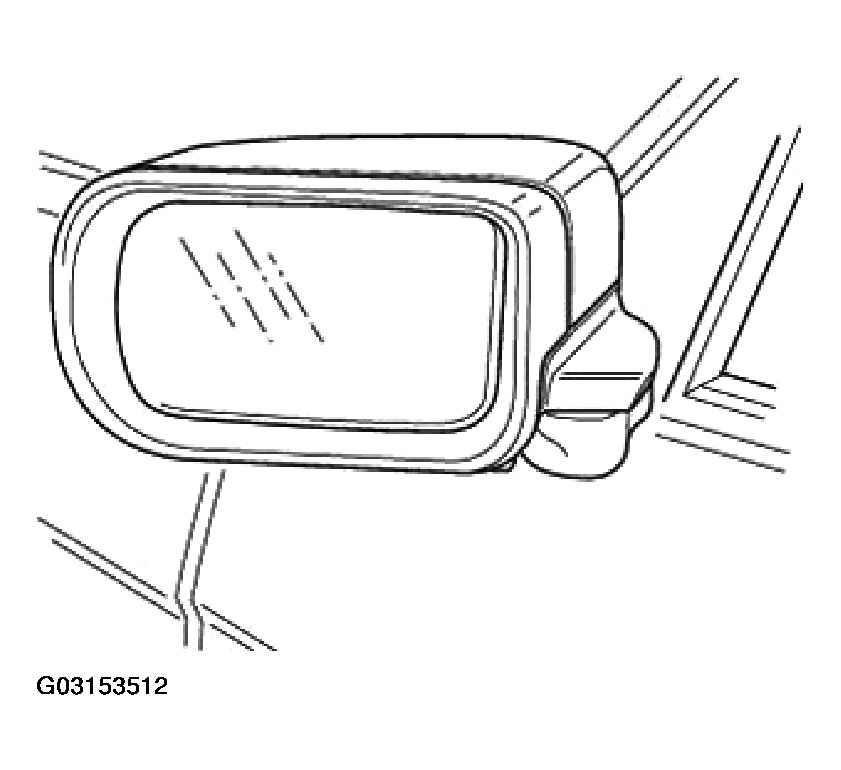

Fig 1: Identifying Mirror Glass

G03153512

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt mirror glass.

Tape off mirror glass and housing edge (risk of damage).

Unclip mirror glass with special tool 00 9 318 (universal wedge).

If necessary, disconnect plug connection for mirror heating and remove mirror glass.

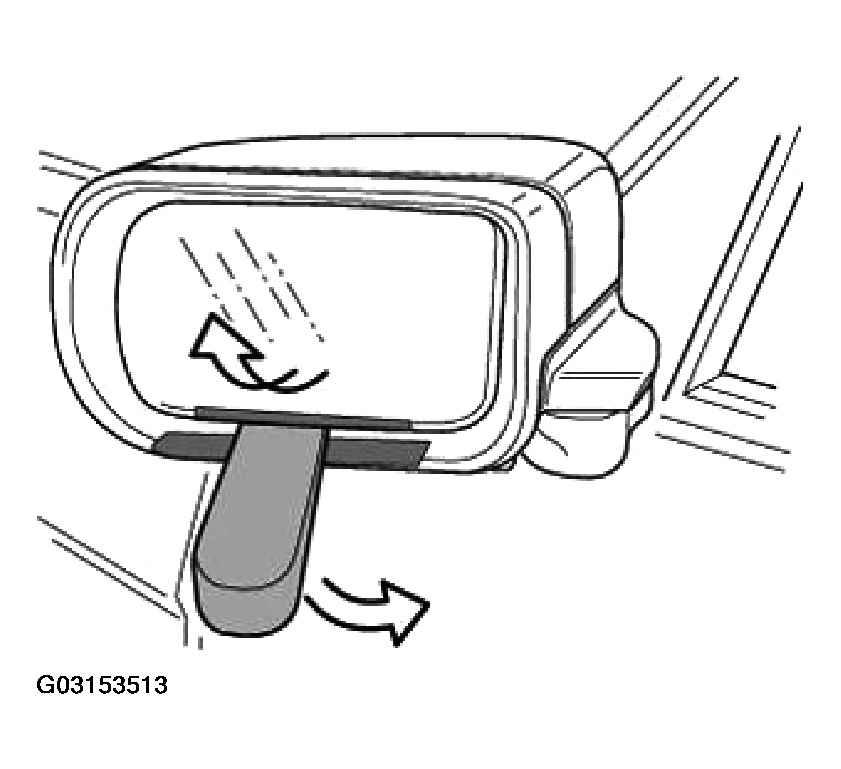

Fig 2: Unclipping Mirror Glass With Special Tool

G03153513

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place mirror glass with retainers onto lugs and clip mirror glass into place. Ensure correct engagement.

Check function.

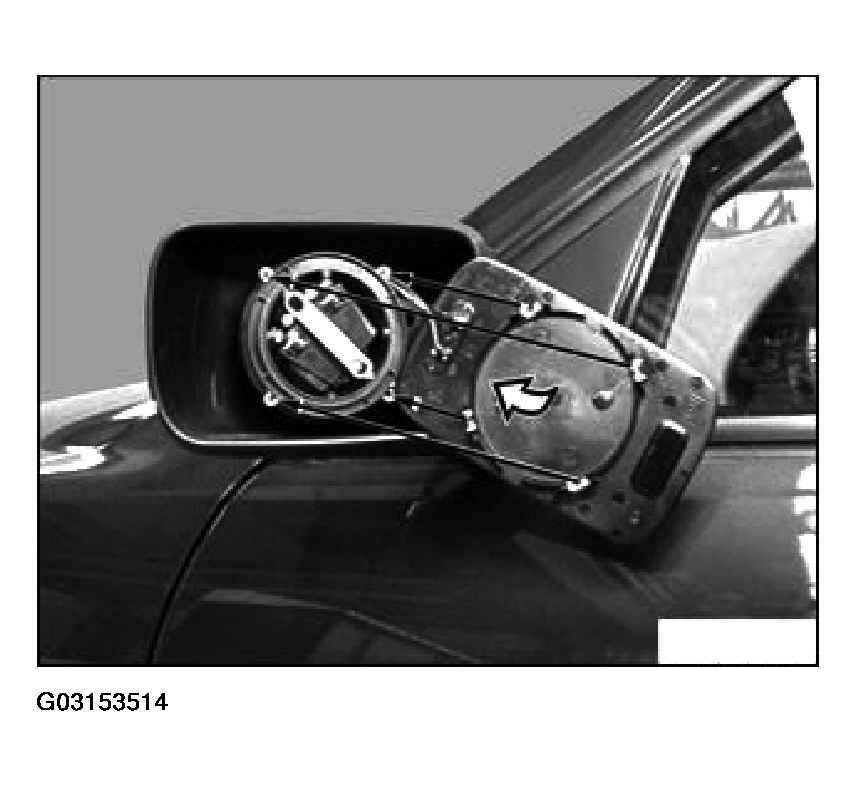

Fig 3: Placing Mirror Glass With Retainers Onto Lugs And Clip Mirror Glass

G03153514

Courtesy of BMW OF NORTH AMERICA, INC.

Rearview mirror with automatic anti-glare control:

CAUTION: Risk of caustisization in event of broken mirror glass.
Therefore wear protective gloves and clean all parts with water.

Slide gudgeon to right (bayonet lock) and carefully lift off mirror glass.

Fig 4: Lifting Off Mirror Glass

G03153515

Courtesy of BMW OF NORTH AMERICA, INC.

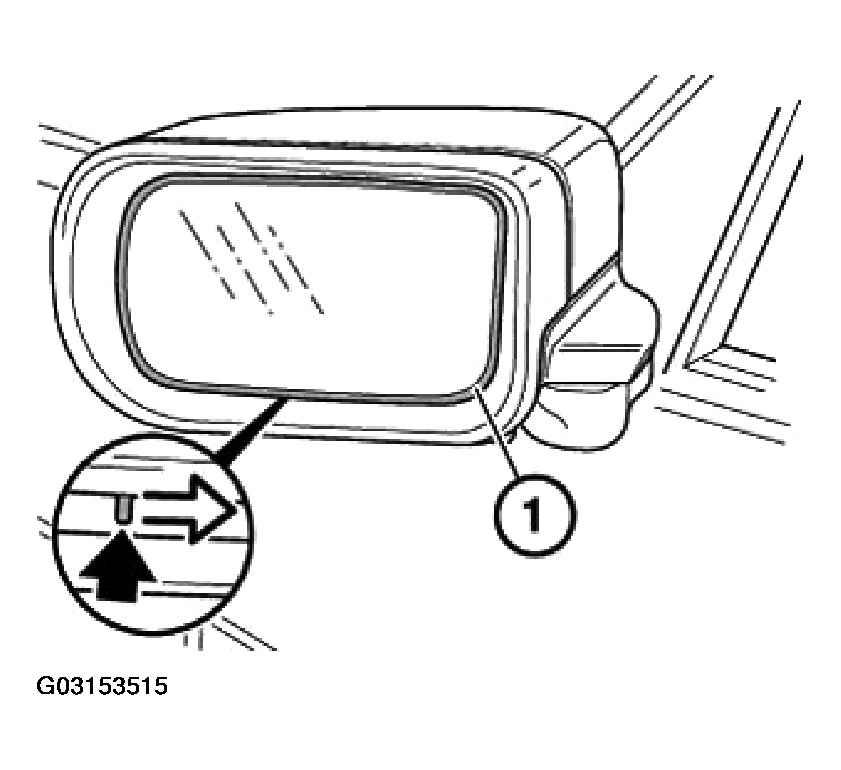

If necessary, disconnect plug connection (1) for mirror heating. Unlock plug (2) and detach.

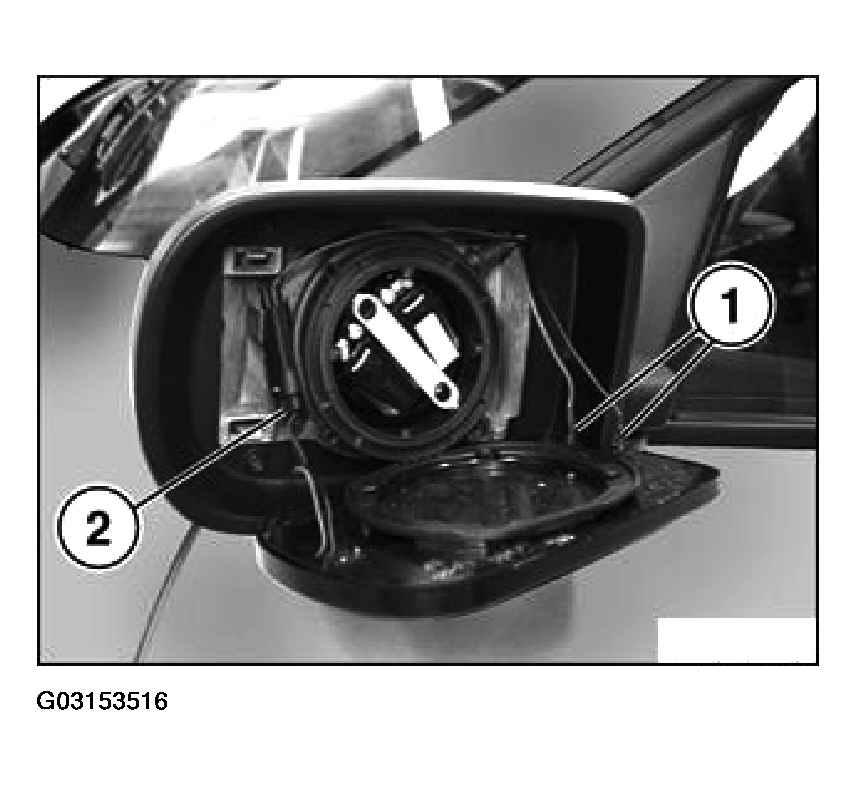

Fig 5: Disconnecting Plug Connection For Mirror Heating

G03153516

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Place mirror glass with openings onto lugs.

Slide gudgeon to left until it is vertical.

Check function.

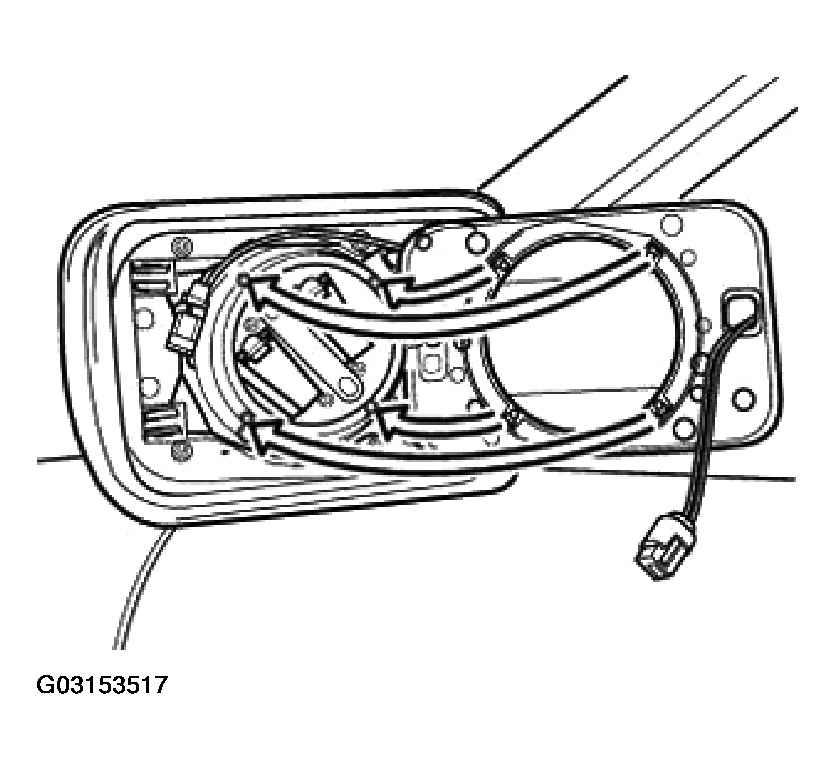

Fig 6: Placing Mirror Glass With Openings Onto Lugs

G03153517

Courtesy of BMW OF NORTH AMERICA, INC.
