51 16 000 Removing and installing mirror on left or right front door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove door trim panel, refer to 51 41 000 REMOVING AND INSTALLING DOOR TRIM PANEL, FRONT LEFT OR RIGHT (PROTECTION) .

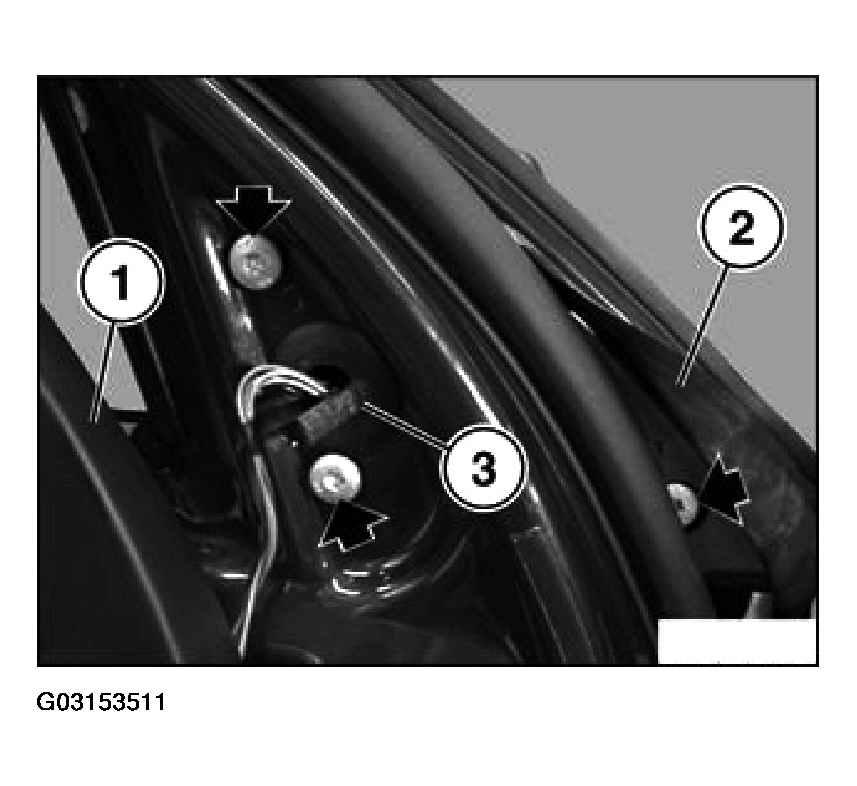

Lift finisher (1) (finger-jam protection) slightly, press gasket (2) out to one side and unfasten screws. Pull through cable for rear-view mirror with grommet (3) and remove rear-view mirror.
Tightening torque, refer to BODY EQUIPMENT - TIGHTENING TORQUES - 540i .
Check function.
