51 45 051 Replace trim for upper section of instrument panel

Remove trim for upper section of instrument panel,

refer to 51 45 050 REMOVING AND INSTALLING TRIM FOR UPPER SECTION OF INSTRUMENT PANEL

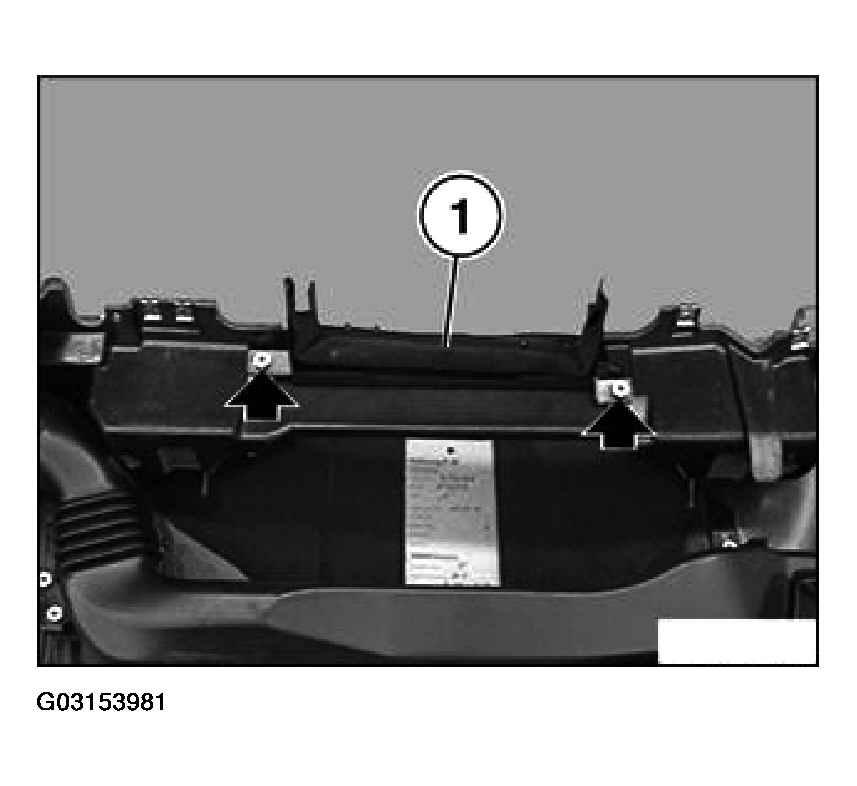

Unfasten screws and remove cover (1) for passenger airbag.

Fig 1: Unfastening Screws And Remove Cover For Passenger Airbag

Courtesy of BMW OF NORTH AMERICA, INC.

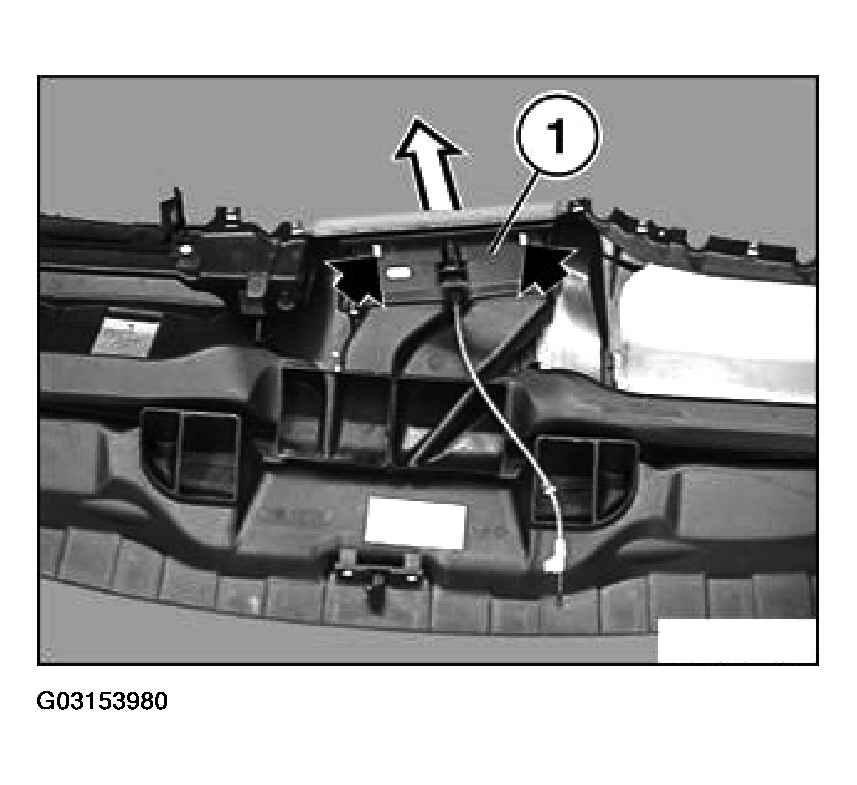

Depress interlock and remove fresh air grille (1) (center).

Fig 2: Depressing Interlock And Remove Fresh Air Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and remove rubber gaiter for steering column from instrument panel (1).

Fig 3: Unfastening Screws And Remove Rubber Gaiter For Steering Column From Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

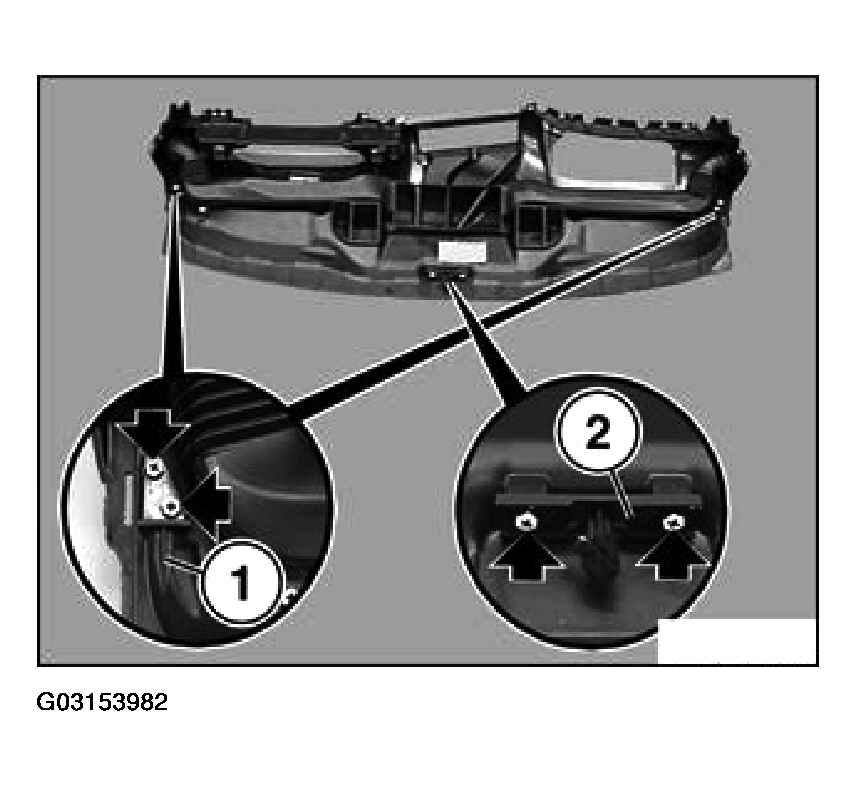

Unfasten screws and remove outer (1) and center (2) brackets.

Fig 4: Unfastening Screws And Remove Outer And Center Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

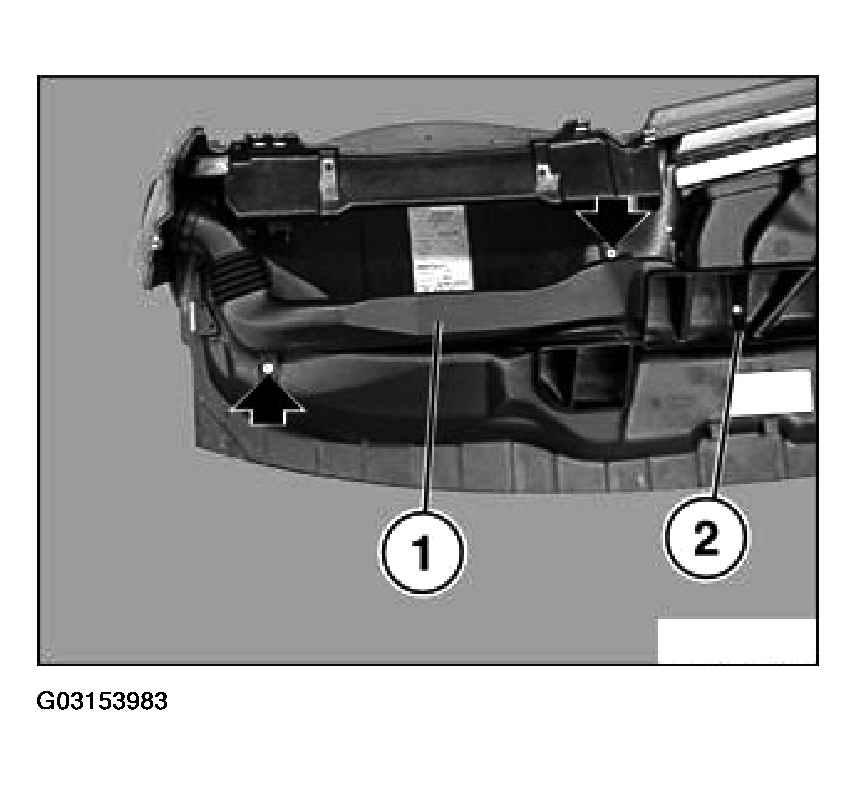

Unscrew bolts.

Detach and remove left air duct (1) in center (2).

Fig 5: Removing Left Air Duct In Center

Courtesy of BMW OF NORTH AMERICA, INC.

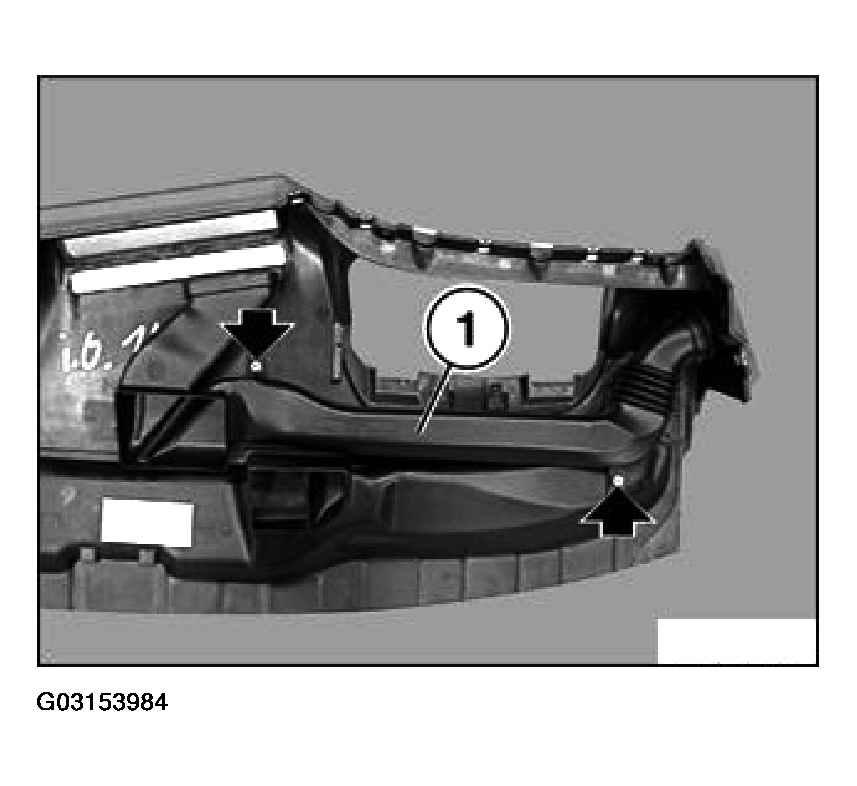

Unfasten screws and remove right air duct (1).

Fig 6: Unfastening Screws And Remove Right Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

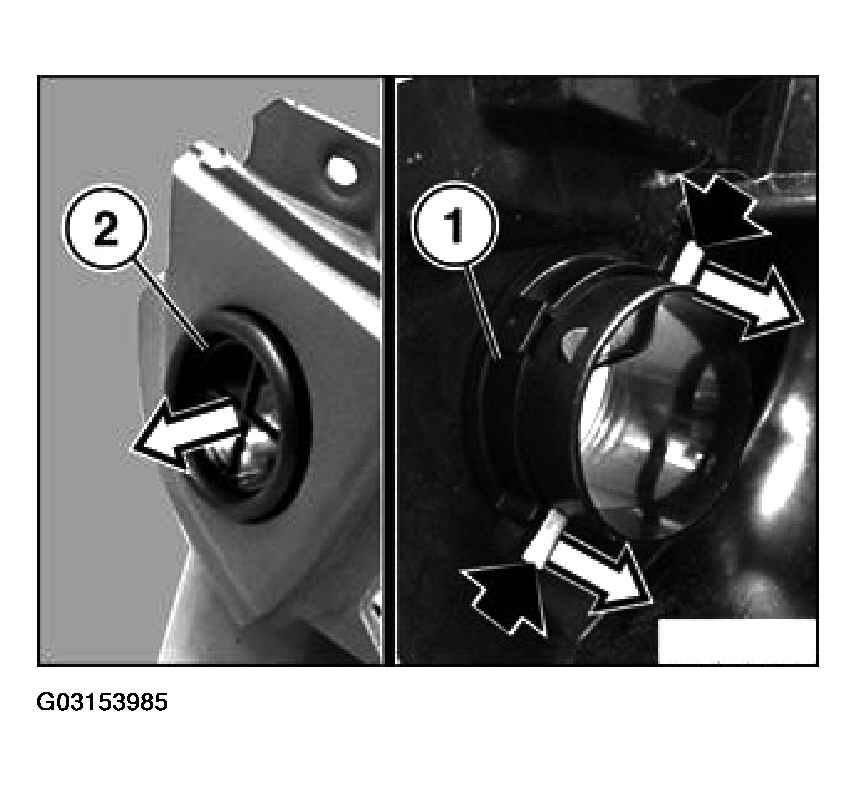

Press down detent and remove bracket (1).

Pull grille for left/right air duct (2) outwards to remove.

Fig 7: Pulling Grille For Left/Right Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

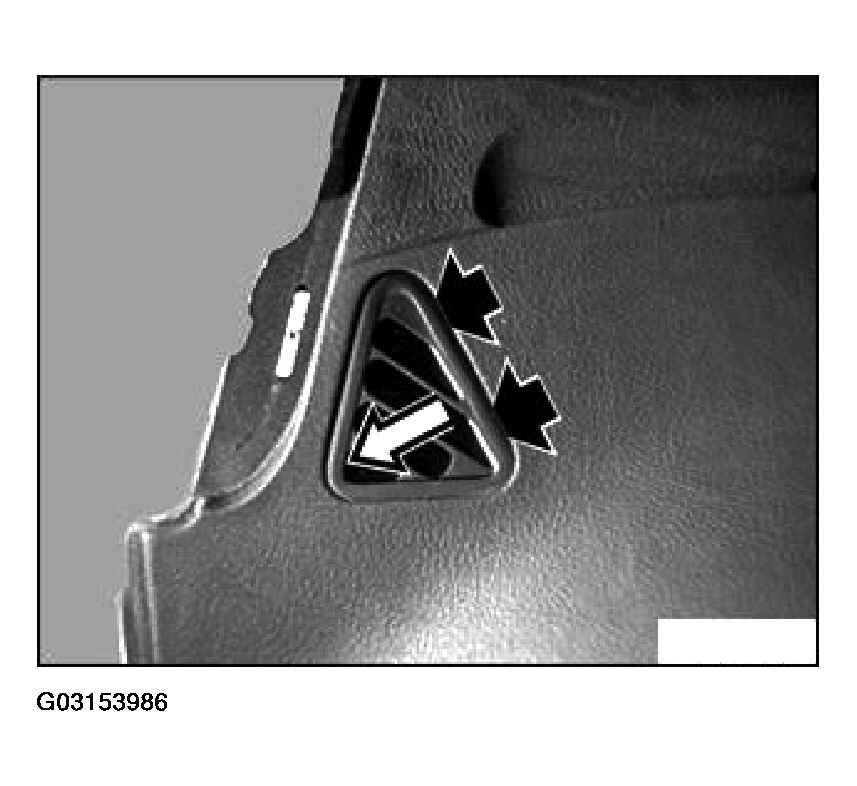

Lift out grille for top left/ right air duct.

Fig 8: Lifting Out Grille For Top Left/ Right Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

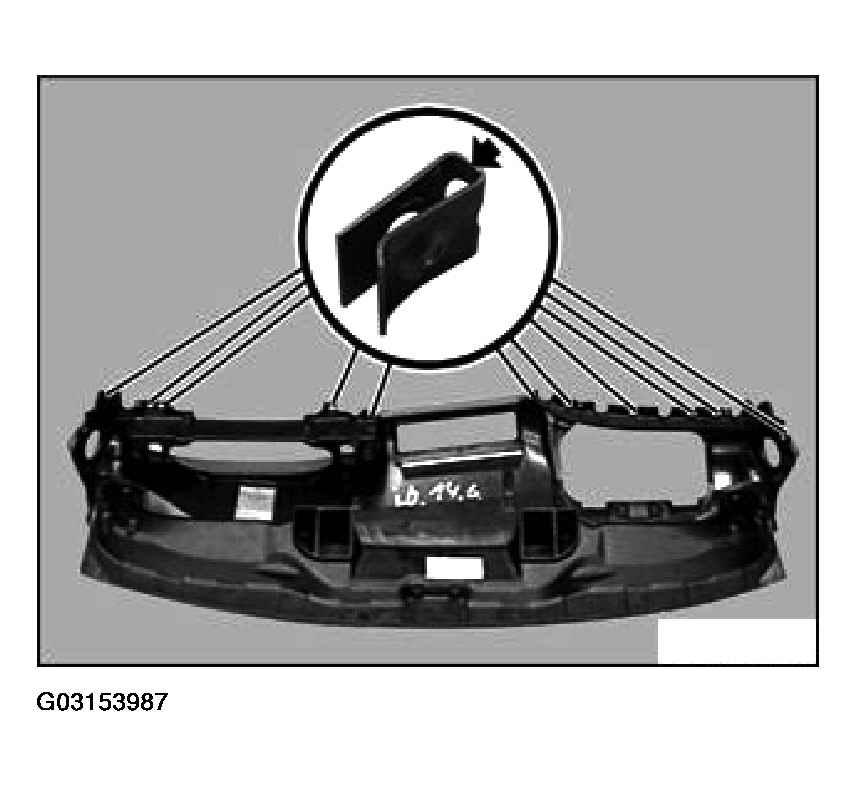

1. Remove all clips and slide onto new trim for upper section of instrument panel.

Fig 9: Removing All Clips And Slide Onto New Trim For Upper Section Of Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.
