51 21 300 Removing and installing or replacing window recess cover strip on outside of left or right front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

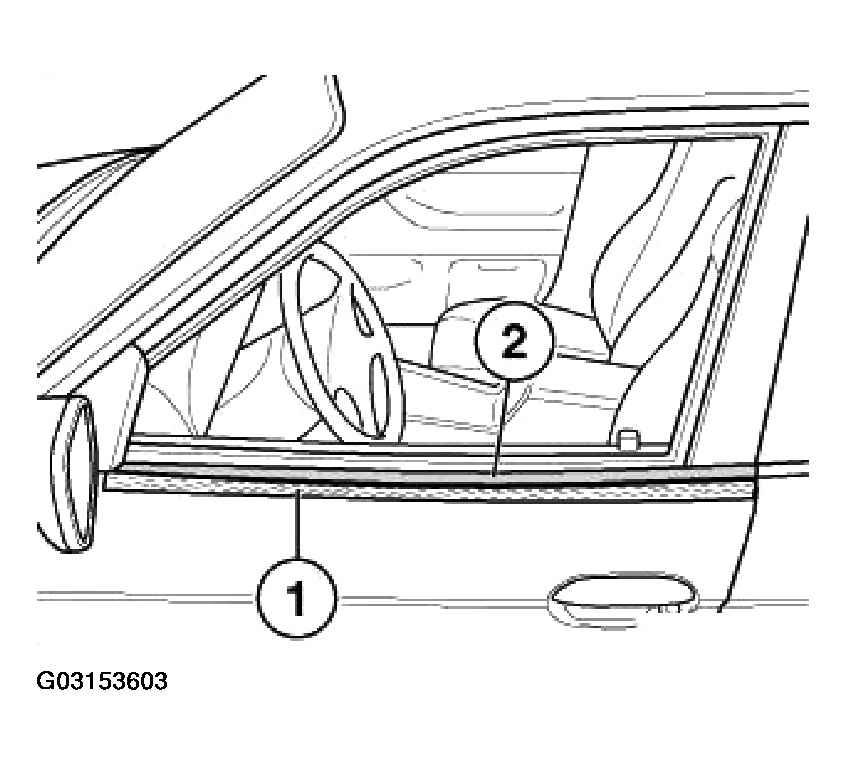

Attach adhesive tape (1) below window cavity cover strip (2) (risk of damage).

Fig 1: Attaching Adhesive Tape Below Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

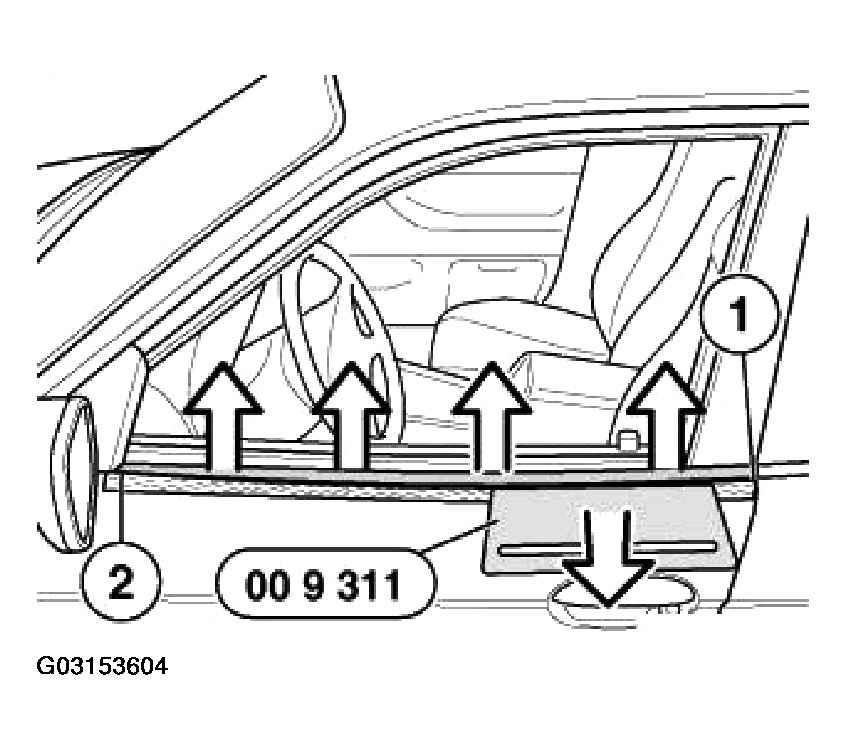

Using special tool 00 9 311, starting at back, (1) and moving to front (2), lift out window cavity cover strip.

Installation:

Coat cover strip with anti-friction agent.
Cover strip must form flush seal with rear edge of door.

Fig 2: Coating Cover Strip With Anti-Friction Agent

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

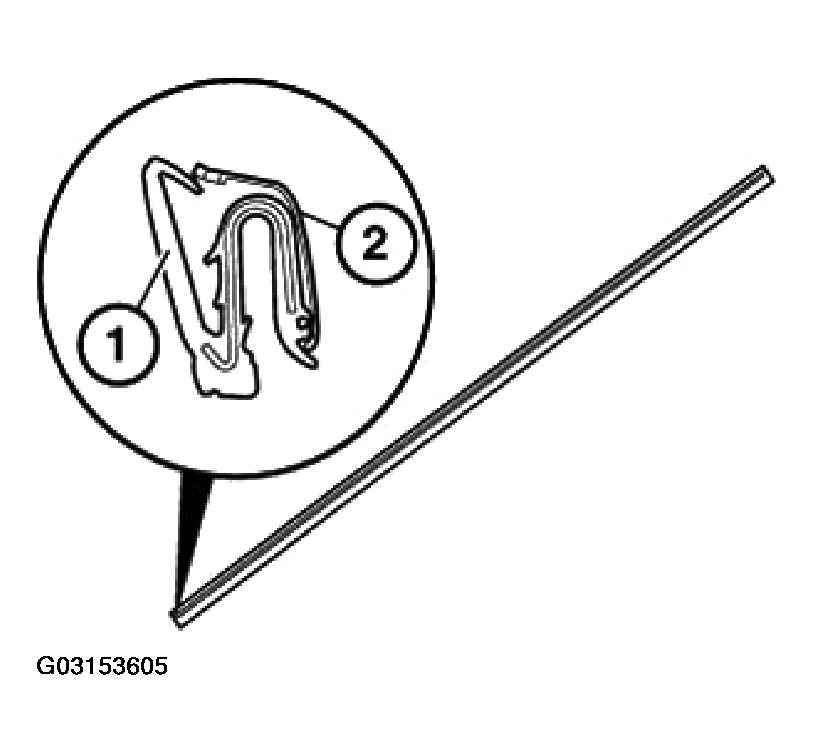

Remove gasket (1) from chrome strip (2).

Fig 3: Removing Gasket From Chrome Strip

Courtesy of BMW OF NORTH AMERICA, INC.
