51 21 225 Removing and installing/replacing inside door handle in left or right front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove FRONT DOOR TRIM PANEL .

Version up to 03/01 (Bowden cable with hook):

Pull Bowden cable (1) towards rear and unhook from door opener.

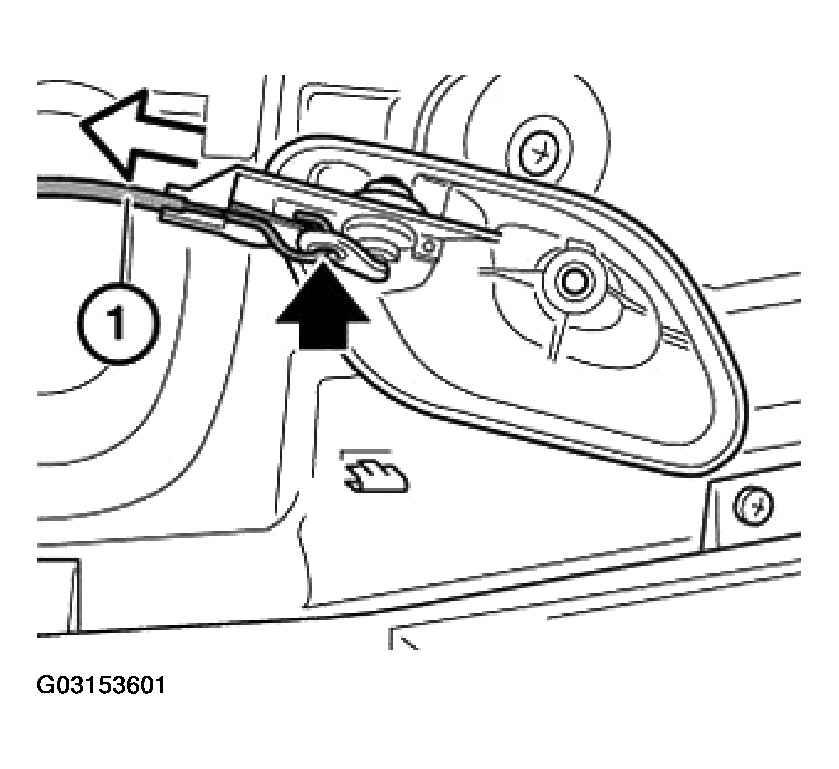

Fig 1: Pulling Bowden Cable Towards Rear And Unhook From Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 03/01 (Bowden cable with clip):

Unlock Bowden cable and unhook:

Tighten unlocking lever (1)
Lever out lock (2)
Detach Bowden cable (3) towards rear/top
Adhesive tape (4) is only required for series production assembly

Fig 2: Identifying Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

For installation, press unlocking lever (1) completely onto door opener (5).
