51 33 000 Removing and installing electric window regulator in left or right front door

Disconnect negative battery lead.

Version with side airbag:

Removing and installing airbag in left or right front door,

refer to AIR BAG RESTRAINT SYSTEMS .

Remove window in front door,

refer to 51 32 170 REMOVING AND INSTALLING / REPLACING FRONT LEFT OR RIGHT DOOR WINDOW

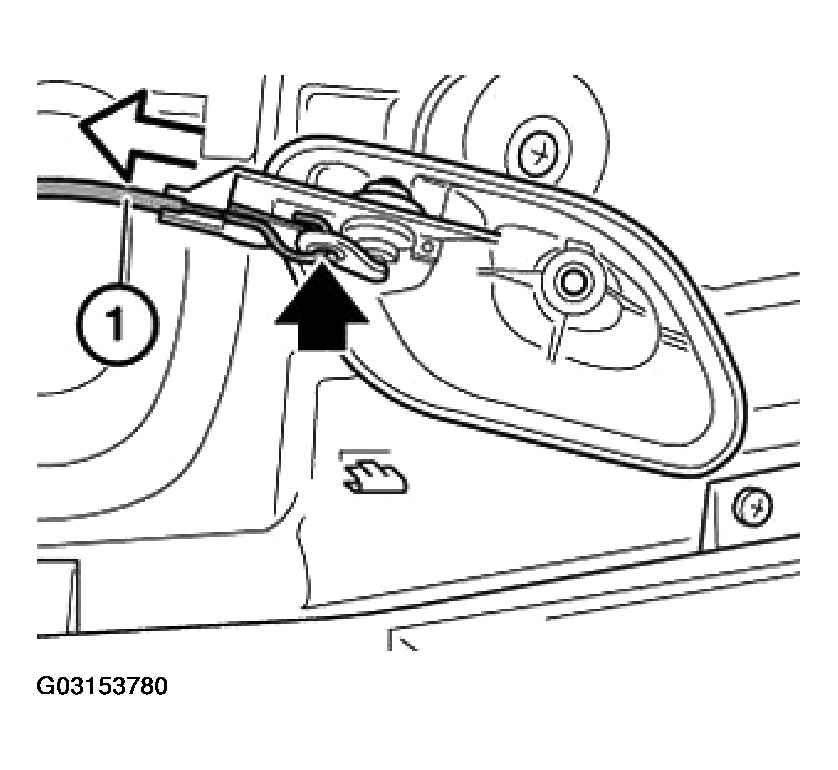

Pull Bowden cable (1) backwards, detach from door handle and remove.

Fig 1: Pulling Bowden Cable Backwards, Detach From Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

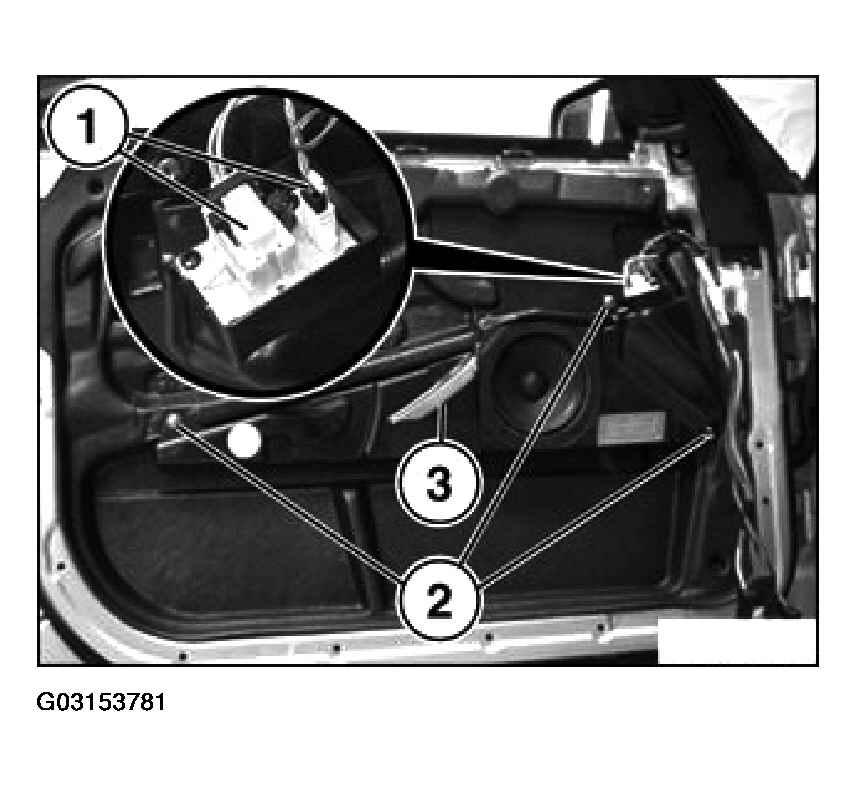

Remove connector (1).

Unfasten screws (2) and remove loudspeaker box (3).

Fig 2: Unfastening Screws And Remove Loudspeaker Box

Courtesy of BMW OF NORTH AMERICA, INC.

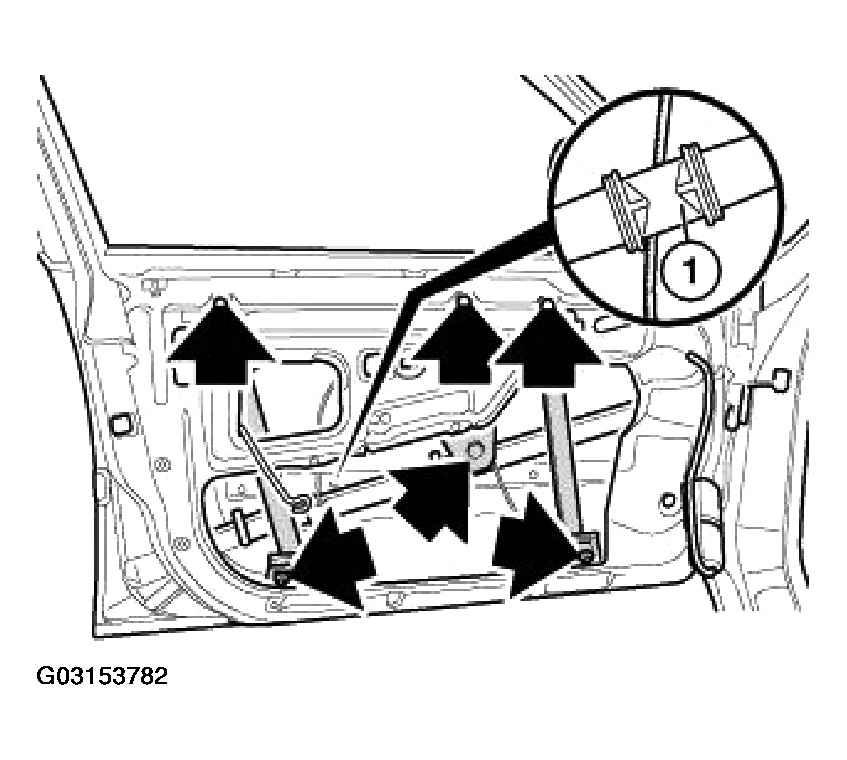

Remove connector from window regulator drive unit.

Pull off guide (1).

Unfasten screws (only loosen lower 3 screws) and remove complete cable on window regulator.

Fig 3: Pulling Off Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

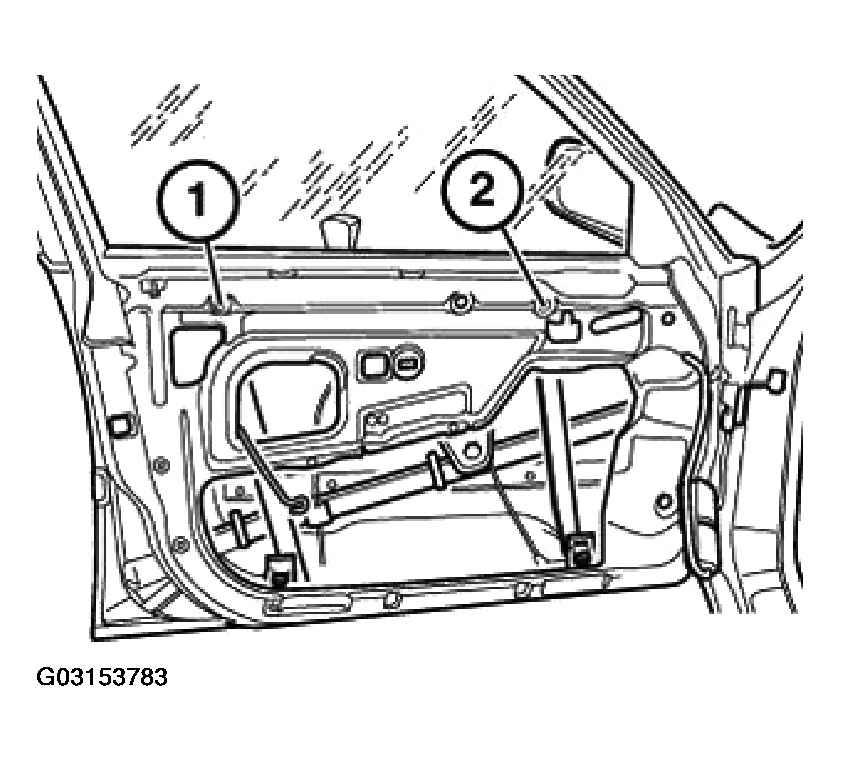

1. Install window regulator in locating bracket and install all screws loose.
2. Tighten down screws (1) and (2).

Tightening torque, see 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 540i .

Fig 4: Tightening Down Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

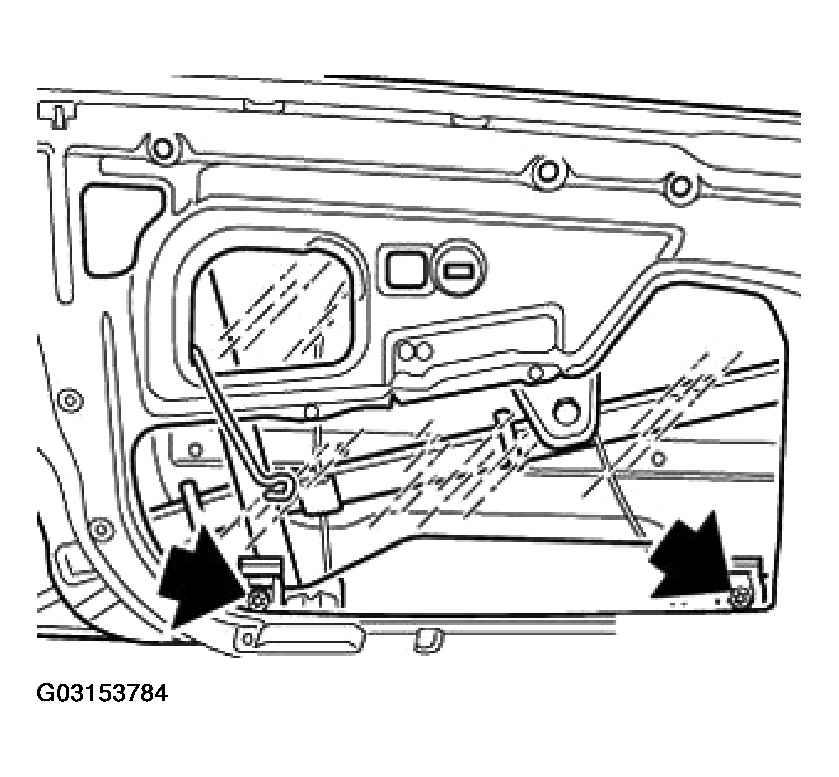

1. Installing door window in clamps of window regulator and adjusting door window,
2. refer to 51 32 154 ADJUSTING DOOR WINDOW GLASS, FRONT LEFT OR RIGHT (PROTECTION)

Fig 5: Installing Door Window In Clamps Of Window Regulator And Adjusting Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

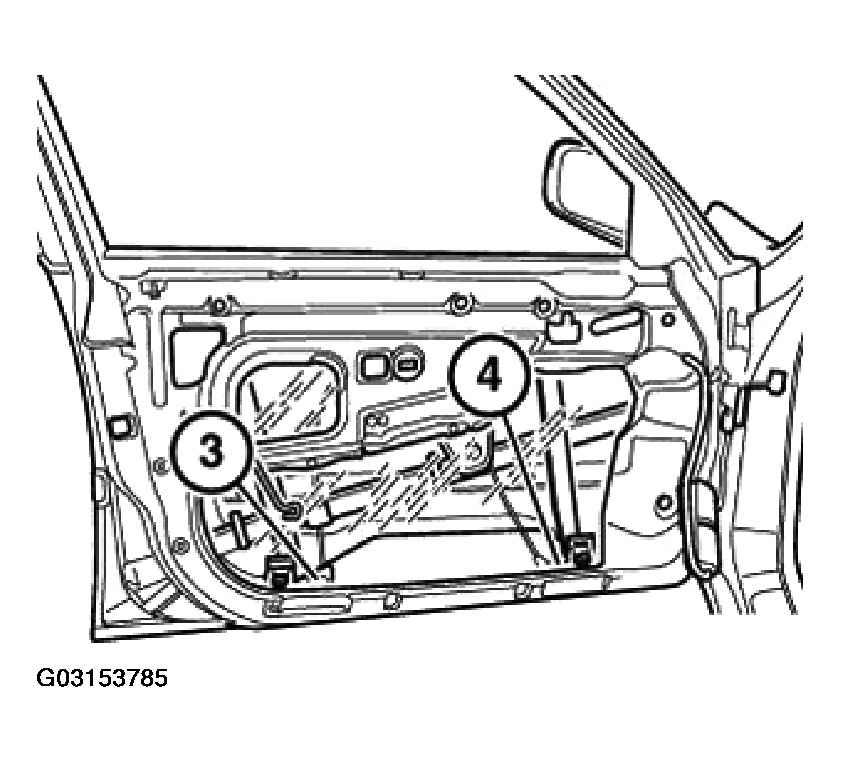

1. Lower door window down to stop.

Tighten down screws (3) and (4).

Tightening torque, see 51 33 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 540i

Fig 6: Tightening Down Screws (Lower Door Window Down To Stop)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

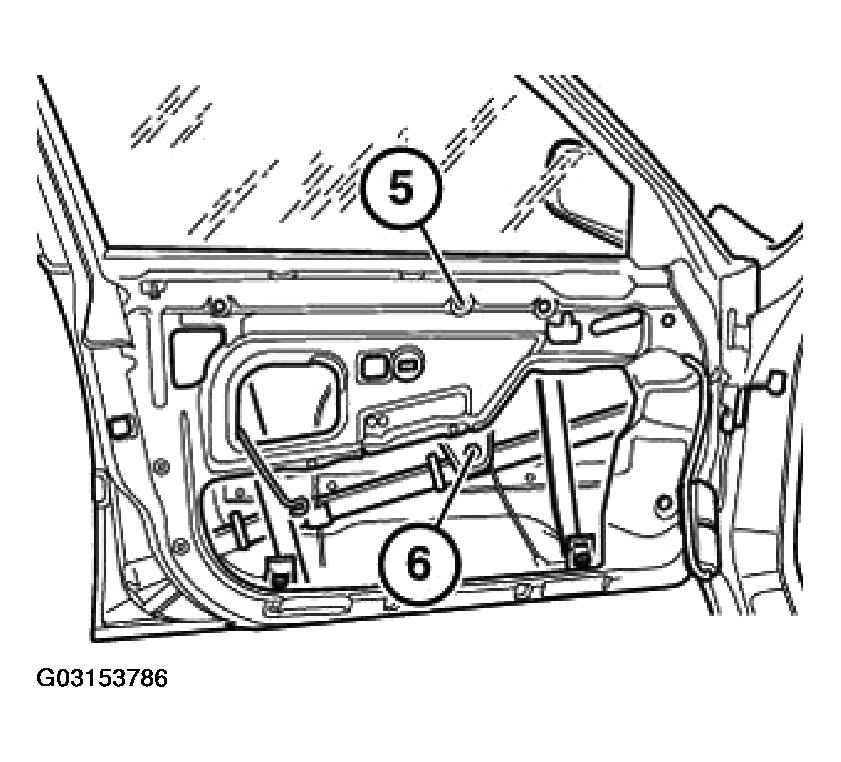

1. Close door window firmly.

Tighten down screws (5) and (6).

Tightening torque, see 51 33 2A in BODY EQUIPMENT - TIGHTENING TORQUES - 540i

Fig 7: Tightening Down Screws (Close Door Window Firmly)

Courtesy of BMW OF NORTH AMERICA, INC.
