51 41 001 Replacing door trim panel, front left or right (Protection)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove door trim,

refer to 51 41 000 REMOVING AND INSTALLING DOOR TRIM PANEL, FRONT LEFT OR RIGHT (PROTECTION) .

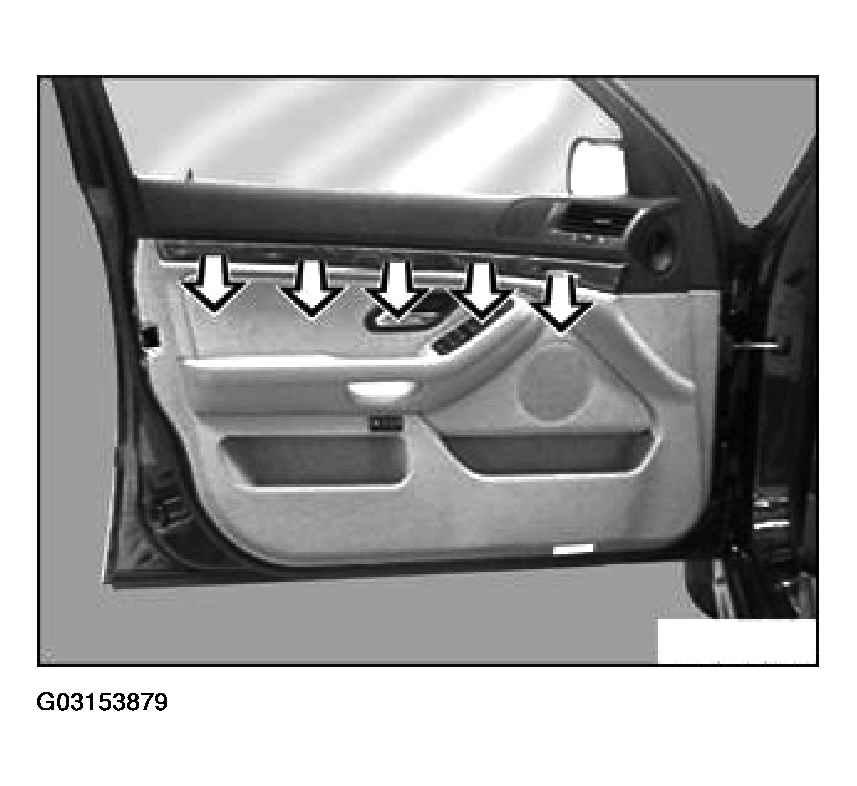

Pull wooden strip backwards to remove.

Fig 1: Pulling Wooden Strip Backwards

G03153879

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

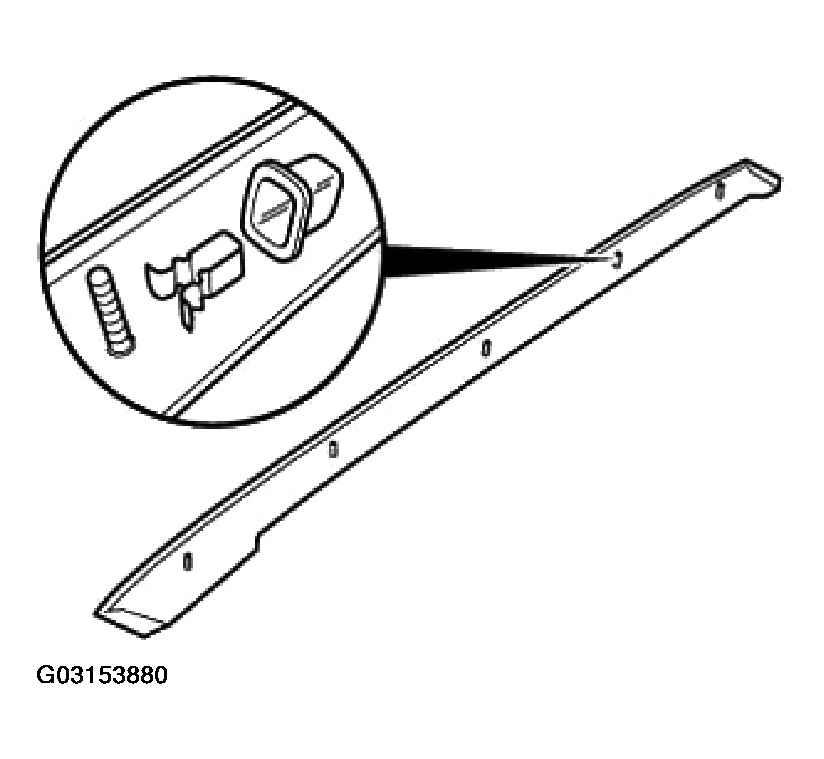

If necessary, replace damaged clips and/or grommets for wooden strip.

Fig 2: Replacing Damaged Clips And/Or Grommets For Wooden Strip

G03153880

Courtesy of BMW OF NORTH AMERICA, INC.

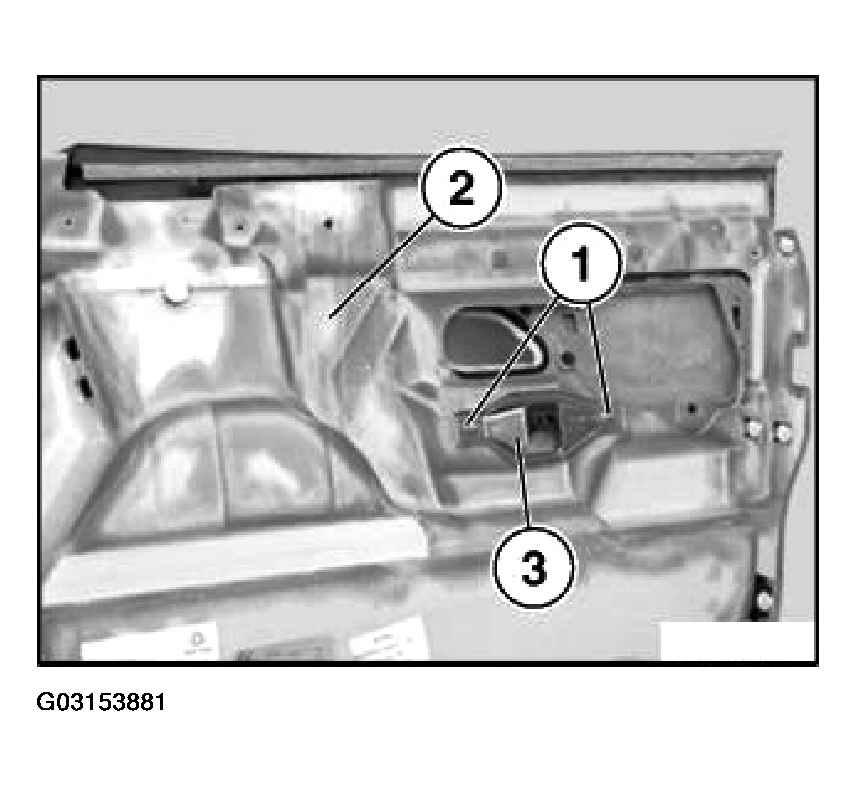

Release nuts (1) and remove protective mat (2) with bracket (3) from stud bolts.

Fig 3: Releasing Nuts And Remove Protective Mat With Bracket From Stud Bolts

G03153881

Courtesy of BMW OF NORTH AMERICA, INC.

Speaker replacement only:

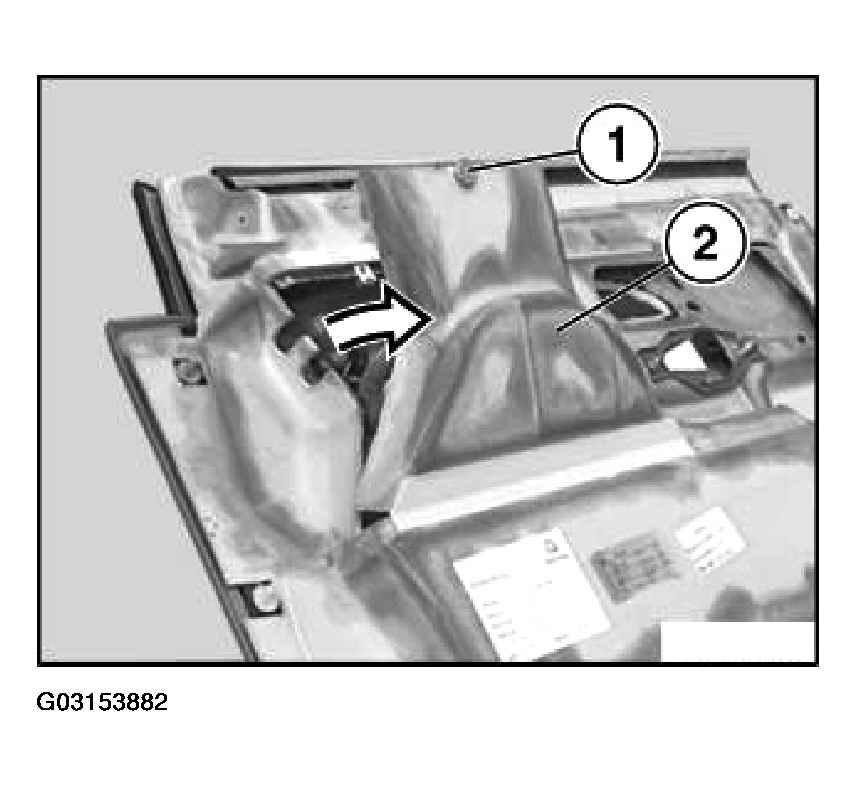

If necessary, release knurled head screw (1) and open flap (2) of protective mat.

Fig 4: Releasing Knurled Head Screw And Open Flap Of Protective Mat

G03153882

Courtesy of BMW OF NORTH AMERICA, INC.

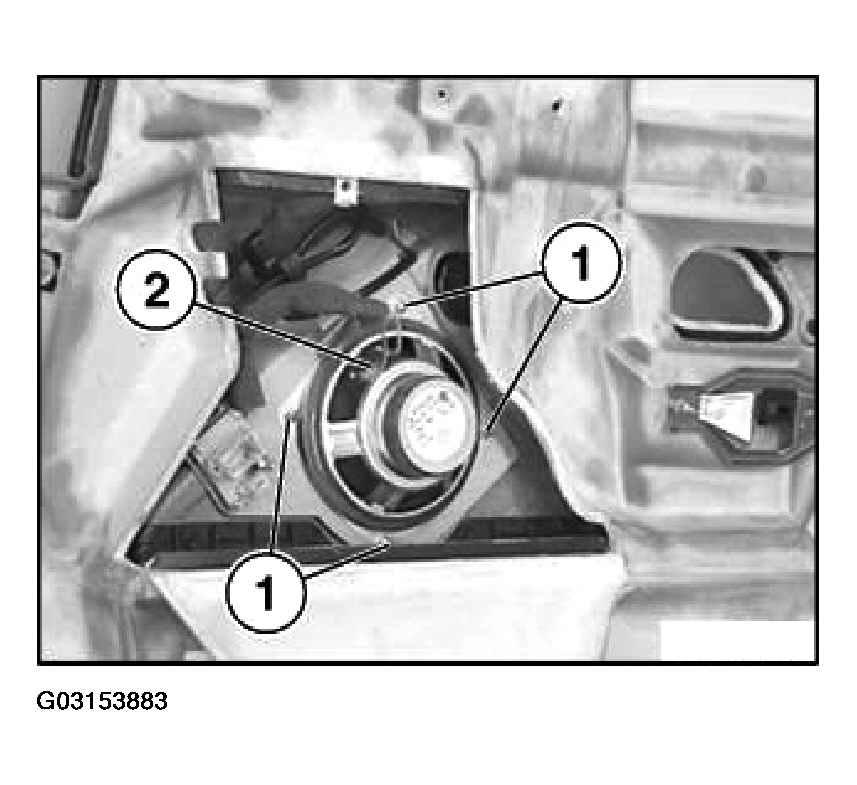

Release nuts (1) and remove speaker unit.

NOTE: Disconnect plug connection (2) to detach speaker and carrier plate.

Installation

Replace self-locking nuts.

Fig 5: Disconnecting Plug Connection To Detach Speaker And Carrier Plate

G03153883

Courtesy of BMW OF NORTH AMERICA, INC.

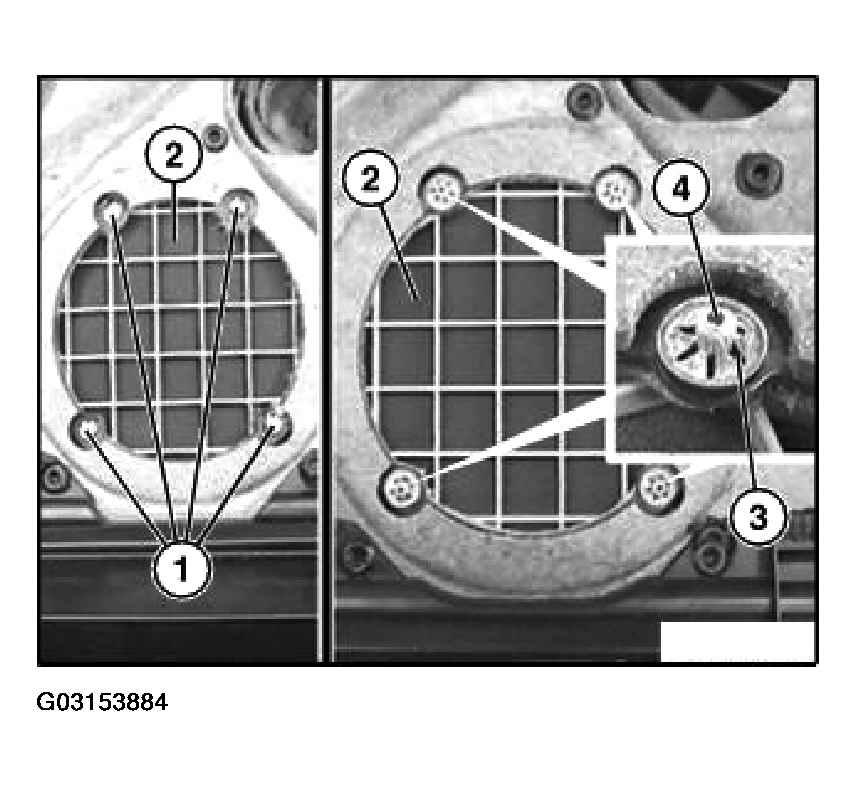

Unfasten plastic welded joints (1) and remove loudspeaker finisher (2).

Installation

Install new loudspeaker finisher (2). Fit retaining washers (3) on the pins (4).

Fig 6: Installing New Loudspeaker Finisher And Fitting Retaining Washers On Pins

G03153884

Courtesy of BMW OF NORTH AMERICA, INC.

Hi-fi speaker replacement only:

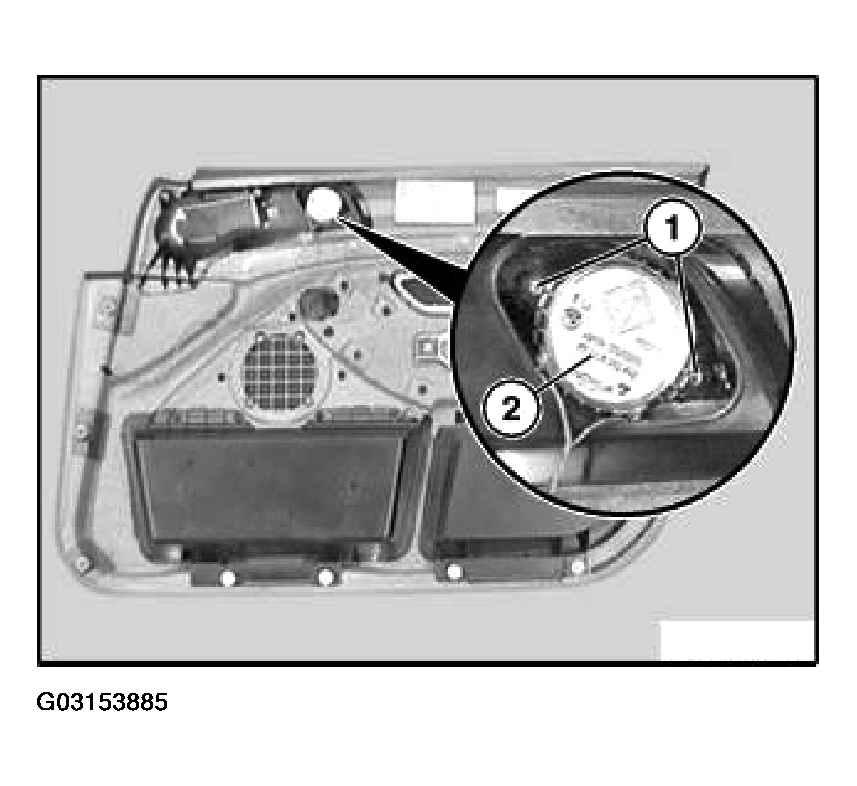

If necessary, release screws (1) and remove speaker (2).

Fig 7: Releasing Screws And Remove Speaker

G03153885

Courtesy of BMW OF NORTH AMERICA, INC.

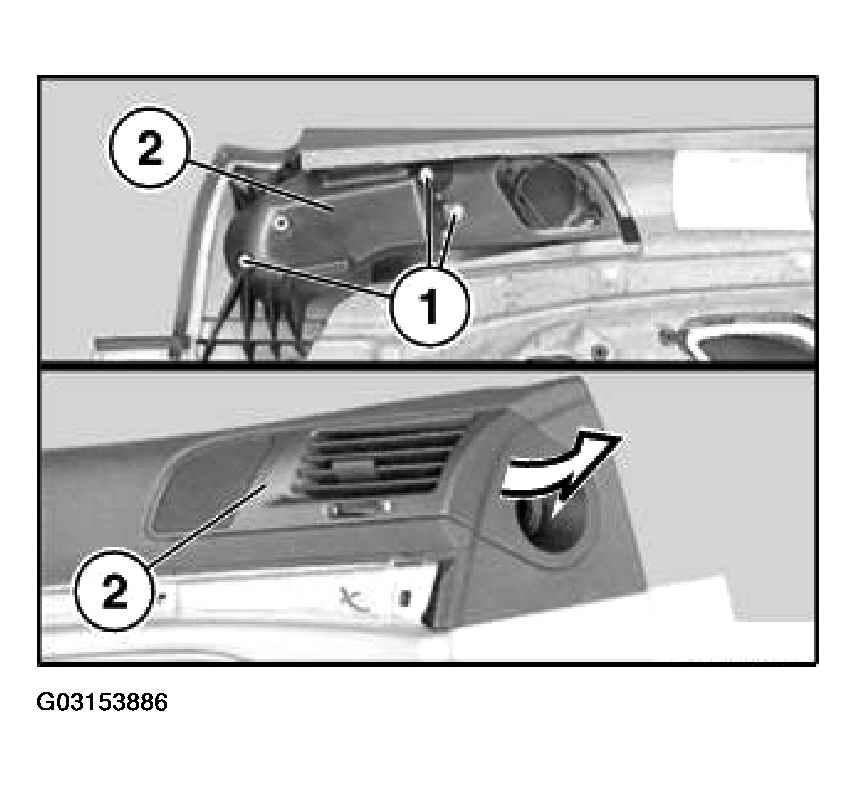

Unfasten screws (1) and lift out fresh air grille (2).

Fig 8: Unfasten Screws And Lift Out Fresh Air Grille

G03153886

Courtesy of BMW OF NORTH AMERICA, INC.
